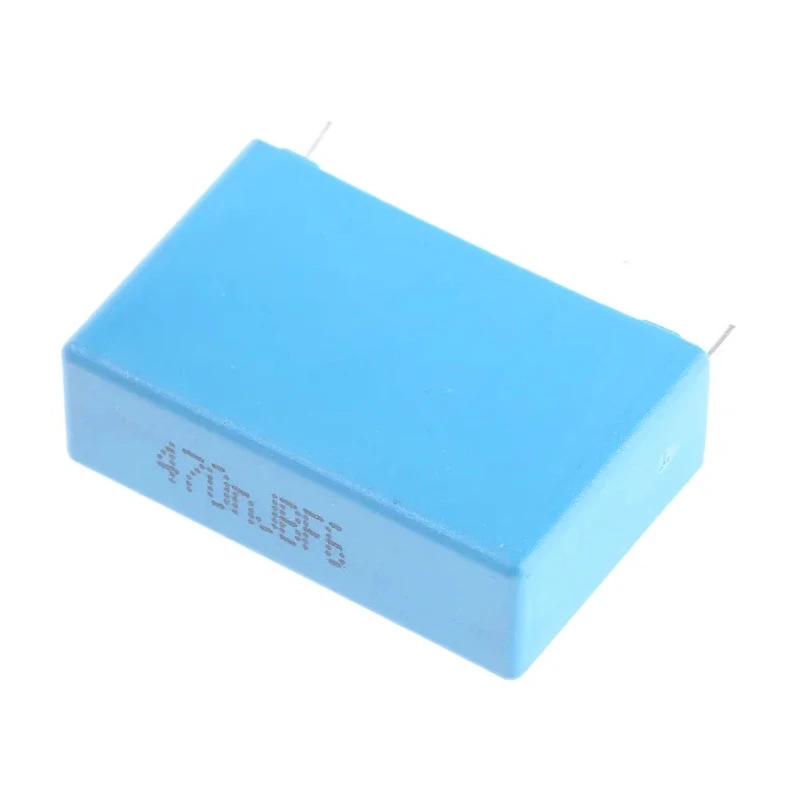

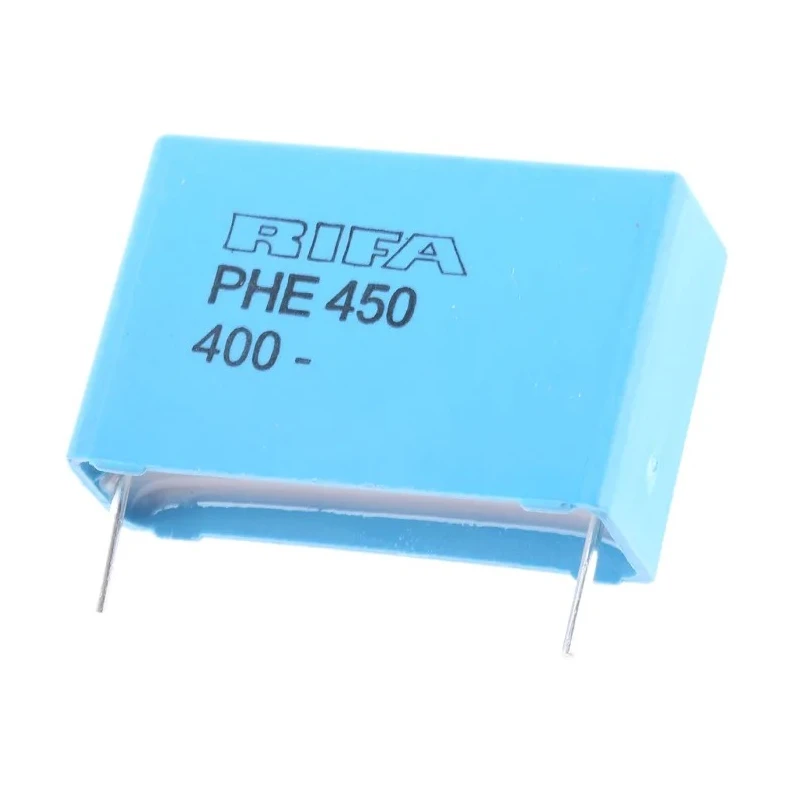

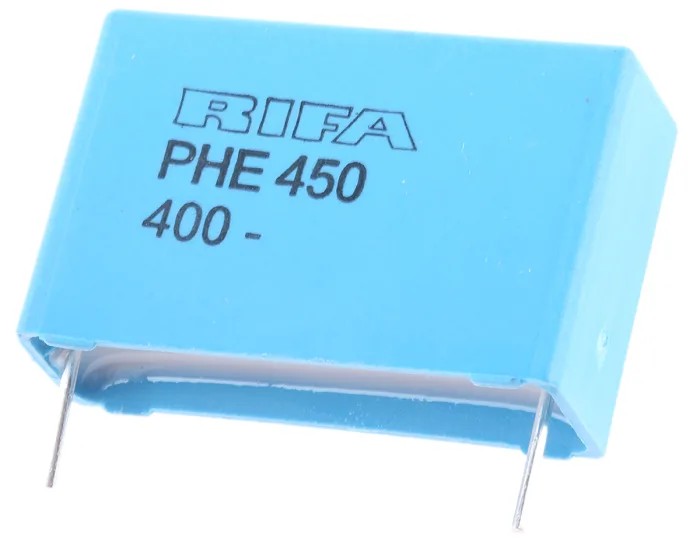

KEMET Film Capacitor Through Hole 470 nF ±5% 400 V dc 180 V ac Radial Lead PHE450
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 20.5mm |
| Length | 31.5mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 10.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 27.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- This capacitor has a capacitance of 470 nF with a tolerance of ±5%.
- Rated DC voltage is 400 V and AC voltage rating is 180 V for reliable performance.
- Constructed with radial terminal leads suitable for through hole mounting.
- Lead pitch is 27.5 mm and leads are 6 mm long with 0.8 mm diameter.
- Operating temperature ranges from -55°C to 105°C, allowing for varied environmental conditions.
- Encapsulated in self-extinguishing UL94 V-0 compliant resin for safety.
- Suitable for use in pulse and snubber circuits, switch mode power supplies, and television deflection circuits.
- RoHS compliant and manufactured in Indonesia.
Product Description
KEMET PHE450 series film capacitor model PHE450 offers a capacitance of 470 nF with a ±5 % tolerance, suitable for demanding electronic applications requiring stable and reliable performance.
This through hole capacitor features a radial terminal design with a lead pitch of 27.5 mm, lead length of 6 mm, and lead diameter of 0.8 mm, optimized for printed circuit board mounting.
It is rated for 400 V DC and 180 V AC, capable of handling high current stress, making it ideal for pulse circuits, snubbing applications, and protection circuits in switch mode power supplies, as well as deflection circuits in televisions.
Constructed from double metallized polypropylene film encapsulated in a self-extinguishing resin meeting UL94 V-0 safety standards, it ensures flame resistance and durability under continuous use.
The capacitor operates reliably over a wide temperature range from -55°C up to 105°C, suitable for industrial electronic environments. The component is RoHS compliant and manufactured in Indonesia, guaranteeing adherence to environmental and quality standards.
This capacitor has a capacitance of 470 nF with a tolerance of ±5%. Rated DC voltage is 400 V and AC voltage rating is 180 V for reliable performance. Constructed with radial terminal leads suitable for through hole mounting.
Lead pitch is 27.5 mm and leads are 6 mm long with 0.8 mm diameter. Operating temperature ranges from -55°C to 105°C, allowing for varied environmental conditions. Encapsulated in self-extinguishing UL94 V-0 compliant resin for safety.
Suitable for use in pulse and snubber circuits, switch mode power supplies, and television deflection circuits. RoHS compliant and manufactured in Indonesia. This product is an essential electronic component widely used in the manufacturing, industrial, and commercial sectors for circuit protection and performance stabilization.
Explore more Film Capacitors and KEMET brand products at EnvMart to find suitable parts for your electronic design and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 470 nF with a tolerance of ±5%.
It is rated for a DC voltage of 400 V and an AC voltage of 180 V.
The operating temperature range is from -55°C to 105°C.
This capacitor is designed for through hole mounting with radial terminal leads.
The dimensions are 31.5 mm in length, 10.5 mm in width, and 20.5 mm in height.
It features a lead pitch of 27.5 mm, a lead length of 6 mm, and a lead diameter of 0.8 mm.
It is constructed from double metallized polypropylene film and encapsulated in a self-extinguishing resin meeting UL94 V-0 safety standards.
It is suitable for use in pulse and snubber circuits, switch mode power supplies, and television deflection circuits.
Yes, this capacitor is RoHS compliant, ensuring it meets environmental standards.
The dissipation factor is 0.0003%.
This product is manufactured in Indonesia.
It is packaged in Tape & Reel format.
