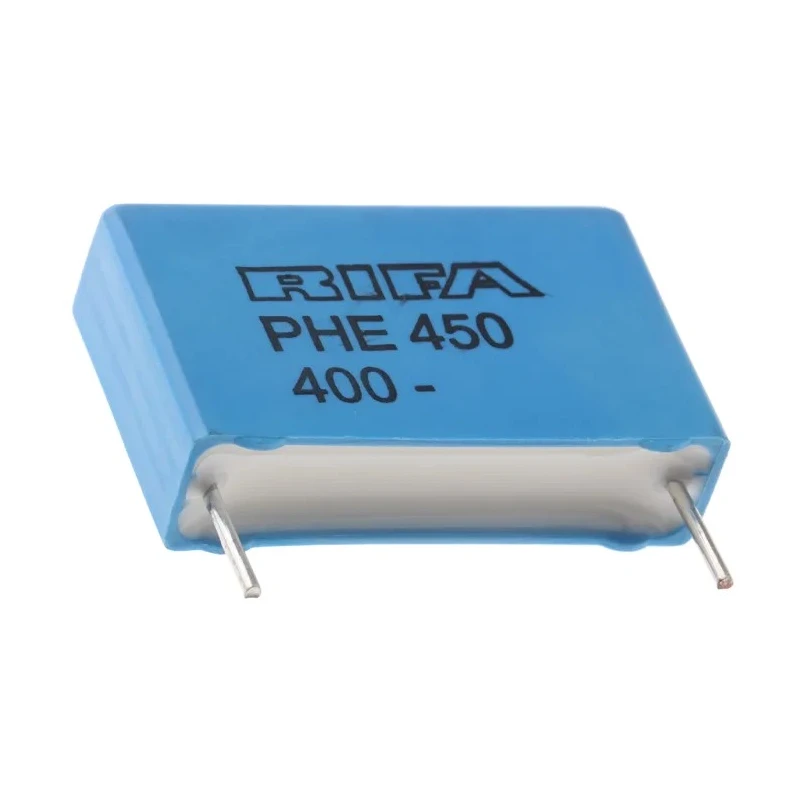

KEMET Film Capacitor Through Hole 220 nF ±5 % 400 V dc 180 V ac PHE450

KEMET PHE450 Film Capacitor, model PHE450, is a high-quality metallized polypropylene film capacitor featuring ±5 % capacitance tolerance and a capacitance value of 220 nF. It is designed for through hole mounting with radial terminals, providing robust mechanical stability and electrical performance in electronic circuits.

This capacitor is rated for 400 V DC voltage and 180 V AC voltage, with a lead pitch of 22.5 mm and lead length of 6 mm. It is encapsulated in a flame retardant resin complying with UL 94 V-0 standards, making it safe for high current stress applications such as snubber and pulse circuits found in switch mode power supplies and television deflection circuits.

Operable in temperatures from -55°C to 105°C, the PHE450 series provides reliable performance across diverse industrial and commercial environments. Key physical dimensions include length 26 mm, width 7 mm, height 16.5 mm, and a lead diameter of 0.8 mm, with a dissipation factor of 0.0003% ensuring minimal energy loss.

This film capacitor is supplied in tape & reel packaging suited for automated assembly lines, supporting efficient manufacturing processes.

Its electrical and mechanical characteristics make it well suited for industrial electronic manufacturing, power electronics, semiconductor circuits, and laboratory instrumentation applications.

Metallized polypropylene film type capacitor ensures high reliability and low losses. Rated DC voltage of 400 V dc and AC voltage of 180 V ac. Capacitance tolerance of ±5 % guarantees consistent electrical performance. Encapsulated in self-extinguishing resin meeting UL 94 V-0 flame retardant standards.

Lead pitch of 22.5 mm with radial terminal type and lead length of 6 mm for secure PCB mounting. Operating temperature range from -55°C to 105°C for versatile environmental conditions. Dimensions: length 26 mm, width 7 mm, height 16.5 mm, lead diameter 0.8 mm.

Dissipation factor is a low 0.0003% ensuring energy efficiency in circuits. Suitable for snubber and pulse circuits, common in power supply and television deflection applications. Explore more Film Capacitors and related electronic components in the Electronics & Electricals category on EnvMart for your industrial and commercial projects.
