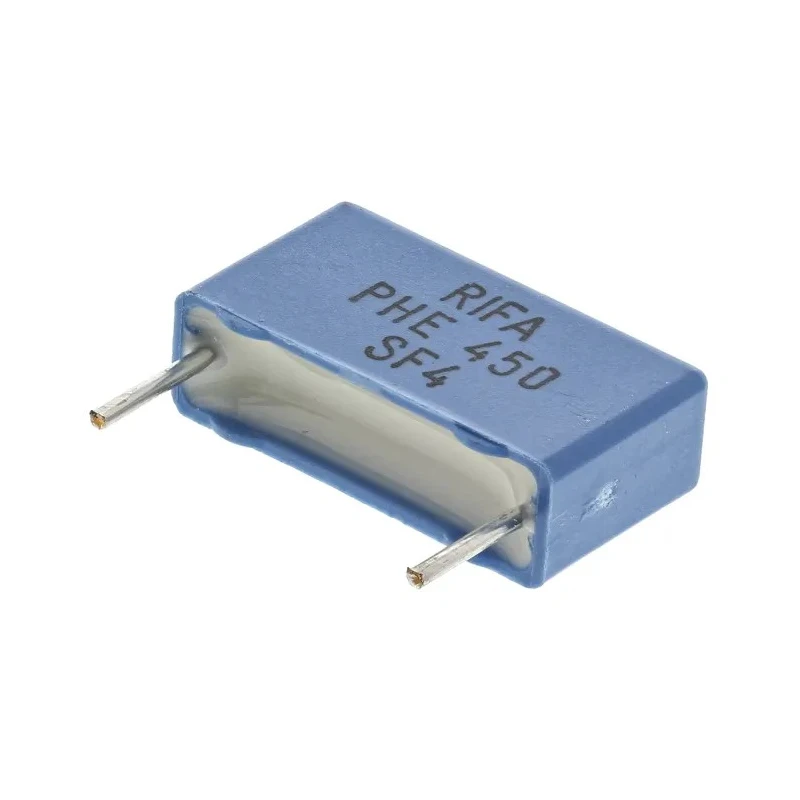

KEMET Film Capacitor 22 nF ±5% 630 V dc 180 V ac Through Hole PHE450

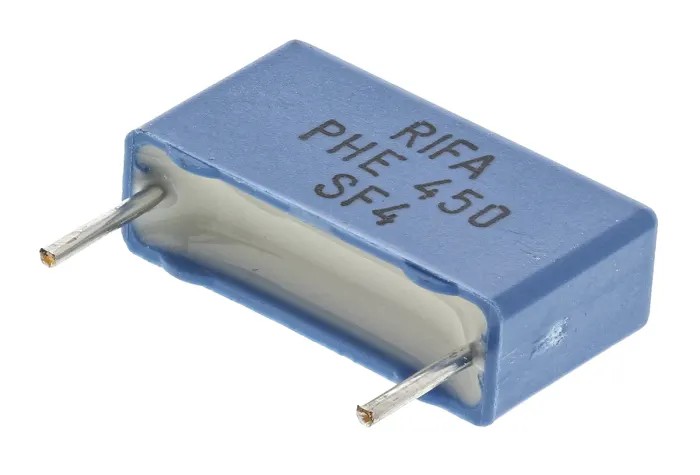

KEMET PHE450 Film Capacitor 22 nF ±5%, rated 630 V DC and 180 V AC, is a high-reliability film capacitor designed for pulse and snubber applications. The device features metallized polypropylene film construction with double metallization encapsulated in a self-extinguishing resin meeting the UL94 V-0 requirements, ensuring operational safety and durability.

These capacitors are engineered to withstand high current stress, ideal for protection circuits in switch mode power supplies and deflection circuits in television sets. Their radial through-hole mount configuration with 15 mm lead pitch and 6 mm lead length facilitates straightforward PCB assembly and outstanding mechanical stability.

Operating over a temperature range from -55°C to 105°C, the capacitor ensures reliable performance in harsh industrial, commercial, and consumer electronics environments. Its precise capacitance tolerance of ±5% guarantees dependable circuit behavior while the minimal dissipation factor (0.0003%) promotes energy efficiency.

The compact form factor dimensions of 18 mm length, 5.5 mm width, and 10.5 mm height allow integration into tightly packed circuitry while maintaining high electrical standards. Compliance with RoHS directives marks this capacitor as environmentally responsible.

Double metallized polypropylene film for superior electrical performance. Self-extinguishing resin encapsulation complying with safety standards. Rated for 630 V DC and 180 V AC voltages. Precise capacitance tolerance of ±5%.

Designed for pulse and snubber circuit applications. Radial terminal and through hole mounting type for robust installation. Wide operating temperature tolerance from -55°C to 105°C. Compact size with 18 mm × 5.5 mm × 10.5 mm dimensions.

Low dissipation factor resulting in efficient operation. RoHS compliant and environmentally friendly component.

This KEMET PHE450 series capacitor is suited for electronics manufacturing, power supply circuits, industrial machinery, and consumer electronics, providing reliable high-voltage filtering and protection. Explore the range of Film Capacitors available in our Electronics Components category at EnvMart for further options.
