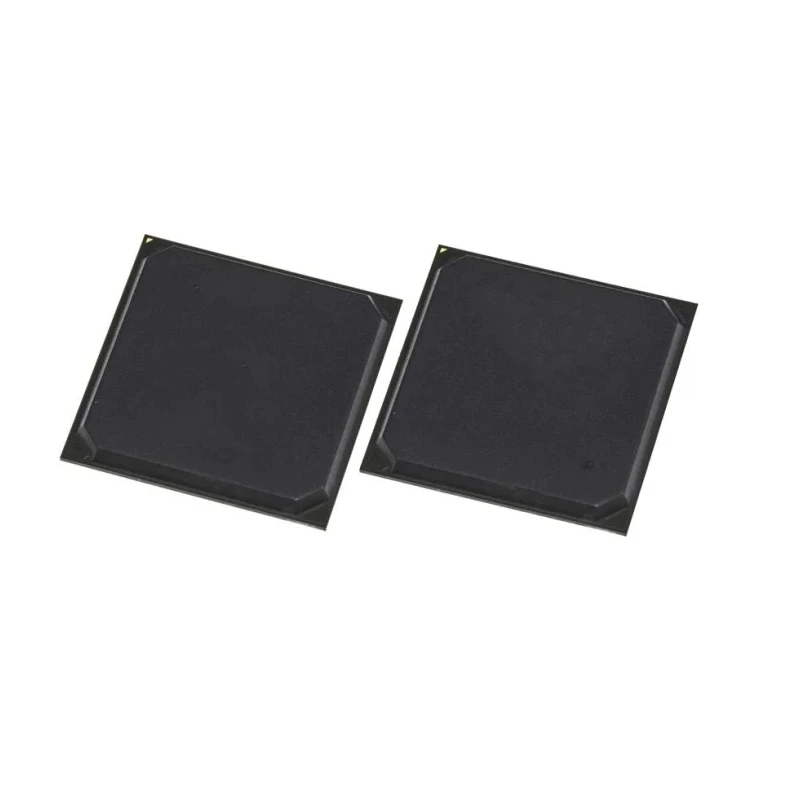

Microchip 16-Channel Push Pull Buffer 105-Ball 9 x 9 mm TFBGA HV53001-E/KWX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | HV53001-E/KWX |
| Output type | Push Pull |
| Input Type | Power Down High Impedance |
| Maximum Operating Temperature | 175°C |
| Package Type | 105-Ball 9 x 9 mm TFBGA |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 16 |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver |
| Minimum Supply Voltage | 2.7V |
Key Features
- This buffer integrates a 16-channel push-pull driver with Return-To-Zero (RTZ) and high impedance (Hi-Z) capabilities.
- Includes a current sensor output for real-time monitoring of driver currents.
- Features an SPI interface with Quad-Latch (2-Bit/Channel) architecture for flexible control.
- Equipped with a power-on reset function to ensure stable start-up conditions.
- Incorporates a DC/DC boost converter with power MOSFET supporting supply voltages from 2.7V to 5.5V.
- Operates reliably in a wide temperature range of -40°C to 175°C, suitable for demanding environments.
- Constructed using a 105-ball 9 x 9 mm Thin Fine-Pitch Ball Grid Array (TFBGA) package for compact PCB footprint.
- Complies with RoHS standards for environmental safety and manufacturing quality.
Product Description
Microchip HV53001-E/KWX 16-Channel Push Pull Buffer in a 105-Ball 9 x 9 mm TFBGA package is a high-performance integrated driver solution that combines multiple functionalities ideal for industrial, laboratory, and advanced electronic designs.
The device consists of three main operational blocks: a high voltage driver capable of driving up to 16 channels with push-pull outputs and Return-To-Zero (RTZ) plus high impedance state, an SPI interface featuring a Quad-Latch (2-bit per channel) architecture for precise channel control, and a DC/DC boost controller with an integrated power MOSFET to ensure stable power delivery across 2.7V to 5.5V input supply voltages.
The HV53001-E/KWX features a current sensor output to provide diagnostic feedback and operational monitoring, enhancing reliability and system integration. It also includes a power-on reset function to maintain stable startup performance, which is critical for embedded and automated systems.
Capable of operating over an extended temperature range from -40°C to 175°C, this buffer IC is suitable for harsh industrial environments. Its compact 105-ball Thin Fine-Pitch Ball Grid Array (TFBGA) package with a 9 x 9 mm dimension minimizes PCB area utilization while supporting advanced electronic system design.
The device is RoHS compliant, ensuring environmentally friendly manufacturing without hazardous substances, which is essential for regulatory adherence in modern electronics production.
This buffer IC supports driving multiple automotive, industrial, and embedded system applications where robust output buffering and control are required. Its combination of high precision, multi-channel capability, and integrated power management allows system designers to optimize performance and device footprint.
Widely applicable in electronic components, power connectors, and semiconductor logic IC integration scenarios.
Explore more related semiconductor Buffers and logic ICs within EnvMart’s comprehensive Electronics & Electricals category to find compatible parts for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
It operates with supply voltages ranging from 2.7V to 5.5V.
This buffer supports a total of 16 channels.
It provides a push-pull output type.
The buffer is packaged in a 105-Ball 9 x 9 mm Thin Fine-Pitch Ball Grid Array (TFBGA).
Yes, it complies with RoHS standards for environmental safety.
The minimum operating temperature is -40°C.
It features an SPI interface with a Quad-Latch (2-Bit/Channel) architecture.
The input type is Power Down High Impedance.
It integrates a high voltage driver with push-pull outputs, Return-To-Zero (RTZ), and high impedance capabilities, along with a current sensor output.
The country of origin for this buffer is India.
It is suitable for automotive, industrial, and embedded system applications requiring robust output buffering and control.
