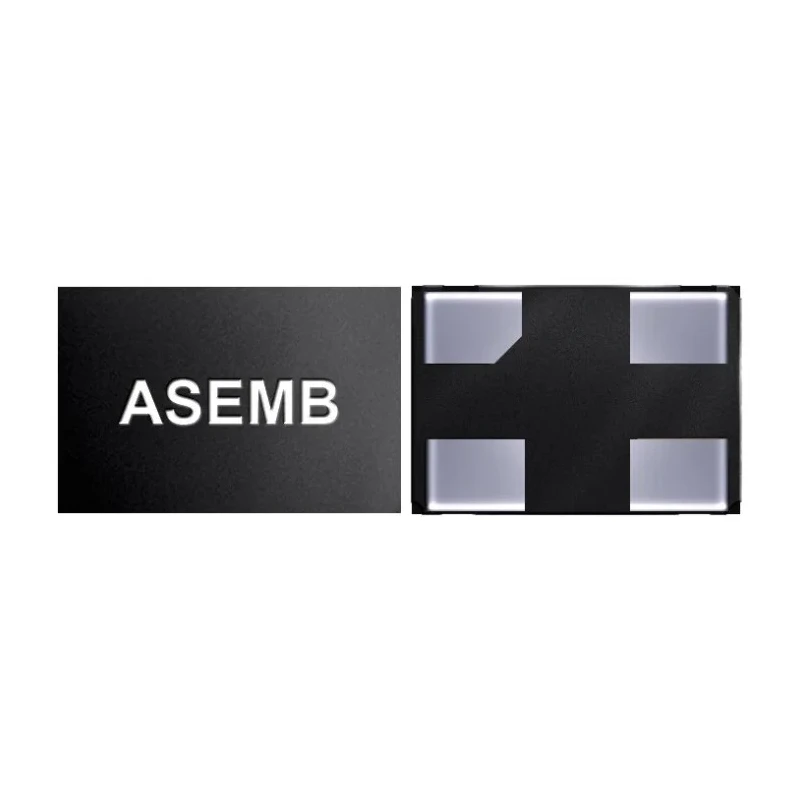

Abracon 74.25 MHz MEMS Oscillator, 4-Pin QFN Surface Mount, ±25 ppm Frequency Stability ASEMB-74.250MHZ-LR-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 3.2mm |
| Model | ASEMB-74.250MHZ-LR-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASEMB |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 74.25MHz |
| Standards/Approvals | RoHS/RoHS II |
| Pin Count | 4 |
| Output Level | LVCMOS |
| Maximum Operating Supply Voltage | 3.3V |
| Minimum Operating Supply Voltage | 1.8V |
Key Features
- The oscillator operates at a maximum output frequency of 74.25 MHz.
- It features low power consumption suitable for portable electronic devices.
- Operating voltage ranges from 1.8V to 3.3V for versatile applications.
- Device package is a compact 3.2mm x 2.5mm QFN with a height of 0.85mm.
- Functional temperature range spans -40°C to 85°C for industrial and automotive environments.
- Output level is LVCMOS compatible for easy interface integration.
- Packaging is tape & reel, facilitating automated assembly.
- Designed for use in consumer electronics, automotive, military, and industrial equipment.
Product Description
Abracon ASEMB-74.250MHZ-LR-T is a MEMS oscillator designed for precise frequency generation at 74.25 MHz. It comes in a low-profile 4-pin QFN surface mount package measuring 3.2mm length, 2.5mm width, and 0.85mm height. The oscillator offers frequency stability of ±25 ppm, ensuring accuracy in demanding applications.
This oscillator supports supply voltages from 1.8V to 3.3V and operates efficiently with low power consumption, making it ideal for portable and battery-powered devices. It is suitable for operating temperatures from -40°C to +85°C, covering a wide range of industrial and automotive conditions.
The device outputs LVCMOS levels and is RoHS and RoHS II compliant, ensuring environmental and safety standards. It is commonly used in applications such as CCD clocks for VTR cameras, equipment connected to PCs, consumer electronics like MP3 players and gaming devices, and industrial environments exposed to vibrations, shocks, and humidity.
Its compact QFN package enables space-saving PCB layouts, and tape and reel packaging supports automated pick-and-place assembly processes. Maximum output frequency of 74.25 MHz with high precision. Extensive operating temperature range from -40°C to 85°C.
Low power consumption suitable for mobile and portable electronics. Compact 4-pin QFN surface mount package. Wide operating voltage range from 1.8V to 3.3V. RoHS and RoHS II compliant for environmentally safe use. Applications include consumer electronics, industrial equipment, automotive, and military.
This Abracon MEMS Oscillator combines small size, robust performance, and precision frequency control to meet a broad spectrum of industrial and commercial requirements. Explore more MEMS Oscillators and related electronic components at EnvMart for comprehensive sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this oscillator is 74.25 MHz.
It operates within a voltage range of 1.8V to 3.3V.
The functional temperature range spans from -40°C to 85°C.
This oscillator outputs LVCMOS levels, allowing for easy interface integration.
The dimensions of the package are 3.2mm in length, 2.5mm in width, and 0.85mm in height.
It is packaged in tape and reel format, which facilitates automated assembly processes.
Yes, it is RoHS and RoHS II compliant, ensuring it meets environmental safety standards.
It is commonly used in consumer electronics, automotive, military, and industrial equipment.
This model features a 4-pin configuration.
It is designed for low power consumption, making it suitable for portable and battery-powered devices.
This oscillator belongs to the ASEMB series.
The country of origin for this oscillator is India.
