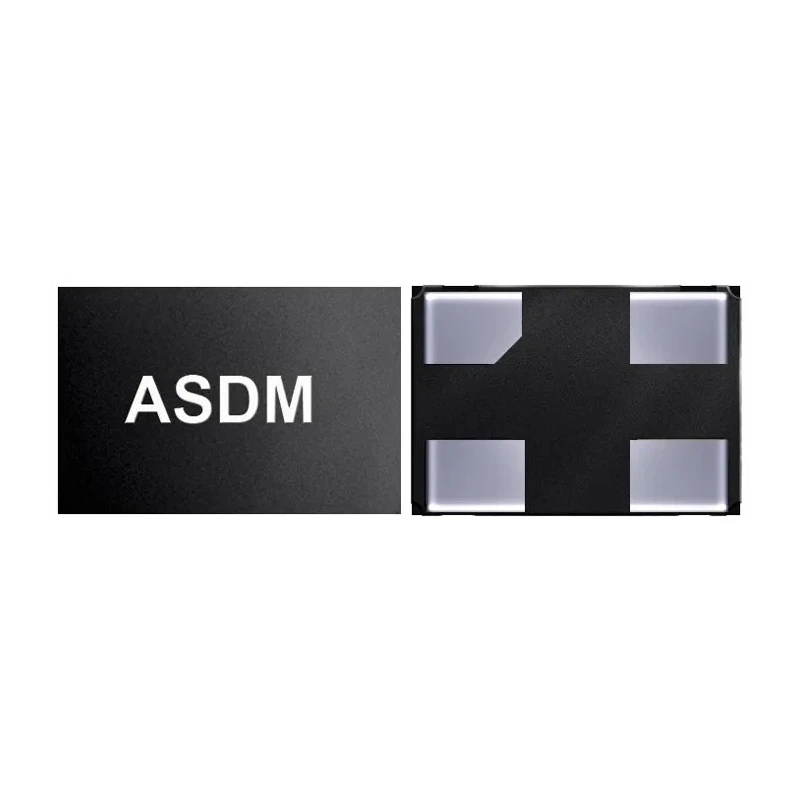

Abracon 12 MHz MEMS Oscillator 4-Pin Surface Mount LVCMOS Output ±50 ppm ASDM1-12.000MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 2.5mm |
| Model | ASDM1-12.000MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ASDM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 12MHz |
| Standards/Approvals | RoHS/RoHS II |
| Pin Count | 4 |
| Output Level | LVCMOS |
| Maximum Operating Supply Voltage | 3.3V |
| Minimum Operating Supply Voltage | 1.8V |
Key Features
- Operates over a wide supply voltage range from 1.8V to 3.3V.
- Wide operating temperature range from -40°C to 85°C suitable for industrial applications.
- Compact dimensions of 2.5mm length, 2mm width, and 0.85mm height for space-constrained designs.
- Low power consumption ideal for portable and battery-powered electronics.
- Surface mount type with 4 pins facilitates automated PCB assembly.
- Meets RoHS/RoHS II compliance for environmental safety.
- Suitable for applications including computers, portable electronics, consumer devices, and industrial equipment.
Product Description
Abracon ASDM1-12.000MHZ-LC-T is a precision 12 MHz MEMS oscillator delivering reliable LVCMOS output in a small 4-pin surface mount QFN package. Designed for applications requiring exceptional stability and compact size, it operates over a 1.8 to 3.3V supply voltage range with frequency stability of ±50 ppm.
This oscillator supports a broad temperature range from -40°C to 85°C, making it well suited for various industrial, automotive, military, and consumer electronics environments. Its low power consumption enhances performance in portable and battery-operated devices such as MP3 players, game consoles, and DVRs.
The compact form factor measures just 2.5mm in length, 2mm in width, and 0.85mm in height, allowing integration into densely packed PCB layouts using automated surface mount technology. Tape and reel packaging facilitates high-volume manufacturing assembly processes.
Applications include CCD clocks for VTR cameras, computer peripherals, portable electronics, consumer TVs and DVRs, and equipment operating in vibrant, shock-prone, and humid industrial or military settings. The device complies with RoHS and RoHS II environmental standards, ensuring it meets directives for hazardous substances.
Operates within an ambient temperature range of -40°C to 85°C. Output level is LVCMOS, suitable for modern digital electronics. Has 4 pins configured for surface mount assembly. Compact QFN plastic package enhances mechanical stability and heat dissipation.
Frequency stability of ±50 ppm ensures timing precision. Wide power supply range from 1.8V to 3.3V. Environmental compliance with RoHS and RoHS II directives.
This MEMS oscillator is ideal for use in industrial tools, laboratory equipment, communications electronics, consumer devices, and automotive electronics. It is a cost-effective alternative to traditional crystal oscillators requiring lower profile and vibration resistance.
Explore more MEMS Oscillators and related electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this model is 12 MHz.
It operates over a supply voltage range from 1.8V to 3.3V.
The oscillator supports an operating temperature range from -40°C to 85°C.
The output level of this unit is LVCMOS, suitable for modern digital electronics.
This model measures 2.5mm in length, 2mm in width, and 0.85mm in height.
It has 4 pins configured for surface mount assembly.
The oscillator is packaged in tape and reel format, facilitating high-volume manufacturing assembly processes.
It complies with RoHS and RoHS II environmental standards, ensuring it meets directives for hazardous substances.
This oscillator is suitable for applications including computers, portable electronics, consumer devices, and industrial equipment.
The series name of this model is ASDM.
It features low power consumption, making it ideal for portable and battery-powered electronics.
This unit utilizes a surface mount type, which facilitates automated PCB assembly.
