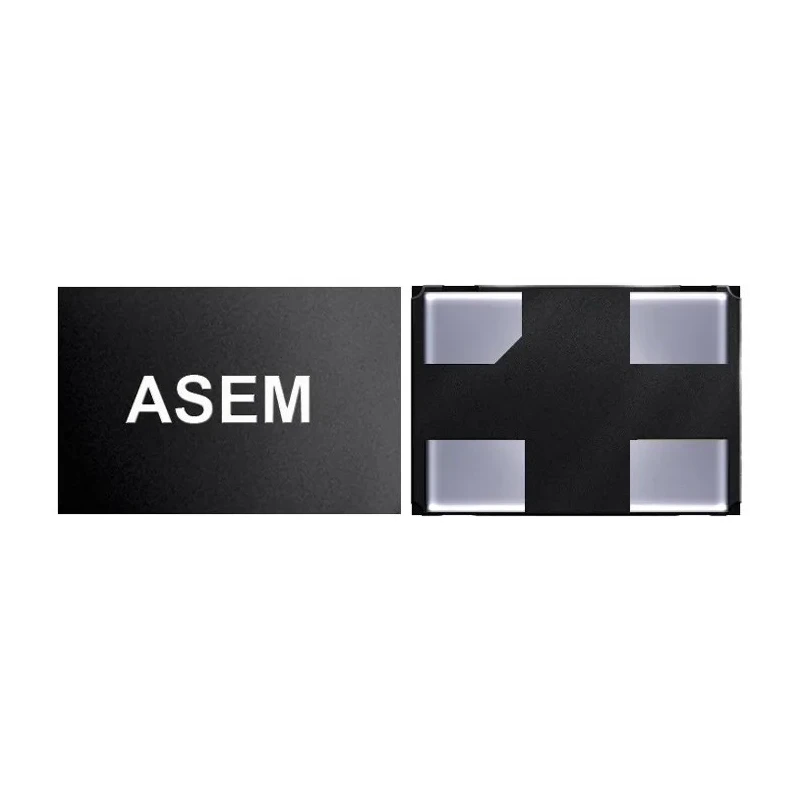

Abracon 16 MHz MEMS Oscillator, 4-Pin QFN, ±100 ppm, Surface Mount ASEM1-16.000MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 3.2mm |
| Model | ASEM1-16.000MHZ-LC-T |
| Packaging | 110 pieces per Tube |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASEM |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 16MHz |
| Standards/Approvals | RoHS, RoHS II, ISO9001-2015 |
| Pin Count | 4 |
| Output Level | CMOS |
| Maximum Operating Supply Voltage | 4V |
| Minimum Operating Supply Voltage | -0.3V |
Key Features
- Delivers a maximum output frequency of 16 MHz with CMOS output level.
- Wide operating temperature range from -40°C to +85°C for industrial applications.
- Low power consumption design for energy-efficient circuits.
- Surface mount QFN package with 4 pins for easy PCB integration.
- Operating supply voltage from -0.3V to 4V supports various system requirements.
- Manufactured in compliance with RoHS, RoHS II, and ISO9001-2015 standards.
- Ideal for portable electronics, industrial equipment, and consumer devices requiring stable clock signals.
Product Description
The Abracon ASEM1-16.000MHZ-LC-T is a 16 MHz MEMS oscillator designed for precision timing applications requiring compact size and high stability. It features a 4-pin QFN surface mount package with a compact form factor of 3.2mm by 2.5mm by 0.85mm, making it suitable for integration into space-constrained electronic designs.
This oscillator provides a stable CMOS output signal at 16 MHz frequency with a frequency stability of ±100 ppm across a wide operating temperature range from -40°C to +85°C. With a low operating supply voltage starting from -0.3V up to a maximum of 4V, it ensures versatility across different power domains.
The device is ideal for applications in CCD clocks for VTR cameras, computer peripherals, portable electronics such as MP3 players and gaming devices, consumer electronics like TVs and DVRs, and challenging industrial environments where vibration, shock, and humidity resistance are paramount. Additionally, it suits automotive and military electronics demanding robust performance.
It is manufactured in accordance with international environmental and quality standards including RoHS, RoHS II, and ISO9001-2015, ensuring compliance and reliability. The compact QFN plastic package offers a low profile and ease of PCB assembly.
Maximum output frequency: 16 MHz with CMOS output. Frequency stability of ±100 ppm over temperature range. Extended operating temperature from -40°C to +85°C. Low power consumption suitable for portable and battery-powered devices.
Compact 4-pin QFN surface mount package for space savings. Wide operating voltage range supports various system levels. Conforms to RoHS and ISO9001-2015 standards for quality and environmental safety. Applications include industrial equipment, consumer electronics, automotive, and military use.
This product is part of the Abracon ASEM series MEMS oscillators, widely used for replacing traditional crystal oscillators to offer enhanced stability and shock resistance. It supports efficient clock timing solutions in demanding environments to improve system performance.
Explore more MEMS Oscillators and precision timing components on EnvMart for industrial, electronics manufacturing, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this model is 16 MHz with a CMOS output level.
It operates within a temperature range of -40°C to +85°C, making it suitable for industrial applications.
The QFN package dimensions are 3.2mm in length, 2.5mm in width, and 0.85mm in height.
The operating supply voltage ranges from -0.3V to a maximum of 4V.
This model features a 4-pin configuration, suitable for surface mounting.
It is manufactured in compliance with RoHS, RoHS II, and ISO9001-2015 standards.
It provides a stable CMOS output signal.
This oscillator is ideal for applications in portable electronics, industrial equipment, consumer devices, and automotive electronics.
The product is packaged with 110 pieces per tube.
It belongs to the ASEM series of MEMS oscillators.
The frequency stability is ±100 ppm across the specified temperature range.
The country of origin for this model is India.
