ROHM Non-Inverting CMOS Buffer 5-Pin SSOP-5 1 Channel 1.65-5.5V BD7LS125G-CTL

Free Delivery in India | Lowest Global Shipping Charges

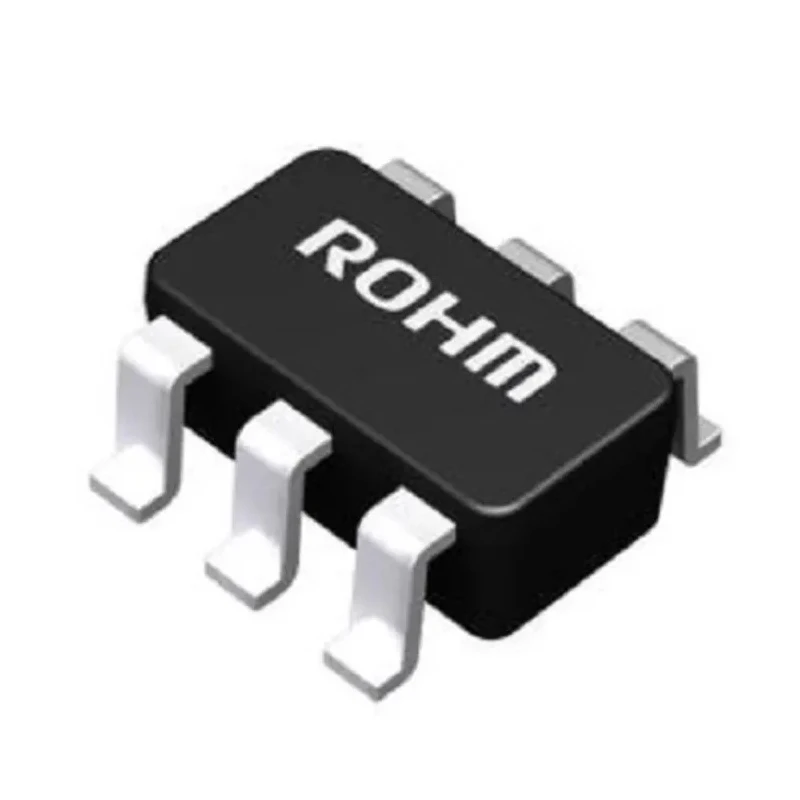

ROHM Non-Inverting CMOS Buffer 5-Pin SSOP-5 1 Channel 1.65-5.5V BD7LS125G-CTL

Name: ROHM Non-Inverting CMOS Buffer 5-Pin SSOP-5 1 Channel 1.65-5.5V BD7LS125G-CTL
Brand: ROHM
SKU: 340958
Price: 0.23 USD
Availability: InStock



Category Buffers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	2.8mm
Length	2.9mm
Model	BD7LS125G-CTL
Mount Type	PCB
Output type	CMOS
Series	BD7LS07G
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SSOP-5
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Logic Function	Buffer
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	24mA
Maximum Propagation Delay Time @ CL	10ns
Supply Current	10μA

Key Features

Operates with a minimum supply voltage of 1.65V and maximum voltage of 5.5V.
Single non-inverting buffer channel ideal for PCB mounting.
5-pin SSOP-5 package with CMOS input and output types.
Maximum propagation delay time of 10 nanoseconds for efficient signal buffering.
Supports automotive standard AEC-Q100 ensuring reliability in harsh environments.
Operating temperature range from -40°C to 125°C for versatile industrial use.
Low supply current of 10 microamperes reduces power consumption.
Output tolerant to support partial power-down mode operation.

Product Description

ROHM BD7LS125G-CTL is a precision non-inverting CMOS buffer featuring a 5-pin SSOP-5 package designed for reliable operation in industrial and automotive applications. This buffer IC operates efficiently within a supply voltage range of 1.65V to 5.5V, making it suitable for a wide variety of electronic circuits requiring signal conditioning.

With a single buffer channel, it supports a non-inverting logic function with CMOS input and output types. Its compact 5-pin SSOP package with a height of 2.8mm and length of 2.9mm fits well in space-constrained PCB layouts.

The device supports automotive standard AEC-Q100, ensuring robustness against automotive stress conditions. It features a maximum propagation delay time of 10 nanoseconds, enabling high-speed digital signal buffering.

Designed for low power consumption, it operates with a minimal supply current of only 10 microamperes and provides output tolerance to allow partial power-down modes to protect the output circuitry.

The operating temperature range from -40°C up to 125°C ensures stable performance under extreme environmental conditions. Operates from 1.65 to 5.5 volts supply for flexible usage. Single channel non-inverting buffer suitable for PCB mounting.

Supports automotive quality standards with AEC-Q100 certification. Low power consumption with only 10μA supply current. Output tolerant design aids in power management. Compact SSOP-5 package optimized for efficient PCB layout.

Wide operating temperature range from -40°C to 125°C. 10 nanoseconds propagation delay for reliable signal timing. Complies with RoHS to meet environmental directives. Suitable for automotive, industrial, and communication systems.

This non-inverting CMOS buffer from ROHM is ideal for applications in automotive electronics, industrial controls, communication systems, and general-purpose buffering requirements where low power, high-speed, and reliability are critical.
