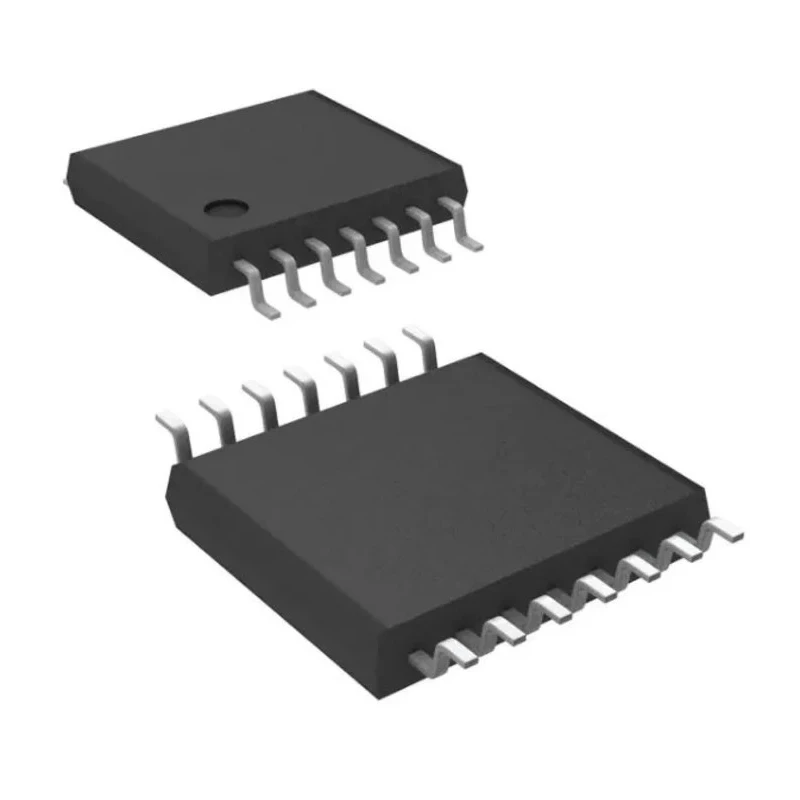

STMicroelectronics Operational Amplifier 4 MHz 14-Pin 36V TSSOP TL084IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | TL084IPT |
| Width | 4.48mm |
| Mount Type | Surface |
| Series | TL084I |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 100 pA |
Key Features
- Features a gain bandwidth product of 4 MHz for high-speed signal processing.
- Operates at a supply voltage range between 3V and 36V for versatile applications.
- Includes 4 independent amplifier channels integrated in one package.
- Low input bias current of 200 pA ensures minimal signal distortion.
- High slew rate of 16 V/μs supports fast response times.
- Wide operating temperature range from -40°C to 125°C for industrial reliability.
- Input offset voltage of 10 mV and low input offset current of 100 pA improve accuracy.
- RoHS compliant, ensuring environmental safety and regulatory compliance.
Product Description
STMicroelectronics TL084IPT Operational Amplifier is a high-speed, JFET input quad operational amplifier with high voltage JFET and bipolar transistors integrated into a monolithic IC in a compact 14-pin TSSOP surface mount package.
It offers a gain bandwidth product of 4 MHz and supports a broad supply voltage range from 3V minimum up to 36V maximum, making it suitable for various industrial, laboratory, and embedded electronics applications.
The device features low input bias current of 200 pA and input offset current of 100 pA, facilitating high precision signal amplification with minimal error. Its high slew rate of 16 V/μs enhances capability for high-speed response in signal processing tasks.
The Operational Amplifier is designed for robust performance with input common-mode voltage range extending to VCC+ and differential voltage range, internal frequency compensation, latch-up free operation, and output short-circuit protection for reliability in complex electronic circuits.
Operating temperature spans from -40°C to 125°C, suitable for harsh environments in automotive, industrial control, and communications equipment. Compliance with RoHS standards ensures environmental responsibility.
Gain bandwidth product of 4 MHz supports fast signal amplification. Broad supply voltage compatibility from 3V to 36V enhances design flexibility. Low input bias and offset currents improve measurement accuracy. Compact 14-pin TSSOP surface mount package for space efficient PCB layout.
High slew rate of 16 V/μs for quick signal changes. Robust design includes internal frequency compensation and output short-circuit protection. Wide operating temperature range from -40°C to 125°C ensures suitability for demanding applications.
RoHS compliant for restricted hazardous substances. Ideal for industrial, laboratory, communications, and automotive electronics. Explore the full range of semiconductor and amplifier solutions in the Electronics & Electricals category on EnvMart to find the most suitable components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 4 MHz, enabling high-speed signal processing capabilities.
It operates within a supply voltage range of 3V to 36V, providing versatility for various applications.
This model includes 4 independent amplifier channels integrated into one package.
The input bias current is 200 pA, which helps to minimize signal distortion.
The maximum operating temperature for this device is 125°C, making it suitable for harsh environments.
The slew rate is 16 V/μs, which supports fast response times in signal processing tasks.
The input offset voltage is 10 mV, contributing to improved accuracy in signal amplification.
This operational amplifier comes in a compact 14-pin TSSOP package with dimensions of 5.1 mm in length, 4.48 mm in width, and 1.2 mm in height.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
The input offset current is 100 pA, which aids in achieving high precision in signal amplification.
It complies with automotive standards AEC-Q100 and AEC-Q3, indicating its suitability for automotive applications.
This operational amplifier is designed for surface mounting, which allows for efficient PCB layout.
