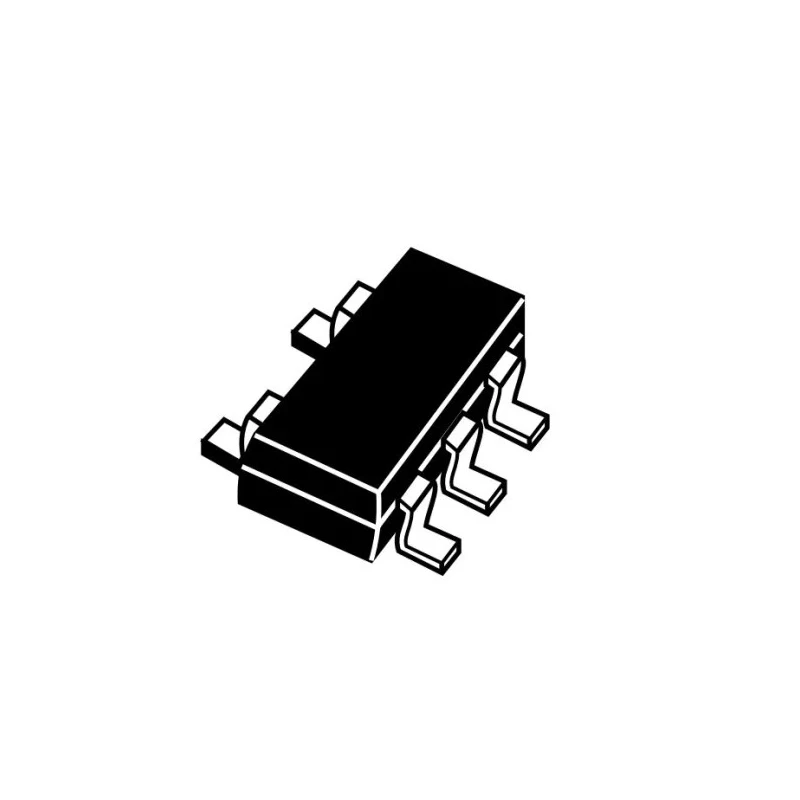

STMicroelectronics Operational Amplifier, 22 MHz Gain Bandwidth, 5-Pin SOT-23 Package, 2.7 V to 36 V Supply TSB7191IYLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSB7191IYLT |
| Width | 1.75mm |
| Mount Type | Surface |
| Low Noise | 12 nV/√Hz |
| Series | TSB7191 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | JEDEC, ANSI/ESD STM5.3.1 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 0 nA |
| Slew Rate | 12V/μs |
| Input Offset Current | 10 nA |
| Extended temperature range | -40 °C to +125 °C |
Key Features
- Rail-to-rail input and output for full signal swing at supply voltage limits.
- Low input offset voltage of 300 μV maximum at 25 °C for precision operation.
- Wide operating temperature range from -40 °C to +125 °C ensured for automotive use.
- Slew rate of 12 V/μs and low noise performance at 12 nV/√Hz.
- Integrated EMI filter and automotive standard compliance AEC-Q3 and AEC-Q100.
- Compact SOT-23 package with 5 pins for surface mounting on PCBs.
- Single channel device ideal for signal conditioning, sensor interfacing, and motor control.
- Stable operation with gain +10/-9 over full voltage range.
Product Description
STMicroelectronics TSB7191IYLT is a high-performance BiCMOS operational amplifier featuring a gain bandwidth product of 22 MHz and a versatile 5-pin SOT-23 surface mount package.
This device operates from a wide single supply voltage range of 2.7 V to 36 V, as well as dual supplies from ±1.35 V to ±18 V, enabling flexibility in various electronic circuit designs.
The amplifier incorporates rail-to-rail input and output stages that maximize dynamic range within the supply voltage limits. An input offset voltage as low as 300 μV at 25 °C ensures high precision in signal amplification tasks.
Designed for industrial and automotive environments, it supports an extended temperature range from -40 °C to 125 °C and complies with automotive standards AEC-Q3 and AEC-Q100, ensuring robust reliability under harsh conditions.
Its low noise characteristics with 12 nV/√Hz voltage noise density and a fast slew rate of 12 V/μs make it suitable for sensitive sensor signal conditioning, motor drives, actuator control, and other precision analog applications.
The built-in EMI filter improves immunity against electromagnetic interference, increasing robustness in challenging electrical environments. Common applications for the TSB7191 series include filters, power supply regulation, motor control, hall effect sensor interface, and resistive transducer amplification.
Rail-to-rail input and output. Low offset voltage: 300 μV maximum at 25 °C. Wide supply voltage range: 2.7 V to 36 V. Low noise: 12 nV/√Hz voltage noise density. Automotive grade compliance: AEC-Q3, AEC-Q100. Integrated EMI filter for noise immunity.
Extended temperature range: -40 °C to +125 °C. Compact 5-pin SOT-23 surface mount package. Discover the full STMicroelectronics range of Operational Amplifiers suitable for industrial, automotive, electronic instrument, and control systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSB7191IYLT features a gain bandwidth product of 22 MHz, making it suitable for various signal amplification tasks.
It operates within a supply voltage range of 2.7 V to 36 V for single supply configurations, and from ±1.35 V to ±18 V for dual supplies.
The maximum operating temperature for this model is 125 °C, allowing it to function effectively in high-temperature environments.
This model is a single channel device, designed for various applications including signal conditioning and sensor interfacing.
The TSB7191IYLT comes in a compact SOT-23 package with 5 pins, suitable for surface mounting on PCBs.
It has a slew rate of 12 V/μs, which contributes to its performance in fast signal applications.
The TSB7191IYLT exhibits low noise characteristics with a voltage noise density of 12 nV/√Hz, making it suitable for sensitive applications.
This operational amplifier complies with automotive standards AEC-Q3 and AEC-Q100, ensuring its reliability in automotive applications.
The input offset voltage is a maximum of 300 μV at 25 °C, allowing for precision in signal amplification tasks.
The minimum operating temperature is -40 °C, enabling its use in low-temperature environments.
This operational amplifier is suitable for applications such as signal conditioning, sensor interfacing, motor control, and power supply regulation.
The TSB7191IYLT is approved under JEDEC and ANSI/ESD STM5.3.1 standards, ensuring compliance with industry requirements.
