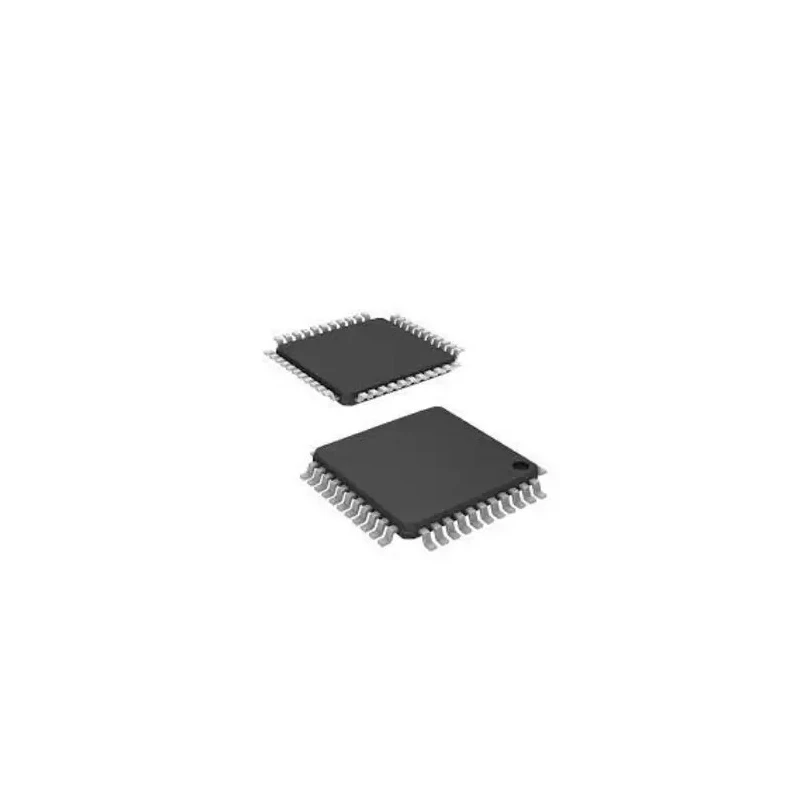

Microchip 16 bit Digital Signal Processor dsPIC33EP64MC204-E/PT, 60 MHz, 64kB FLASH, 44-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 8mm |
| Model | dsPIC33EP64MC204-E/PT |
| Width | 8mm |
| Mount Type | Surface |
| Series | DsPIC33EP |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 60MHz |
| Program Memory Type | FLASH |
| Number of PWM Units | 3 |
| ADC Channels | 2 |
Key Features
- Features a 70 MIPS dsPIC DSC core with DSP and enhanced on-chip peripherals.
- Supports precision motor control systems for brushless DC, permanent magnet, AC induction, and stepper motors.
- Integrated 8kB RAM and FLASH program memory for efficient data processing.
- Operates between -40°C to 85°C with a supply voltage range of 3V to 3.6V.
- Comes in a compact 44-Pin QFN package with 8mm x 8mm dimensions.
- Includes 2 ADC channels and 3 PWM units for versatile signal management.
- Designed with modified Harvard architecture for 16-bit data path and 24-bit wide instructions.
- Meets RoHS compliance and automotive AEC-Q100 standards.
Product Description
Microchip dsPIC33EP64MC204-E/PT is a high-performance 16 bit Digital Signal Processor operating at 60 MHz with 64kB FLASH memory housed in a 44-Pin QFN package. This device integrates a 70 MIPS dsPIC® DSC core enhanced with digital signal processing capabilities and specialized peripheral features.
Designed for advanced motor control applications, it supports brushless DC, permanent magnet synchronous, AC induction, and stepper motors, delivering energy efficiency, noise reduction, extended operational range, and long device life.
The processor uses a modified Harvard architecture with 16-bit wide data paths and 24-bit wide instructions, enabling single-cycle multiply and accumulate, fractional multiply/divide operations, and complex instructions like two 40-bit accumulators with rounding and saturation. It includes 8kB RAM for data storage and operates reliably from -40°C to 85°C.
The device features 2 ADC channels and 3 PWM units for precise signal control, meets RoHS environmental standards, and conforms to automotive AEC-Q100 qualification, ensuring robust automotive-grade performance.
70 MIPS processing core with integrated DSP and enhanced peripherals. 16-bit data path and 24-bit instruction width for efficient computation. 64kB FLASH memory and 8kB RAM for program and data. Surface mount QFN package with dimensions 8mm by 8mm.
Wide operating temperature range from -40°C to 85°C. Support for multiple motor control types including brushless DC and stepper motors. Includes 2 ADC channels and 3 PWM units for flexible signal processing. Automotive standard AEC-Q100 certified and RoHS compliant.
This dsPIC33EP64MC204-E/PT Digital Signal Processor is ideal for industrial, automotive, motor control, and general purpose embedded systems requiring high precision and performance. Enhance your electronic design projects with a reliable, versatile DSP from Microchip available through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the dsPIC33EP64MC204-E/PT is 60 MHz.
It operates reliably within a temperature range of -40°C to 85°C.
This model features 64kB of FLASH program memory for efficient data processing.
It is housed in a compact 44-Pin QFN package with dimensions of 8mm x 8mm.
The dsPIC33EP64MC204-E/PT includes 2 ADC channels for versatile signal management.
It supports brushless DC, permanent magnet synchronous, AC induction, and stepper motors.
This model has an integrated RAM size of 8kB for data storage.
It operates with a supply voltage range of 3V to 3.6V.
The processor includes 3 PWM units for precise signal control.
It is designed with a modified Harvard architecture featuring a 16-bit data path and 24-bit wide instructions.
Yes, it meets RoHS environmental standards and conforms to automotive AEC-Q100 qualification.
The dsPIC33EP64MC204-E/PT is manufactured in India.
