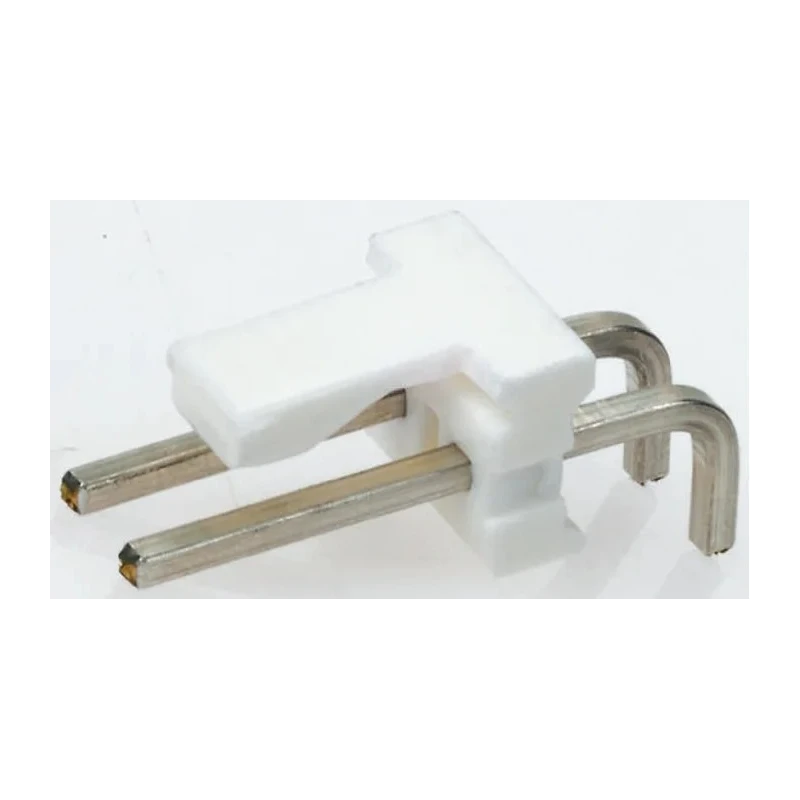

TE Connectivity MTA-156 Series Right Angle Through Hole Pin Header, 5 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 640389-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Model | 640389-5 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Nickel, Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 11.43mm |
Key Features
- Supports a current rating of 7A with a maximum operating voltage of 600V.
- Constructed with glass-filled polyester housing for durable insulation.
- Right angle orientation with through hole mount for versatile PCB assembly.
- Copper alloy contacts plated with nickel and tin for corrosion resistance.
- Operates safely between -55°C and 105°C temperature range.
- Solder termination type with male contact gender and tail pin length of 3.18 mm.
- Mating pin length measures 11.43 mm ensuring secure connections.
- Unshrouded design allows easy mating with matching connectors.
Product Description
TE Connectivity 640389-5 MTA-156 Series Right Angle Through Hole Pin Header features a 3.96 mm pitch and 5 male contacts arranged in a single row, designed for wire-to-board applications and ideal for mass termination with MTA-156 IDC connectors.
The connector housing is made of glass-filled polyester, which provides excellent mechanical strength and resistance to environmental stresses. The male contacts are made from copper alloy and plated with nickel and tin to enhance durability and corrosion resistance.
Designed for through hole mounting with a right angle orientation, this pin header ensures reliable solder connections on PCBs. The contacts have a tail pin length of 3.18 mm and mating pin length of 11.43 mm, accommodating secure mating with corresponding IDC connectors.
This header can operate under temperatures from -55°C to 105°C and handle currents up to 7A at 600V voltage rating, suitable for a wide range of industrial, automotive, consumer electronics, and computer applications.
The unshrouded design combined with a friction lock mechanism provides secure mating connections that are also easy to assemble. The connector is end-to-end stackable, enabling efficient PCB layout and wiring mass termination.
Current rating is 7A for reliable electrical performance. Voltage rating up to 600V ensures wide application suitability. Glass-filled polyester housing offers mechanical strength and insulation. Right angle, through hole mount for versatile PCB designs.
Copper alloy contacts with nickel and tin plating enhance corrosion resistance. Supports operating temperatures from -55°C up to 105°C. Termination by solder and male contact gender for wire-to-board connections. Compact single row with 5 contacts and 3.96 mm pitch spacing.
This pin header is widely used in automotive body and chassis systems, driver information, safety and security systems, computer desktops, notebooks, servers, storage devices, and other consumer electronics, making it a versatile choice for various electronic assembly and manufacturing environments.
Explore the wide range of connectors offered by TE Connectivity and find solutions for your PCB and wire termination requirements on EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7A.
The maximum operating voltage for this pin header is 600V.
It operates safely between -55°C and 105°C.
This model is designed for through hole mounting.
The housing is made of glass-filled polyester, while the contacts are copper alloy plated with nickel and tin.
The pitch size is 3.96 mm.
The tail pin length measures 3.18 mm.
The mating pin length is 11.43 mm.
It uses a solder termination type.
This model features 5 male contacts arranged in a single row.
This pin header has an unshrouded design, allowing for easy mating with matching connectors.
It is suitable for a wide range of applications including automotive, consumer electronics, and computer systems.
