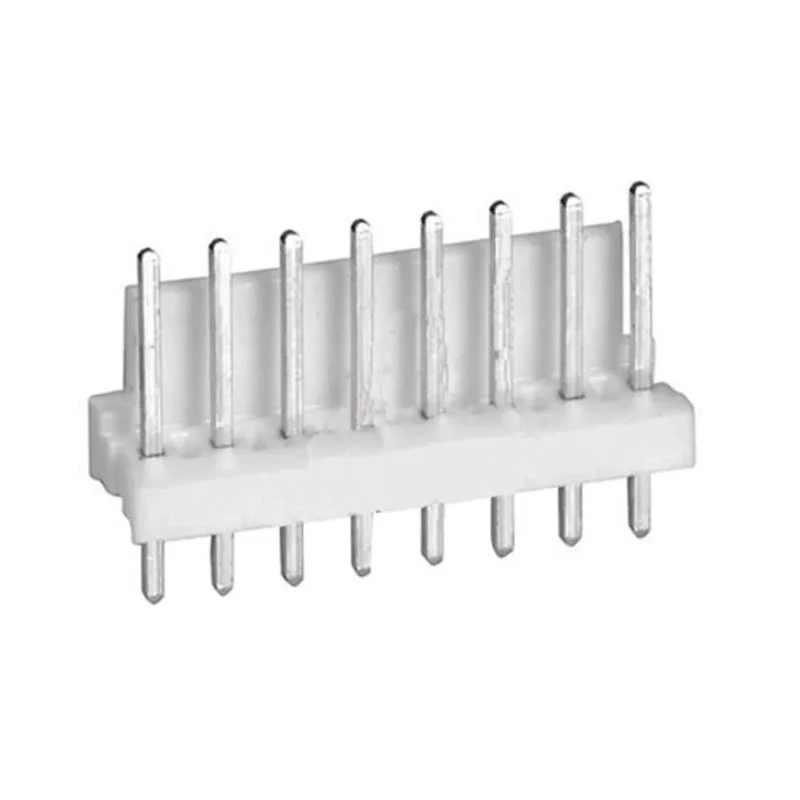

TE Connectivity MTA-100 Series Straight Through Hole Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded 640454-8

TE Connectivity 640454-8 MTA-100 Series Straight Through Hole Pin Header is a high-quality, unshrouded PCB header featuring 8 contacts arranged in one row with a 2.54 mm pitch. The housing is made from glass filled polyester that ensures mechanical strength and electrical insulation integrity.

This pin header is rated to carry currents up to 5A and voltages up to 250V, suitable for a broad range of electronics and electrical applications. The connector employs a straight orientation and through-hole mounting technique for robust PCB attachment.

Contacts are made from copper alloy with tin plating to provide excellent conductivity and corrosion resistance. Tail pins measure 3.56 mm in length while mating pins extend to 7.49 mm for secure connections. Operating temperature ranges from -55°C to 105°C make it versatile for diverse environments.

These MTA-100 headers are designed for cost-effective, mass termination of wires using the MTA-100 IDC connector system. Features such as end-to-end stackability and polarized housings enable precise mating and avoid connection errors. The unshrouded form factor allows easy inspection and soldering access.

Applications encompass automotive body and chassis systems, driver information modules, safety and security electronics, as well as computer and consumer electronics like desktops, notebooks, servers, storage, and workstations. This product supports wire-to-board interconnections in many industrial, commercial, and laboratory contexts.

Constructed from glass filled polyester housing for durability. Rated for 5A current and 250V voltage handling. Features through-hole mount type with straight orientation. Contact material is copper alloy with tin plating for reliable conductivity.

Operates in temperature range from -55°C to 105°C. Termination is solder type with male contact gender. Tail pin length is 3.56 mm; mating pin length is 7.49 mm. Designed for mass termination wire applications using IDC connector systems.

Unshrouded design with polarization notches to prevent mis-mating. Explore more products in PCB Pin Headers at EnvMart for extensive electronics component choices.
