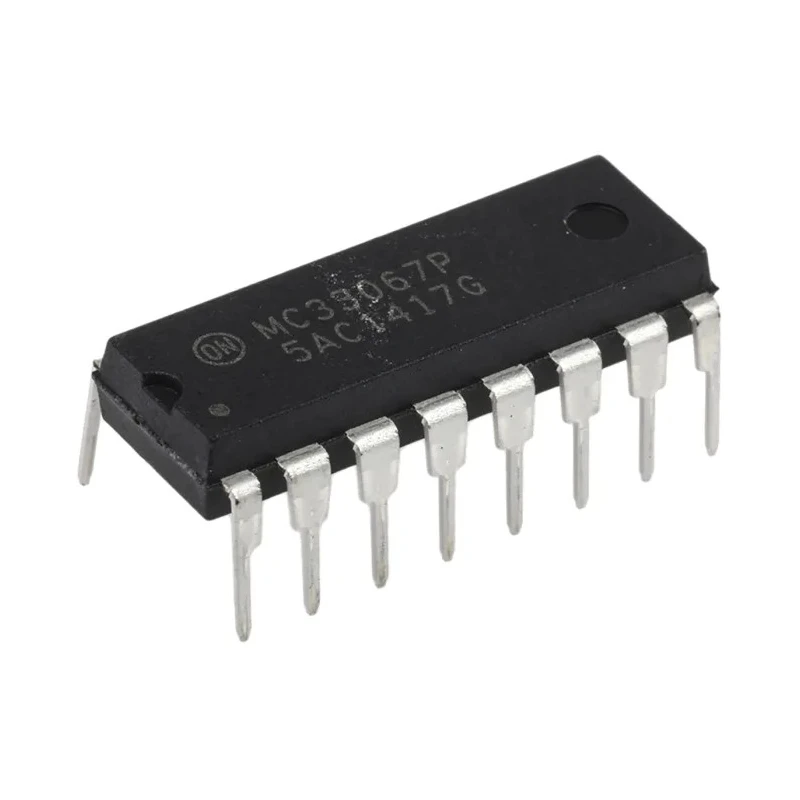

onsemi 16-Pin PDIP 5-Channel Voltage Mode PWM Controller 20V MC33067PG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.43mm |
| Length | 19.55mm |
| Model | MC33067PG |
| Width | 6.85mm |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 25% |
| Series | MC |
| Output Current | 1.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 20V |
| Supply Current | 35mA |
| Start-up Supply Current | 27mA |
| PWM Controller Type | Voltage Mode |
| Resonant mode PWM control,MC33067P 5.1VBrand | ON Semiconductor |
Key Features
- Operates with a maximum supply voltage of 20 volts.
- Features 5 output channels suitable for multitasking control.
- Start-up supply current is 27mA for efficient power usage.
- Output current capacity of 1.5 amperes for moderate loads.
- Supports operation in temperatures ranging from -40°C to 85°C.
- Complies with AEC-Q100 automotive standard for reliability.
- Package comes in a through-hole 16-pin PDIP form factor.
Product Description
onsemi MC33067PG is a 16-pin, through-hole PDIP packaged 5-channel PWM controller designed for voltage mode control applications operating up to 20 volts. It is suitable for power management in automotive and industrial electronics requiring multiple output channels.
The device offers a start-up supply current of 27mA and a supply current of 35mA, providing energy efficient operation. With a maximum output current of 1.5 amperes across 5 outputs, it effectively handles medium power loads.
Operating temperature range from -40°C to 85°C ensures robust performance in challenging environments. It complies with the automotive AEC-Q100 standard, confirming high reliability and quality for automotive electronic controls.
The MC33067PG is built on the MC series platform, featuring a voltage mode PWM controller type with a maximum duty cycle of 25%. Its dimensions (19.55 mm length, 6.85 mm width, and 3.43 mm height) enable easy integration into printed circuit boards using its standard PDIP 16-pin configuration through hole mounting system.
Maximum supply voltage rating of 20V enables compatibility with common automotive and industrial power rails. Five PWM output channels facilitate multi-point control in complex electronic systems. Low start-up and operating current reduce heat and increase energy efficiency.
Wide operating temperature range supports harsh usage conditions. Adherence to AEC-Q100 automotive standard ensures durability and reliability. Standard PDIP packaging ensures compatibility with legacy and modern PCB designs.
Voltage mode PWM controller configuration suitable for power regulation applications. Compact dimensions allow flexible circuit board layouts.
This PWM controller is ideal for applications in industrial machines, automotive electronics, HVAC systems, and power management circuits where reliable multi-channel pulse width modulation control is required.
Explore more PWM Controllers and power management ICs on EnvMart to suit your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 20 volts.
It features 5 output channels suitable for multitasking control.
The output current capacity is 1.5 amperes, allowing it to handle moderate loads.
This model operates within a temperature range of -40°C to 85°C.
It comes in a through-hole 16-pin PDIP package type.
The start-up supply current is 27mA, contributing to efficient power usage.
It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
The maximum duty cycle is 25%.
The dimensions are 19.55 mm in length, 6.85 mm in width, and 3.43 mm in height.
It is a voltage mode PWM controller, designed for voltage mode control applications.
The supply current is 35mA, which helps in energy-efficient operation.
It is suitable for applications in industrial machines, automotive electronics, HVAC systems, and power management circuits.
