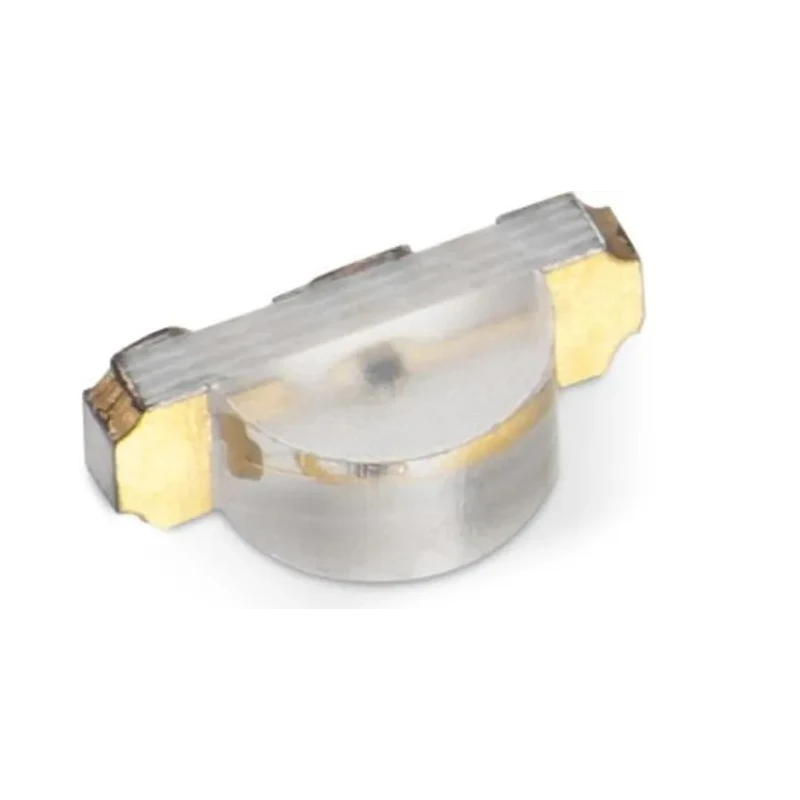

Wurth Elektronik 2 V Red 0603 Surface Mount LED WL-SMSW 155060RS73200

Wurth Elektronik model 155060RS73200 is a high-quality red LED in a compact 0603 surface mount package delivering superior brightness and reliability.

This LED emits light at a dominant wavelength of 624 nm with low energy consumption and heat dissipation, making it ideal for many industrial and commercial applications including backlighting for portable devices, optical indicators, switch and indicator illumination, message boards, and displays.

The small 0603 package type features a clear, round lens with dimensions of 1.1 x 1 mm and a wide viewing angle of 120 degrees for optimal light diffusion. It requires a forward voltage of 2 V and supports a maximum forward current of 20 mA, while offering a luminous intensity of 150 millicandela for bright visibility.

The product is RoHS compliant, ensuring it meets modern environmental and safety standards. Its tape & reel packaging format supports efficient pick-and-place automated mounting in electronic assembly processes.

The Wurth Elektronik WL-SMSW series LED is trusted for applications across electronics manufacturing, instrumentation, consumer electronics, automotive displays, and general illumination where compact size and high brightness are critical.

Bright red 624 nm wavelength light emission. Low forward voltage of 2 V and 20 mA maximum current. Compact 0603 SMT package with wide 120° viewing angle. Energy efficient with 48 mW maximum power dissipation. Clear round lens, 1.1 x 1 mm size.

RoHS certified for environmentally friendly production. Packaged in tape & reel for automated assembly lines. Explore the wide range of LEDs and optoelectronic components available on EnvMart for all your industrial and electronic design needs.
