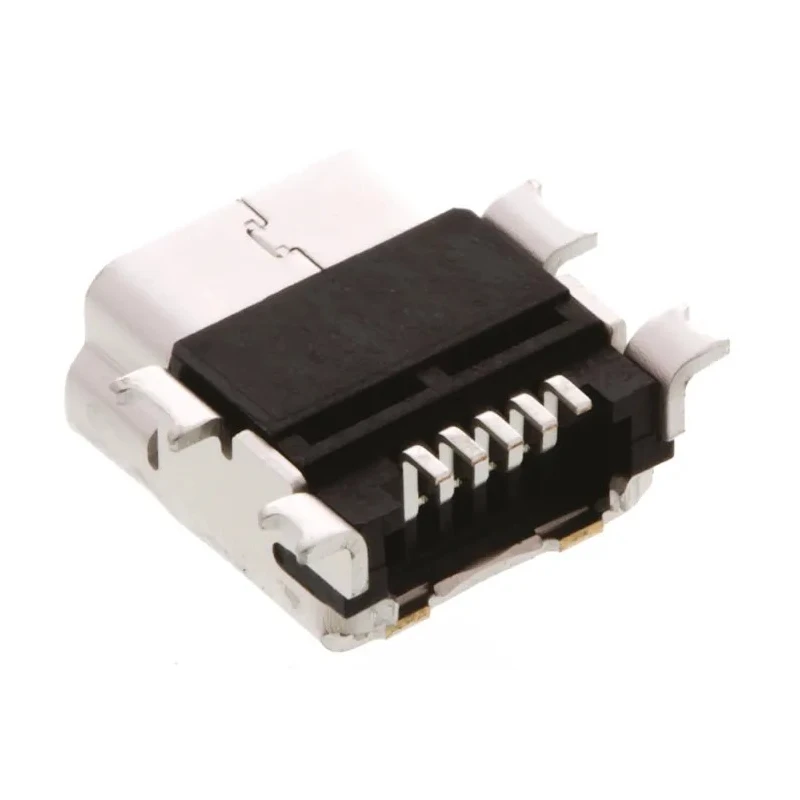

Molex Right Angle Surface Mount Female 1 Port USB Type B Connector USB 2.0 54819-0572
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20.0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Compact right angle surface mount design reduces PCB space requirements.
- Supports USB 2.0 data transfer rates up to 480 Mbps.
- Rated for 30V voltage and 1A current to ensure reliable connections.
- Durable copper alloy contacts with solder termination type.
- Operating temperature range from -20°C to +85°C for broad environmental use.
- Connector gender female with a single USB Type B port.
- Meets USB On-The-Go (OTG) standard for versatile device compatibility.
- Designed for excellent RFI/EMI performance in electronic applications.
Product Description
Molex 54819-0572 is a Right Angle Surface Mount Female USB Type B Connector designed according to USB 2.0 specifications, operating at voltages up to 30V and supporting currents up to 1A. This connector is engineered for use in portable, mobile, and compact electronic devices requiring reliable USB connectivity with minimal PCB space usage.
The connector features a compact 5-pin design including an ID pin, enabling On-The-Go (OTG) functionality which is vital for many modern USB applications. Its right angle orientation assists in efficient PCB layout, while the surface mount configuration allows for secure and stable solder termination.
Constructed with copper alloy contacts, this connector ensures durability and consistent signal integrity. It supports data rates up to 480 Mbps in compliance with USB 2.0 standards, optimized for high-speed data transfer.
Designed for robustness, it operates reliably across a temperature range from -20°C to +85°C, suitable for industrial, commercial, and consumer electronic device environments. This Molex USB connector provides excellent resistance to electromagnetic interference (RFI/EMI), preserving signal quality in electromagnetically noisy environments.
Compact right angle surface mount configuration for minimal PCB footprint. Compliant with USB 2.0 for high-speed data transfer up to 480 Mbps. Copper alloy contacts with solder termination ensuring durable connections. Supports USB On-The-Go (OTG) for enhanced device compatibility.
Rated voltage: 30V, current rating: 1A for reliable performance. Operational temperature range: -20°C to +85°C. Designed for excellent RFI/EMI shielding to maintain signal integrity.
This product is suitable for industrial electronics, telecommunications equipment, consumer electronics, and embedded systems applications where robust and compact USB connectivity is essential. It is an ideal choice for manufacturers and designers requiring a reliable right angle USB Type B connector that meets industry standards.
Explore our extensive range of USB Connectors at EnvMart to find components tailored to your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports data transfer rates up to 480 Mbps, complying with USB 2.0 specifications.
The connector is rated for a voltage of 30V and a current of 1A, ensuring reliable performance.
It operates reliably within a temperature range from -20°C to +85°C, suitable for various environments.
The right angle orientation assists in efficient PCB layout, reducing space requirements on the board.
It features a solder termination type, ensuring secure and stable connections.
Yes, it meets the USB On-The-Go (OTG) standard, enhancing compatibility with various devices.
The contacts are made of copper alloy, providing durability and consistent signal integrity.
This model features a surface mount configuration, allowing for easy integration into electronic devices.
It has a single USB Type B port, designed for compact applications.
It is designed for excellent RFI/EMI performance, preserving signal quality in noisy environments.
It is suitable for industrial electronics, telecommunications equipment, consumer electronics, and embedded systems.
The connector is manufactured in India.
