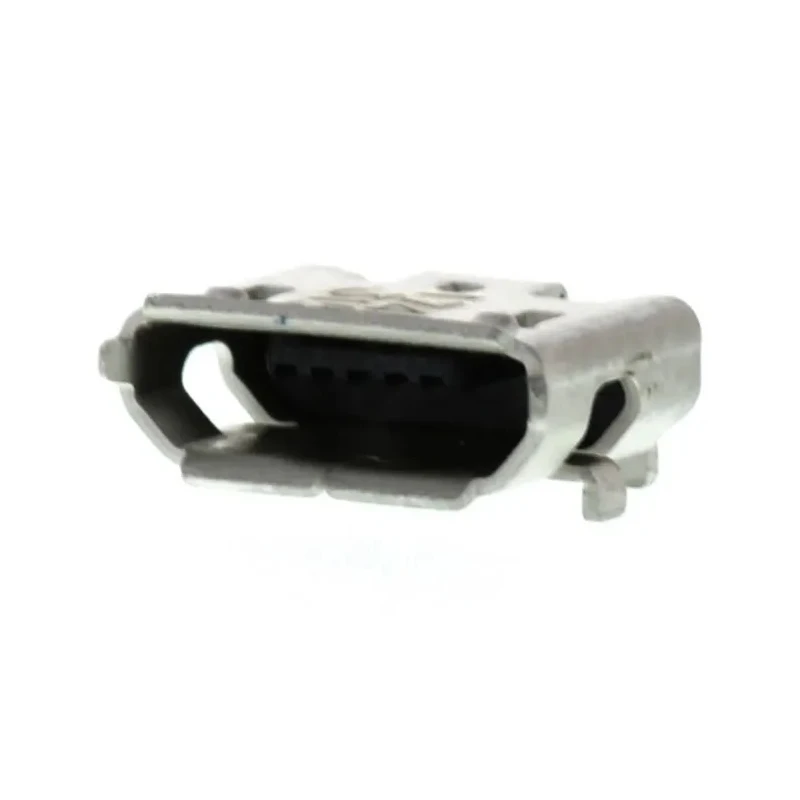

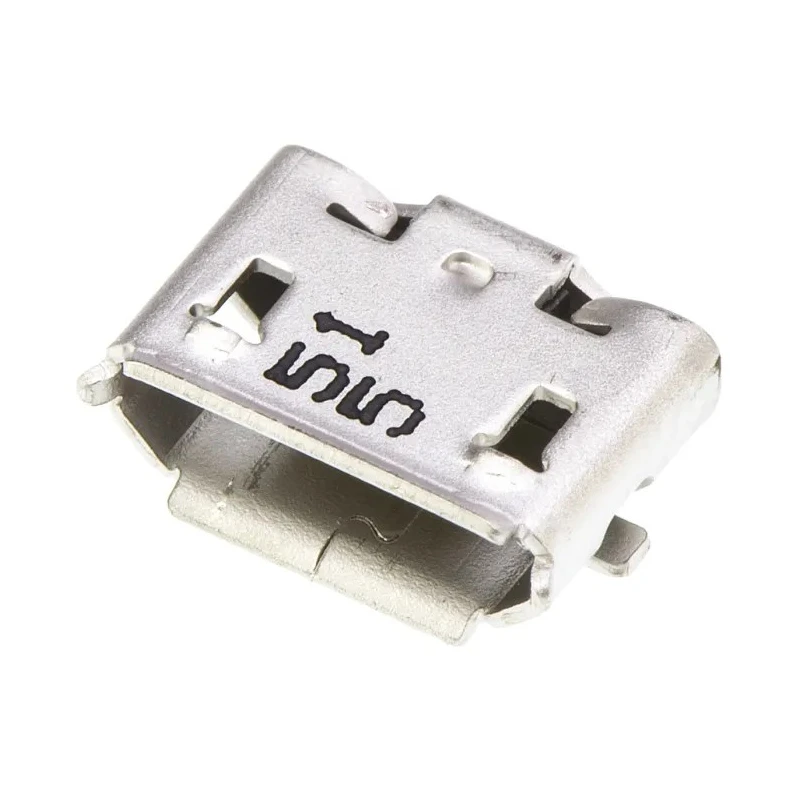

Molex Right Angle Surface Mount Female 1 Port Micro USB Type B Connector USB 2.0 105017-0001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.8A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 1050 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| USB Type | Micro USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Right angle orientation optimizes PCB layout by saving space.
- Surface mount design allows quick and secure installation onto circuit boards.
- Supports USB 2.0 specification enabling high-speed data transfer.
- Copper alloy contact material ensures excellent electrical conductivity.
- Operates within temperature range of -30°C to +85°C for diverse industrial environments.
- 1.8A current rating and 30V operating voltage suit multiple applications.
- Features latching tabs for secure mating and mechanical retention.
- Fully shielded stainless steel shell provides EMI protection.
Product Description
Molex 105017-0001 Right Angle Surface Mount Female 1 Port Micro USB Type B Connector USB 2.0 is designed for reliable power and data transfer in a compact form factor.
This USB connector features a right angle orientation and surface mount style, allowing it to save PCB space and simplify installation in electronic devices. It supports USB 2.0 standards with a maximum current of 1.8A and operating voltage up to 30V, making it suitable for a wide range of industrial and commercial applications.
The copper alloy contacts provide excellent electrical conductivity, while the fully shielded, laser-welded stainless steel shell ensures effective protection against electromagnetic interference (EMI). Its thermoplastic housing offers high impact resistance and thermal stability from -30°C to +85°C, catering to demanding environments.
Additional reliable features include latching tabs that ensure a secure connection, a lead-in feature to facilitate blind mating, and a high mechanical durability rated for over 10,000 insertion cycles. The connector is ideal for use in smartphones, tablets, IT equipment, vehicle battery charging, and other electronic products requiring a compact and durable Micro USB interface.
Right angle orientation optimizes PCB layout by saving space. Surface mount design allows quick and secure installation onto circuit boards. Supports USB 2.0 standard enabling high-speed data transfer. Copper alloy contacts ensure excellent electrical conductivity.
Operating temperature range: -30°C to +85°C for harsh environments. Latching tabs provide secure and reliable mating connection. Fully shielded stainless steel shell offers electromagnetic interference protection. Durability exceeds 10,000 insertion cycles for long service life.
Compact 1-port micro USB Type B connector for versatile device compatibility. Manufactured in China to high industry standards.
This connector is suitable for industrial electronics, automotive charging systems, communication devices, and consumer electronics where a secure, reliable USB interface is required.
Explore our Electronics Components and USB Connector categories for a wide range of compatible parts and industrial-grade Connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 1.8A.
The operating voltage of this model is 30V.
It operates within a temperature range of -30°C to +85°C.
The right angle orientation optimizes PCB layout by saving space.
This connector uses a surface mount design for installation onto circuit boards.
It supports the USB 2.0 specification, enabling high-speed data transfer.
The contacts are made from copper alloy, ensuring excellent electrical conductivity.
This model features 1 port.
It includes latching tabs that provide a secure mating connection and a lead-in feature for blind mating.
The connector is rated for over 10,000 insertion cycles, indicating high mechanical durability.
This connector is a female type.
It is manufactured in China to high industry standards.
