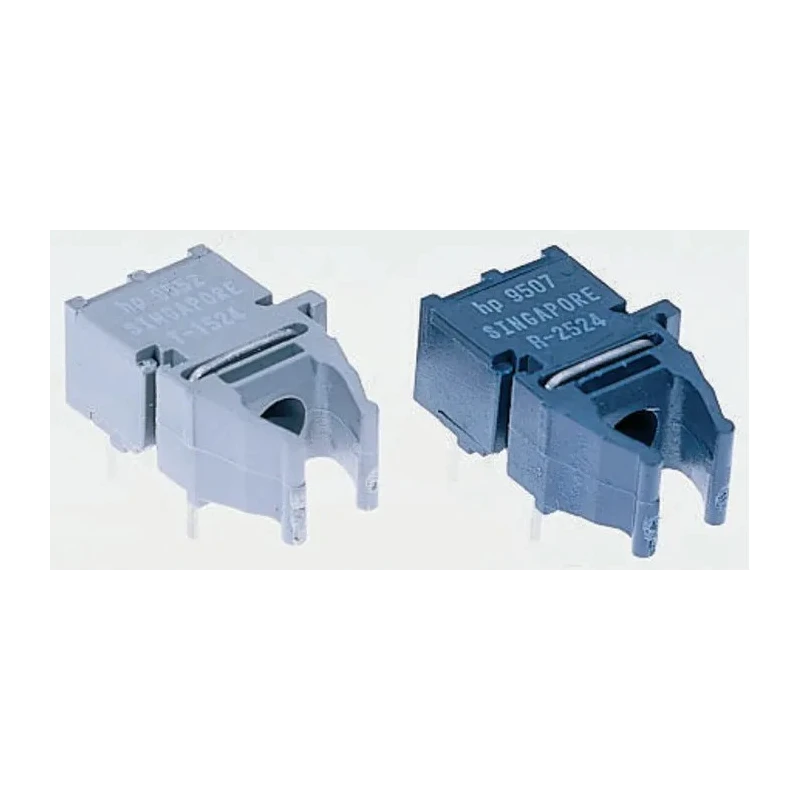

Broadcom 1 MBd 600 nm Fibre Optic Receiver Round Through Hole Mount HFBR-2532Z

The Broadcom HFBR-2532Z is a fibre optic receiver designed to operate at a maximum data rate of 1 MBd with a peak sensitivity wavelength of 600 nm. This receiver features a round connector shape and a through hole mount style, making it suitable for a variety of installation applications in electronic and industrial systems.

Manufactured as part of the Versatile Link series, the HFBR-2532Z offers enhanced digital link capabilities with data rates up to 5 MBd and extended distance transmission up to 120 meters at 40 kBd. Its low peak supply current of 6mA contributes to energy-efficient operation, making it ideal for low-power applications.

The device includes a monolithic DC coupled digital IC receiver with an open collector Schottky output transistor and features typical rise and fall times of 80ns and 40ns respectively, ensuring rapid and reliable optical signal reception.

Its compact dimensions of 18.3mm length, 12.2mm width, and 18.8mm height allow for integration in constrained spaces. The round connector form and six-pin configuration facilitate stable electrical connectivity.

Safety is enhanced through flame retardant materials, and compatibility with standard TTL circuitry allows seamless interfacing with commonly used digital electronic components.

The HFBR-2532Z series is well suited for diverse applications including motor controller triggering, data communications, local area networks, as well as noise immune communication in audio and video equipment. Its high noise immunity and interlocking features make it dependable in challenging EMI/RFI environments.

The receiver supports a maximum data rate of 1 MBd ensuring efficient signal processing. It features a 600 nm peak wavelength sensitivity for optimal optical detection. Constructed with a round connector shape and through hole mount for versatile mechanical integration.

Includes 6 pins for electrical connectivity and supports low current operation at 6mA peak supply. Typical rise and fall times are 80ns and 40ns respectively for rapid signal response. Dimensions are 18.3mm (L) x 12.2mm (W) x 18.8mm (H) for compact use.

Belongs to the Versatile Link series with enhanced digital link capabilities. Flame retardant construction and TTL compatibility ensure safety and interoperability. Explore more Fibre Optic Receiver products from Broadcom on EnvMart for your industrial and electronic component needs.
