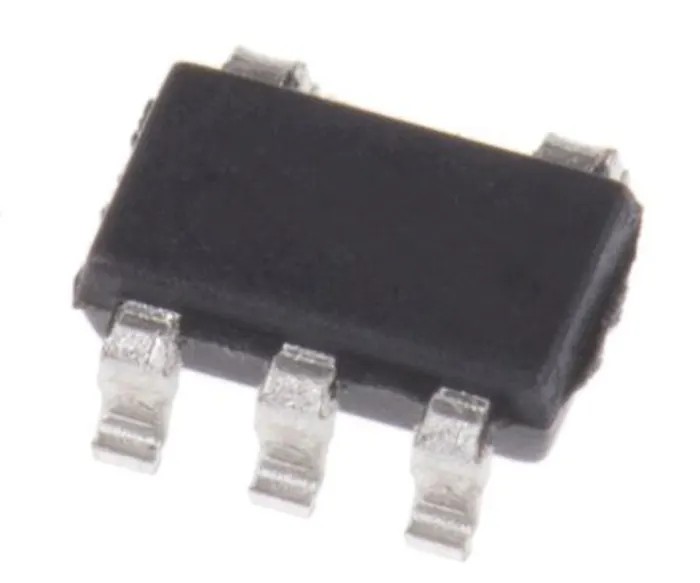

STMicroelectronics Operational Amplifier, 1.9 MHz Gain Bandwidth, 5-Pin SOT-23 5.5V TS507CLT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier, 1.9 MHz Gain Bandwidth, 5-Pin SOT-23 5.5V TS507CLT

Name: STMicroelectronics Operational Amplifier, 1.9 MHz Gain Bandwidth, 5-Pin SOT-23 5.5V TS507CLT
Brand: STMicroelectronics
SKU: 336259
Price: 1.01 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	Malaysia
Brand	STMicroelectronics
Height	1.3mm
Length	3mm
Model	TS507CLT
Width	1.75mm
Mount Type	Surface
Series	TS507
Output Current	128mA
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	0°C
Number Of Channels	1
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	196-2109Brand: STMicroelectronicsManufacturers Part No.: TS507CLT
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V
GBP - Gain Bandwidth Product	1.9MHz
Input Bias Current	75 nA
Slew Rate	0.6V/μs
Input Offset Current	50 nA

Key Features

Operates with a supply voltage range from 2.7V to 5.5V.
Single channel amplifier with a 5-pin surface mount package.
Low input bias current of 75 nA ensuring minimal error.
Slew rate of 0.6V/μs for stable signal performance.
Operating temperature from 0°C to 85°C suitable for diverse applications.
Output current capability of up to 128 mA driving varied loads.
Complies with automotive standard AEC-Q100 for reliable automotive use.
Compact dimensions of approximately 3mm length, 1.75mm width and 1.3mm height.

Product Description

STMicroelectronics TS507CLT is a high-performance operational amplifier featuring a 1.9 MHz gain bandwidth product. Designed for surface mount applications, it is housed in a compact 5-pin SOT-23 package measuring 3 mm by 1.75 mm by 1.3 mm, ideal for tight PCB layouts and battery-powered systems.

This amplifier offers rail-to-rail input and output capability with ultra low offset voltage, achieved through an advanced trimming technique that eliminates the need for external zeroing. It supports supply voltages between 2.7V and 5.5V and provides stable electrical characteristics over this range.

The device features a low input bias current of 75 nA, a slew rate of 0.6 V/μs, and an output current of up to 128 mA, making it suitable for various industrial, automotive, and consumer electronics applications. It operates reliably within 0°C to 85°C, meeting automotive grade AEC-Q100 standards for durability and performance in harsh environments.

The compact SOT-23 package reduces board space while maintaining excellent electrical performance, making TS507CLT well-suited for portable and embedded systems requiring high precision amplification with minimal power consumption.

Operates over a supply voltage range of 2.7V to 5.5V. Single channel, 5-pin surface mount package. Low input bias current of 75 nA and input offset voltage of 25 μV. Slew rate of 0.6V/μs ensures fast signal response. Output current capability up to 128 mA for driving loads.

Automotive standard AEC-Q100 compliant for quality assurance. Compact 3mm x 1.75mm x 1.3mm SOT-23 package. Robust operation across 0°C to 85°C ambient temperatures.

This Operational Amplifier is well-suited for industrial, automotive, and consumer electronics applications, offering stability and precision amplification in a small footprint. Explore our extensive range of semiconductor amplifiers to find compatible components for your design requirements.
