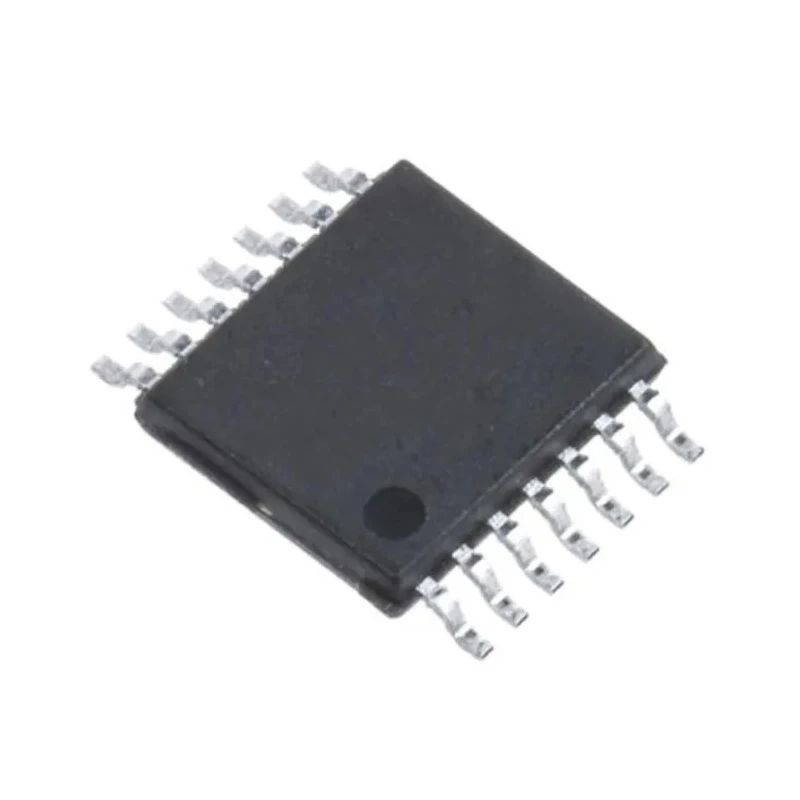

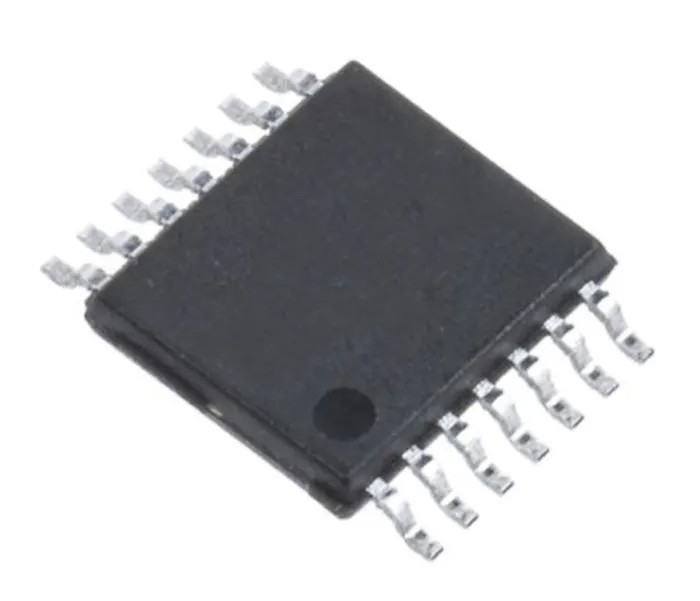

STMicroelectronics Operational Amplifier 1.3 MHz 14-Pin 30V TSSOP LM2902PT

STMicroelectronics LM2902PT is a high-performance operational amplifier featuring a gain bandwidth product of 1.3 MHz, housed in a compact 14-pin TSSOP package capable of handling up to 30V supply voltage. It includes four independent, internally frequency compensated amplifiers designed specifically for demanding automotive and industrial control applications.

This device operates from a single supply voltage ranging from 3V to 30V, with the option of dual power supplies ±1.5V to ±15V, maintaining low supply current independent of the magnitude of the applied voltage. It delivers a large voltage gain of 100 dB with distinguished low input bias current of 20 nA and offset current of 2 nA ensuring signal precision.

The LM2902PT supports a wide input common-mode voltage including the negative rail which provides improved design flexibility. The slew rate of 0.4 V/μs ensures the amplifier can respond effectively to rapid input changes, suitable for signal conditioning and filtering in industrial environments.

Operating over a wide temperature range from -40°C to 125°C and meeting automotive AEC-Q100 standards, this product is suited for robust, high-reliability circuits. Its small physical dimensions (5.1mm x 4.5mm x 1mm) enable space saving on printed circuit boards.

Four independent, high-gain operational amplifiers with internal frequency compensation. Designed for robust automotive and industrial control applications. Single supply voltage operation from 3 V to 30 V; also supports dual supply ±1.5 V to ±15 V.

Low power supply current per amplifier (375 μA) enhances efficiency. Large voltage gain: 100 dB for precise amplification. Low input bias current (20 nA) and offset current (2 nA) improve signal accuracy. Wide operating temperature range: -40°C to 125°C.

Complies with RoHS and automotive standard AEC-Q100. Compact TSSOP-14 package minimizes PCB space requirements.

This operational amplifier is ideal for industrial, automotive, and control system applications requiring precise analog signal amplification. It delivers reliable performance in harsh environments and supports versatile power supply configurations.
