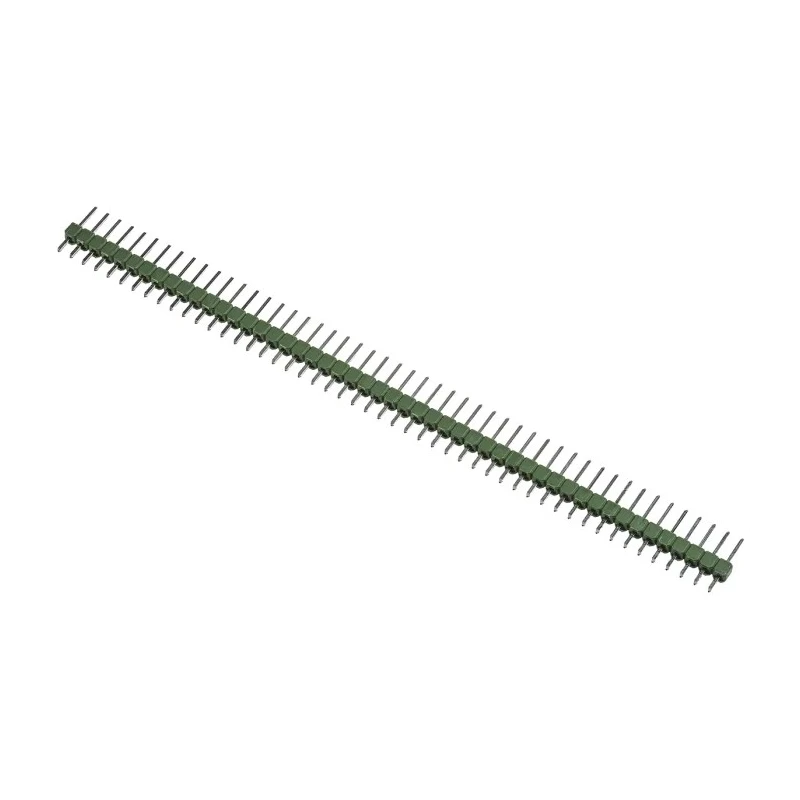

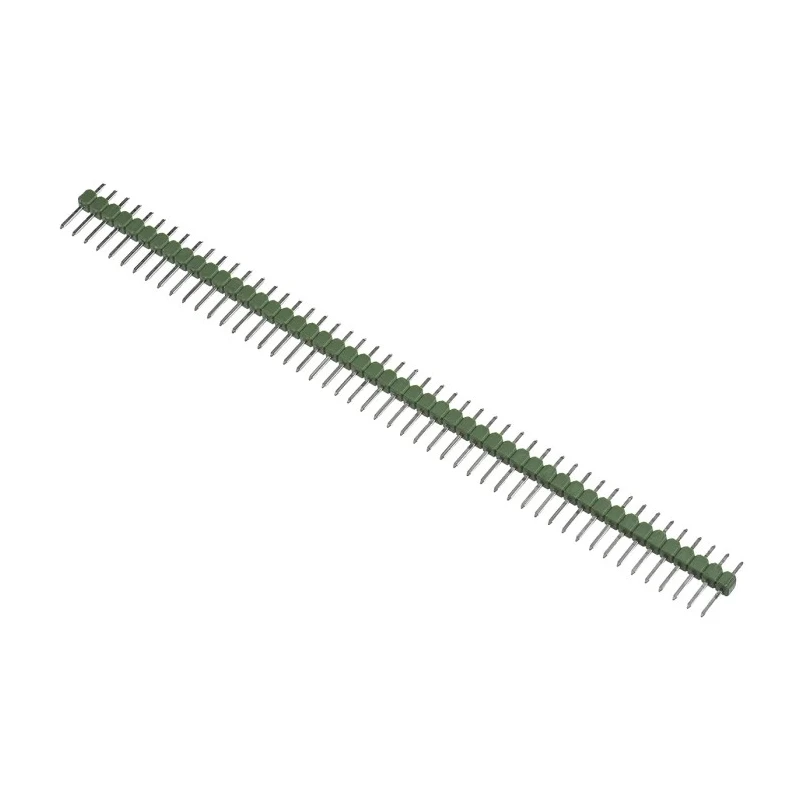

TE Connectivity AMPMODU MOD II Series Unshrouded Straight Through Hole Pin Header 50 Contacts 2.54mm Pitch 750V 3A 5-826936-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- Supports a current rating of 3 amperes for reliable electrical performance.
- Designed with a straight orientation and through hole mount type for secure PCB installation.
- Constructed with brass contacts plated in tin to ensure durability and corrosion resistance.
- Features polyester housing material built to withstand a broad temperature range from -55°C to 105°C.
- Rated for a maximum voltage of 750 volts, suitable for various board-to-board and wire-to-board applications.
- Tail pin length is 3.2 mm with mating pin length of 5.8 mm for optimal connectivity.
- The unshrouded design allows easy access to connector pins and flexible mounting options.
- Compatible with the TE Connectivity AMPMODU™ Range - Style 2 (European) standard 2.54 mm grid.
Product Description
TE Connectivity 5-826936-0 AMPMODU MOD II Series unshrouded straight through hole pin header with 50 contacts and a 2.54 mm pitch offers a robust solution for electronic and electrical applications requiring reliable interconnection.
Its single row of pins, made from brass and plated with tin, ensures excellent conductivity and corrosion resistance essential for long-term PCB connector performance. The polyester housing provides mechanical stability and high resistance to temperature extremes ranging from -55°C to 105°C.
Rated for 3A current and 750V voltage, this connector is specifically engineered to support board-to-board and wire-to-board systems, including stacking configurations. The through hole mount type facilitates a secure mechanical fit on PCB assemblies.
The pin header's unshrouded configuration enables convenient access to individual pins, making it useful for applications where flexibility and ease of assembly are priorities. Tail pin length is 3.2 mm and mating pin length is 5.8 mm, designed to meet standard connectivity requirements and ensure firm mated connections.
This product adheres to TE Connectivity's AMPMODU™ MOD II range specifications and is widely used in industrial electronic manufacturing, telecommunications, computing hardware, and other commercial electronic sectors.
Supports a current rating of 3 amperes for reliable electrical performance. Designed with a straight orientation and through hole mount type for secure PCB installation. Constructed with brass contacts plated in tin to ensure durability and corrosion resistance.
Features polyester housing material built to withstand a broad temperature range from -55°C to 105°C. Rated for a maximum voltage of 750 volts, suitable for various board-to-board and wire-to-board applications. Tail pin length is 3.2 mm with mating pin length of 5.8 mm for optimal connectivity.
The unshrouded design allows easy access to connector pins and flexible mounting options. Compatible with the TE Connectivity AMPMODU™ Range - Style 2 (European) standard 2.54 mm grid. Explore the TE Connectivity AMPMODU MOD II series for dependable PCB header solutions in electronics production at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3 amperes, ensuring reliable electrical performance for various applications.
It is rated for a maximum voltage of 750 volts, making it suitable for board-to-board and wire-to-board applications.
The contacts have a pitch size of 2.54 mm, which is standard for many PCB applications.
The contacts are made from brass and are plated with tin, while the housing is constructed from polyester, providing durability and corrosion resistance.
The tail pin length is 3.2 mm, and the mating pin length is 5.8 mm, designed for optimal connectivity.
This connector can operate within a temperature range of -55°C to 105°C, suitable for various environmental conditions.
It uses a through hole mount type, which facilitates a secure mechanical fit on PCB assemblies.
Yes, it is compatible with board-to-board and wire-to-board connector systems, allowing for flexible configurations.
This model features 50 contacts, providing multiple connection points for electronic circuits.
The pin header is designed with a straight orientation, which aids in easy installation on PCBs.
It belongs to the AMPMODU MOD II series, which is known for its reliable interconnection solutions in electronics.
The contacts in this pin header are male, designed to mate with female connectors.
