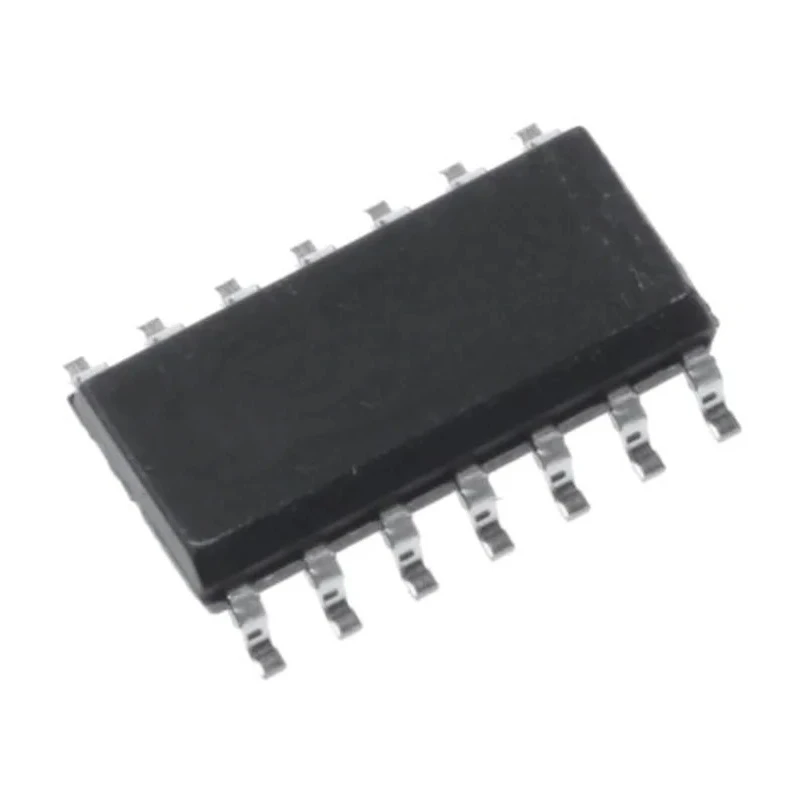

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth 14-Pin Surface Mount SO Package TS27M4CDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 20mm |
| Model | TS27M4CDT |
| Width | 7.1mm |
| Mount Type | Surface |
| Series | TS27M4 |
| Output Current | 60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SO |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 150 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 200 pA |
Key Features
- Operates with a gain bandwidth product of 1 MHz suitable for high-frequency amplification.
- Features four independent amplifier channels in a single 14-pin SO surface mount package.
- Supports supply voltage ranging from 3 V minimum up to 16 V maximum for flexible power configurations.
- Low power consumption with 150 µA per operational amplifier enhances efficiency.
- Offers a slew rate of 0.6 V/μs ensuring responsive signal changes.
- Input bias current is exceptionally low at 150 pA to minimize signal distortion.
- Input offset voltage is rated at 12 mV for accuracy in amplification tasks.
- Operating temperature range is 0°C to 70°C, suitable for standard electronics environments.
Product Description
STMicroelectronics TS27M4CDT operational amplifier is a high-performance semiconductor device featuring four independent amplifiers housed within a 14-pin Small Outline (SO) surface mount package. It operates with a gain bandwidth product of 1 MHz, making it well-suited for high-frequency electronic amplification applications.
This amplifier is designed for low power consumption, drawing just 150 µA per amplifier, enabling efficient operation in portable and power-sensitive designs. The device supports a wide supply voltage range from 3 V to 16 V and exhibits a slew rate of 0.6 V/μs, allowing it to handle rapid signal transitions effectively.
Input characteristics include an input bias current of 150 pA and an input offset voltage of 12 mV, providing precision and minimizing input errors during signal processing. The device operates reliably within a temperature range of 0°C to 70°C, making it ideal for standard industrial and commercial electronics environments.
The output current capability of 60 mA allows for the driving of moderate loads, supporting a variety of industrial and laboratory amplification needs. The TS27M4CDT package is surface mount type for efficient PCB assembly and compact circuit building.
Gain Bandwidth Product: 1 MHz for high-frequency applications. Four amplifier channels integrated in one device. Wide voltage supply range between 3 V and 16 V. Low power consumption of 150 µA per amplifier. Slew rate of 0.6 V/μs enabling fast response.
Low input bias current of 150 pA for precision. Input offset voltage of 12 mV for accuracy. Operational temperature range from 0°C to 70°C. Output current capacity of 60 mA. RoHS compliant for environmental safety. This TS27M4CDT operational amplifier finds applications in industrial electronics, laboratory instrumentation, signal processing, and general-purpose amplification tasks.
Explore more semiconductor Operational Amplifiers and related electronic components in our comprehensive EnvMart catalogue for diverse industrial and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS27M4CDT operates with a gain bandwidth product of 1 MHz, making it suitable for high-frequency amplification applications.
This operational amplifier features four independent amplifier channels integrated into a single device.
It supports a supply voltage range from 3 V minimum up to 16 V maximum, allowing for flexible power configurations.
The output current capability of the TS27M4CDT is 60 mA, which allows it to drive moderate loads effectively.
This model has a height of 1.65 mm, a length of 20 mm, and a width of 7.1 mm, packaged in a 14-pin SO format.
The slew rate of this operational amplifier is 0.6 V/μs, enabling it to handle rapid signal transitions effectively.
The input bias current for the TS27M4CDT is exceptionally low at 150 pA, which helps minimize signal distortion.
The input offset voltage is rated at 12 mV, providing accuracy in amplification tasks.
The operational temperature range for the TS27M4CDT is from 0°C to 70°C, suitable for standard electronics environments.
Yes, the TS27M4CDT is RoHS compliant, ensuring it meets environmental safety standards.
This operational amplifier comes in a 14-pin Small Outline (SO) surface mount package, designed for efficient PCB assembly.
This model is suitable for applications in industrial electronics, laboratory instrumentation, signal processing, and general-purpose amplification tasks.
