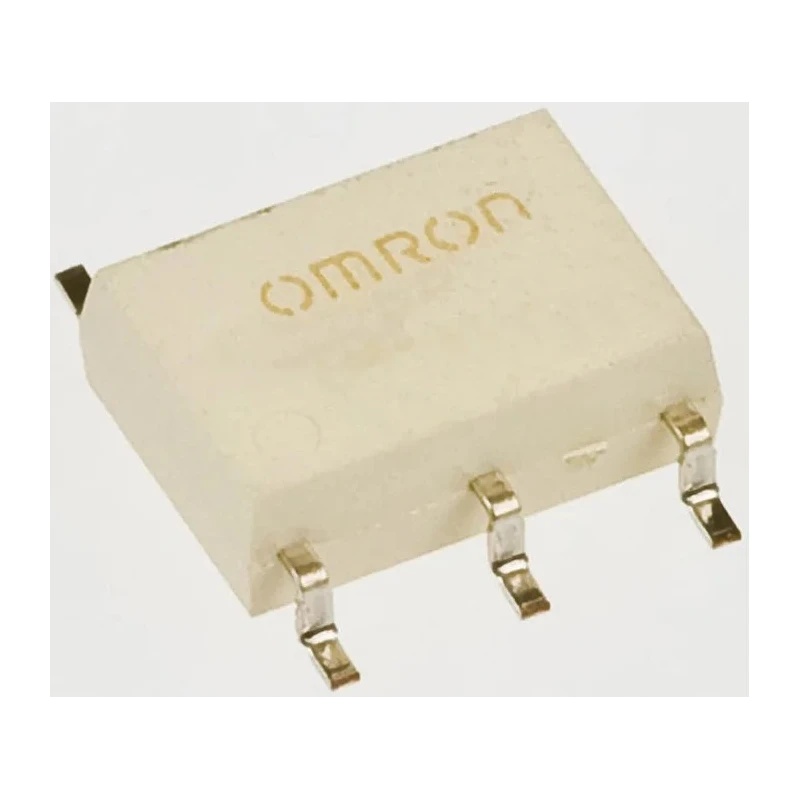

Omron G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3V Control

Omron G3VM-61H1 Solid State Relay is a high-quality MOSFET general-purpose SSR designed for maintenance-free switching of analogue and digital signals with a maximum load current of 0.4 A and load voltage up to 60 V. This surface mount relay employs a small outline SOP6 package featuring 6 relay terminals and screw type connections, making it suitable for modern compact electronic applications.

The relay provides advantages including low leakage current (maximum 1000 nA when open), low ON resistance (maximum 1 Ω), and fast switching with turn ON time up to 2 ms and turn OFF time up to 0.5 ms. It features a single pole single throw normally open (SPST-NO) contact configuration and a capacitance between terminals of 130 pF.

Operating reliably within the ambient temperature range of -30°C to 80°C, the G3VM-61H1 solid state relay is RoHS compliant and certified to EN and UL standards, ensuring quality and safety for industrial, telecommunications, manufacturing, test, and measurement equipment.

This SSR benefits from its compact design and photo-LED input, offering high insulation with dielectric strength of 1500 Vrms between input and output, silent operation, and excellent shock resistance. It is widely applied in communication systems, semiconductor test setups, broadband systems, amusement systems, and data loggers.

This surface mount solid state relay supports DC switching with low noise operation. Compact SOP6 package design with screw terminals for easy surface mounting. Load capacity of 0.4 A and load voltage maximum of 60 V. Fast switching times with 2 ms turn ON and 0.5 ms turn OFF.

High dielectric strength and excellent shock resistance improve reliability. RoHS compliant with EN and UL approvals. Designed for applications such as telecom, test and measurement, and data logging. Explore more Solid State Relays and industrial automation components on EnvMart.
