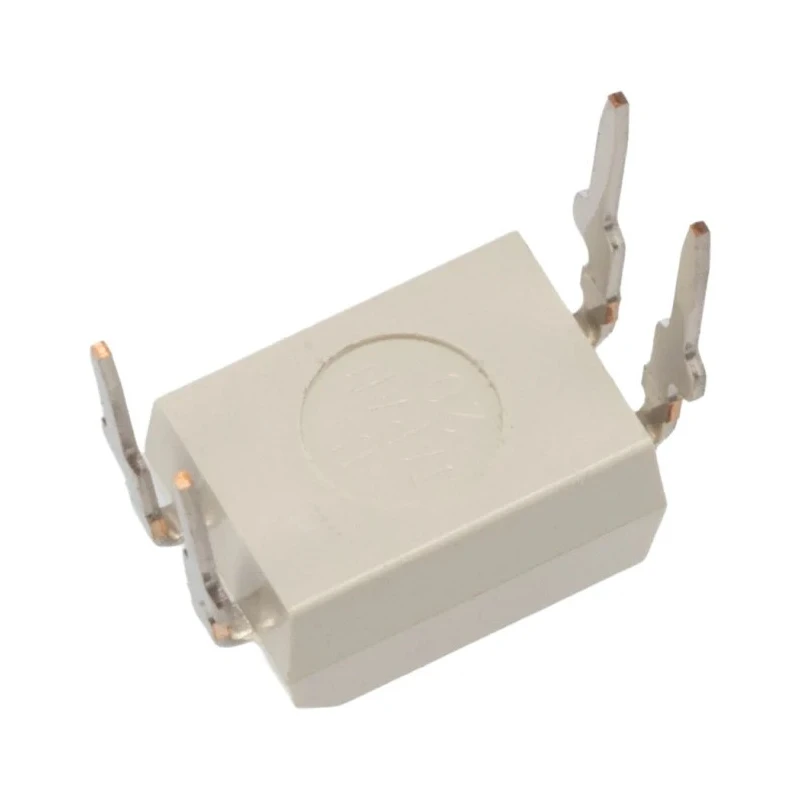

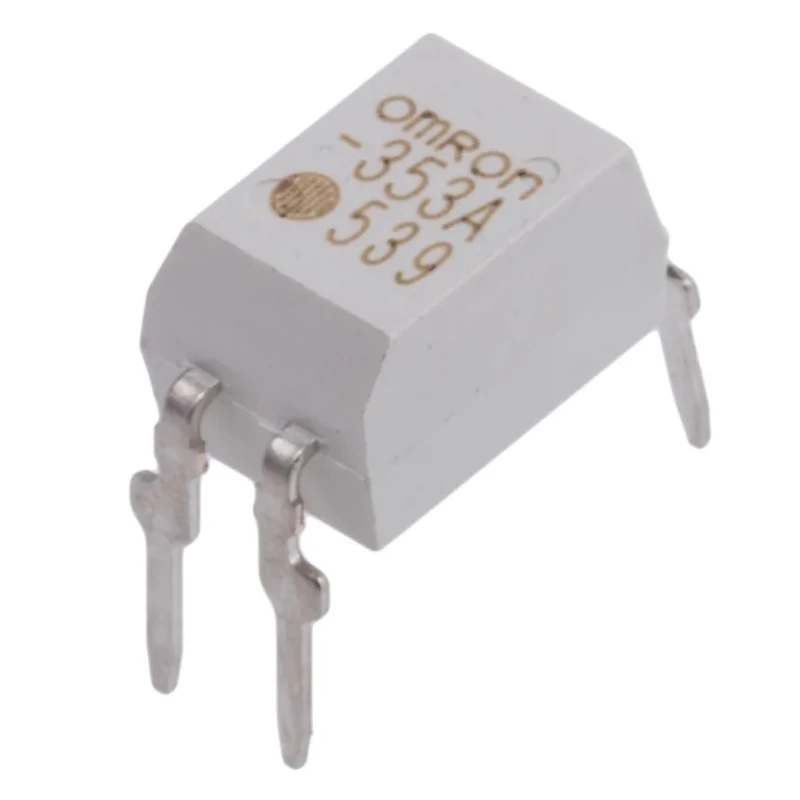

Omron MOSFET Solid State Relay, 0.15 A Load Current, 350 V AC Load Voltage, 1.3 V Control Voltage G3VM

Omron G3VM-353A is a high-quality MOSFET solid state relay designed for reliable switching in industrial, communication, and test equipment applications. It supports a maximum load current of 0.15 A and a maximum load voltage of 350 V AC, suitable for PCB mounting with a compact PDIP dual inline package.

The relay provides a normal closed contact configuration (SPST-NC), ensuring fail-safe or default closed switching when not energized. Operating with a low control voltage of 1.3 V, it features rapid switching with turn ON and turn OFF times of 1 ms and 3 ms respectively. Its small form factor with height 3.7 mm and length 4.6 mm minimizes PCB footprint.

Engineered for durability, the G3VM-353A solid state relay exhibits low off-state leakage current of 50 mA and withstands dielectric strength up to 2500 Vrms between input and output. It meets RoHS compliance standards, ensuring environmental safety. The operational temperature range from -40°C to 85°C makes it suitable for diverse environments.

Additional technical advantages include high insulation and silent operation with the MOSFET output type and photo-LED input, combining mechanical relay advantages with solid state technology. The product finds applications in power circuits, security equipment, industrial machines, and communication systems, providing long operational life and excellent shock resistance.

Package type is PDIP with 4 PCB terminals for secure and easy installation. The relay’s small capacitance between terminals (85 pF) supports stable operation in sensitive electronics. This solid state relay is ideal for controlling micro analogue signals and status output monitoring.

The relay offers a compact, high-performance solution for switching loads up to 0.15 A at 350 V AC. PCB terminal design facilitates soldering and mounting into printed circuit boards. High dielectric strength and low leakage current ensure reliability and safety in operation.

Silent switching operation without mechanical contacts extends the relay lifespan significantly. Wide industrial application scope from telecom to industrial automation and security systems.

Omron is a trusted brand in Solid State Relays, and G3VM series relays combine efficient solid state switching with proven reliability. This product is manufactured in Japan, assuring high quality standards. Explore more Omron relays and solid state devices in EnvMart's extensive electronics category.
