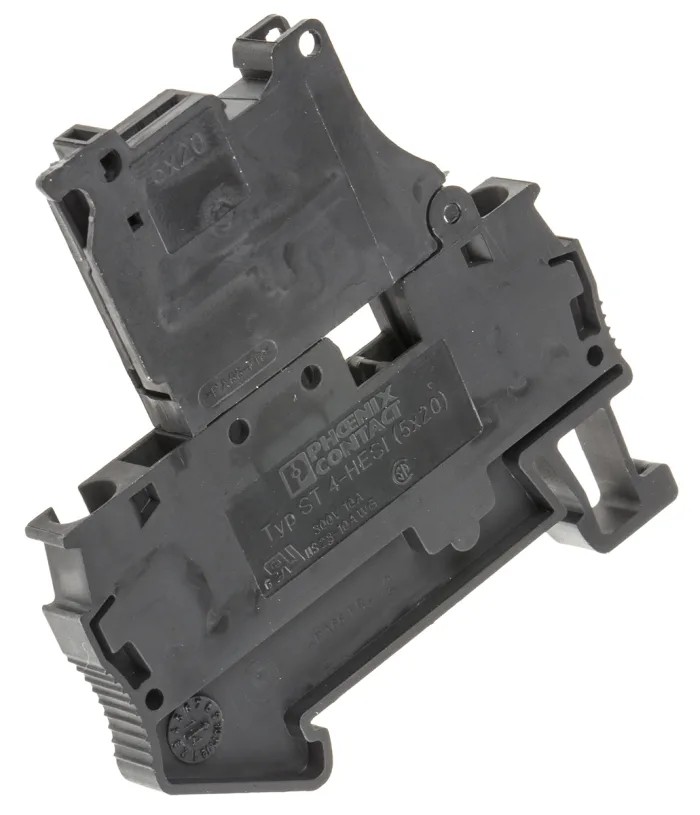

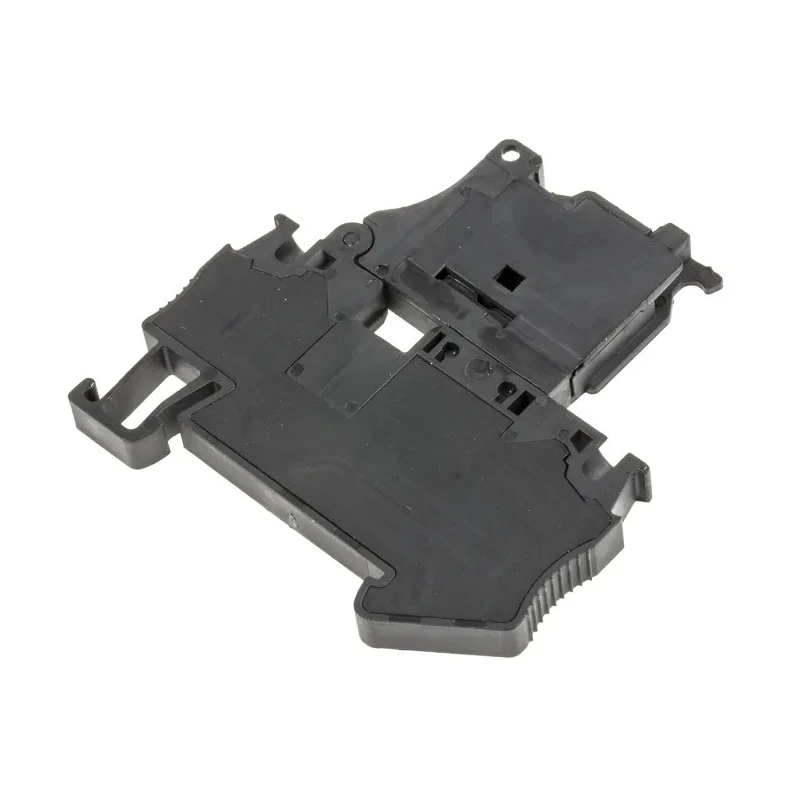

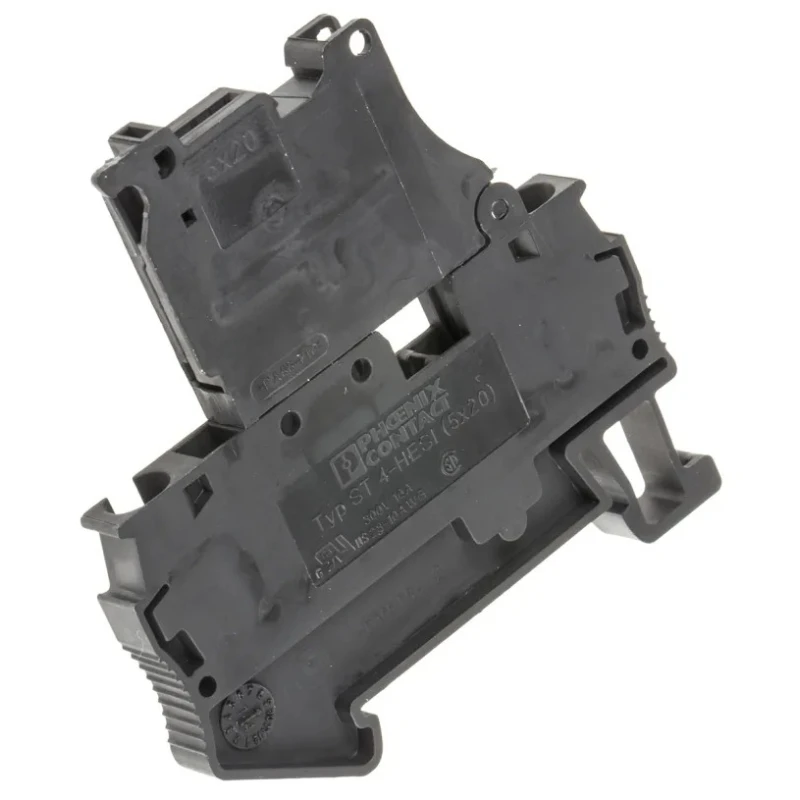

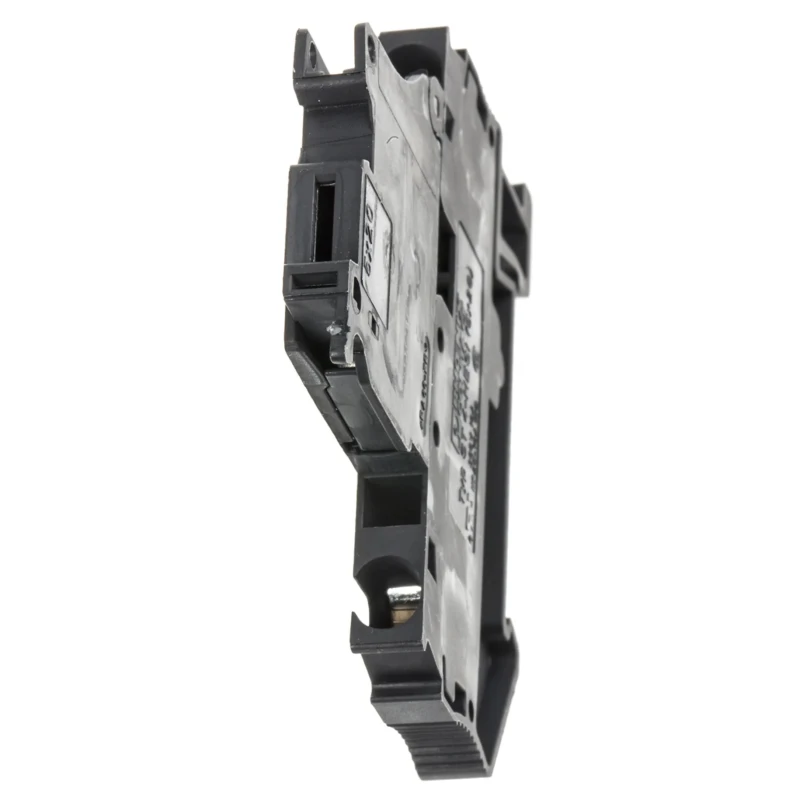

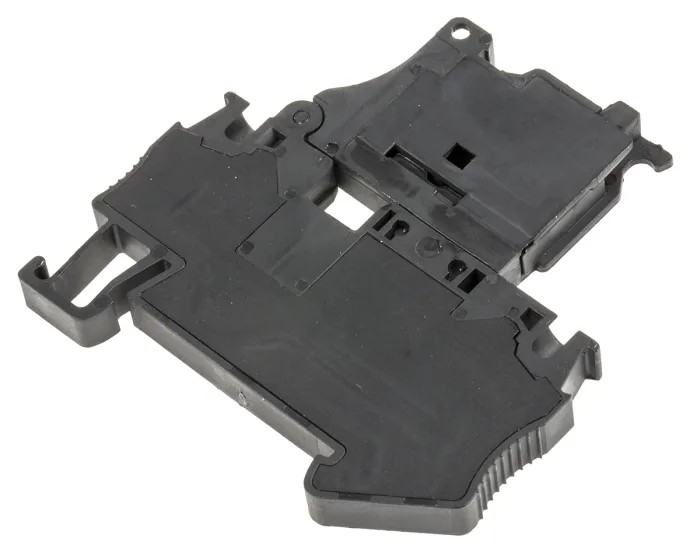

Phoenix Contact Fused DIN Rail Terminal Black 4mm² 1-Level Spring Cage 6.3A 500V ST 4-HESI (5X20) 3036369

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Fused DIN Rail Terminal Black 4mm² 1-Level Spring Cage 6.3A 500V ST 4-HESI (5X20) 3036369

Name: Phoenix Contact Fused DIN Rail Terminal Black 4mm² 1-Level Spring Cage 6.3A 500V ST 4-HESI (5X20) 3036369
Brand: PHOENIX CONTACT
SKU: 332446
Price: 11.9 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Turkey
Voltage	500V
Brand	Phoenix Contact
Colour	Black
Model	3036369
Series	ST 4-HESI (5X20)
Termination Type	Spring Cage
Maximum Operating Temperature	85°C
Number of Levels	1
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Pitch	6.2mm
Standards/Approvals	cULus
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	10AWG
Cable CSA	4mm²
Terminal Block Current	6.3A
RS PRO Feed Through Terminal Block Black, 4mm² Fused, Spring ClampRS Stock No.	913-1263Brand: RS PRO
RS PRO Feed Through Terminal Block Black, 4mm² Fused, Spring ClampBrand	RS PRO

Key Features

Designed for safe distribution of power and fault protection.
Compatible with 5 x 20 mm glass cartridge fuses.
Compact size with 6.2 mm pitch and 61.5 mm length.
Spring cage termination accepts wire sizes from 28 AWG to 10 AWG.
Robust polyamide housing ensures electrical insulation and shock protection.
Operates reliably from -60°C to 85°C in harsh environments.
Enables convenient fuse replacement via hinged fuse holder and lever.
Certified to cULus standards for safety and quality assurance.

Product Description

Phoenix Contact 3036369 fused DIN rail terminal combines robust electrical protection with compact engineering, suitable for industrial power distribution and control systems. Rated at 6.3A current and 500V voltage, this terminal block supports cables up to 4mm², making it versatile for a broad range of wiring tasks.

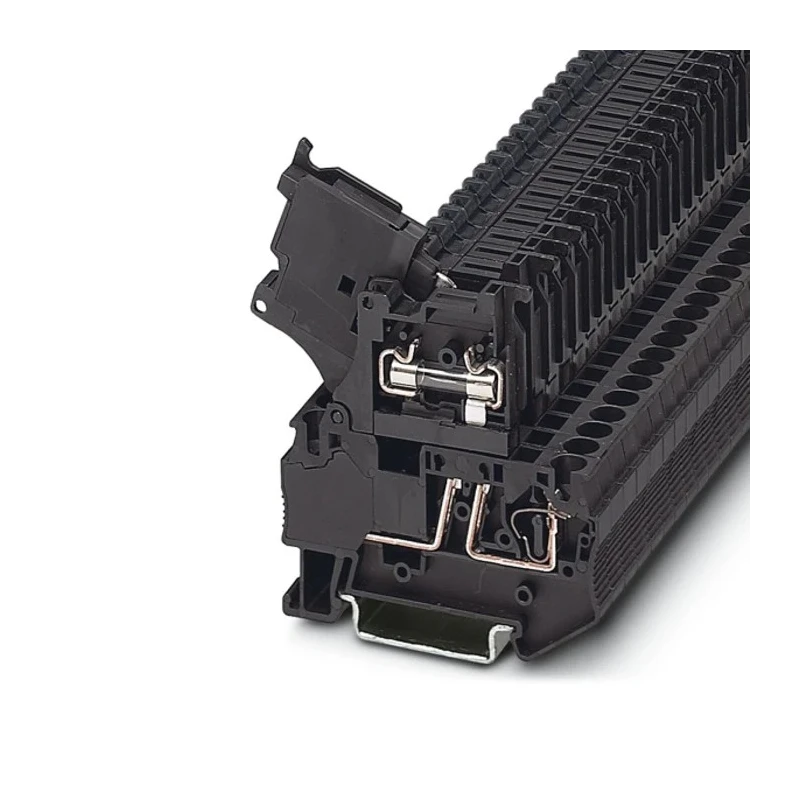

The ST 4-HESI (5X20) series features a front-mounted fuse holder designed for standard 5 x 20 mm glass cartridge fuses to guard circuits against overcurrent faults effectively. The hinged design and lever facilitate swift fuse changes without removing the block from the DIN rail.

Its spring cage termination technology ensures secure and vibration-resistant wire connections, accommodating wire sizes between 28 AWG and 10 AWG. The terminal has a pitch of 6.2 mm and length of 61.5 mm, optimizing space utilization on DIN rails.

Constructed from insulating polyamide, the housing provides user protection against electric shocks and mechanical damage. The terminal operates within a wide temperature range from -60°C minimum to 85°C maximum, enabling deployment in challenging industrial and control environments.

Safe power distribution with integrated fuse protection. Compact form factor with space for labeling. Reliable spring cage termination for secure connections. Wide operating temperature range for industrial resilience. Certified to cULus for compliance with North American safety standards.

Hinged fuse holder supports quick maintenance and fault resolution. Polyamide housing delivers electrical insulation and shock protection. Supports wire sizes from 28 to 10 AWG for flexibility. Applicable in automation, manufacturing, and railway vehicle systems.

This terminal block, manufactured in Turkey by Phoenix Contact, is essential for enhancing electrical safety and organization in industrial, automation, and control panel installations. Environmentally rugged and user-friendly, it aids in preventing electrical hazards and streamlines maintenance workflows.

Explore the extensive range of DIN Rail Terminal Blocks from Phoenix Contact in EnvMart’s industrial components category for tailored electrical connection solutions.
