Jumo dTRANS T01 Temperature Transmitter RTD Input 4 to 20 mA Output 35V 44mm 707015/888-888-888/000 0..100°C Pt100vl

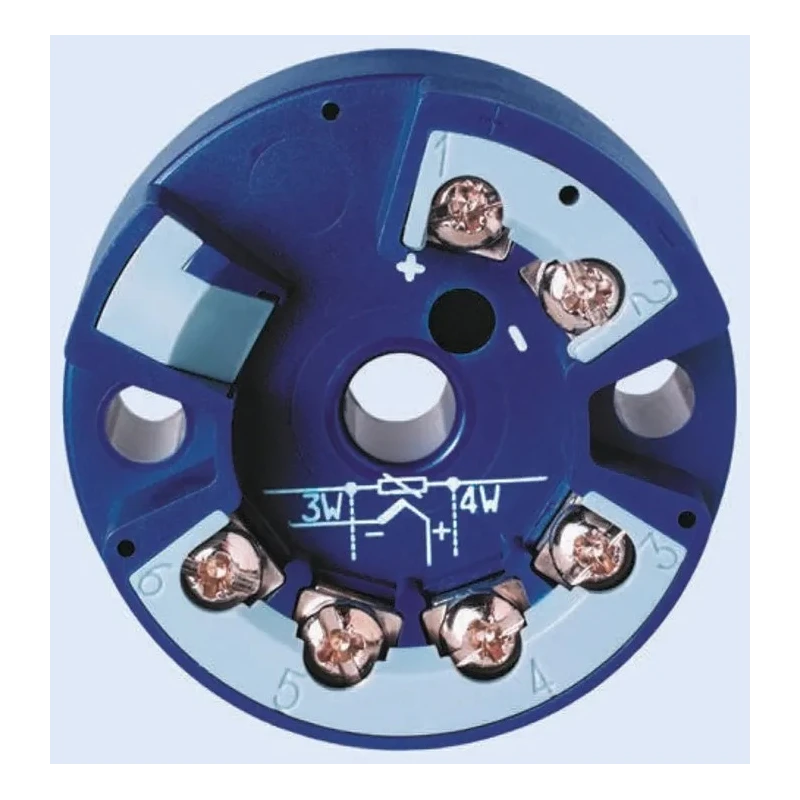

Jumo 707015/888-888-888/000 0..100°C Pt100vl Temperature Transmitter is a high precision programmable two-wire temperature transducer designed for RTD inputs. It provides a 4 to 20 mA output signal used for process control in industrial automation systems.

This transmitter supports connection to resistance thermometers and thermocouples with configurable sensor type, measurement range, and linearization. Its galvanically isolated input and output improve safety in electrical installations.

With a compact form factor featuring a 44mm diameter and 21mm depth, it fits in terminal head shape B according to DIN 43729, making it suitable for diverse industrial measurement environments. The unit operates reliably between -40°C and 85°C ambient temperature range, with a maximum supply voltage of 35V.

Designed for hazardous areas, the transmitter complies with standards including EN 60079-26, EN 60079-11, EN 1127-1, EN 61326-1, and EN 60079-0, holding UL and cUL certifications. Sensor break and short-circuit detection for resistance thermometers provide enhanced safety features.

Configuration is streamlined using the Windows Setup T01 software alongside a PC interface cable with TTL / RS232 converter and adapter, facilitating precise calibration and programming.

This temperature transmitter is ideal for industrial, laboratory, HVAC, manufacturing, and process control applications that require reliable, accurate temperature measurement and control.

Operates with a maximum supply voltage of 35V for reliable performance. Programmable two-wire transducer configurable for resistance thermometers and thermocouples. Sensor break and short-circuit detection ensure operational safety.

Compact diameter of 44mm and depth of 21mm suitable for terminal head installations. Programmable measurement range and linearization for custom applications. Galvanically isolated input and output for electrical safety.

Configuration available via Windows Setup T01 software and PC interface cable. Operates reliably within ambient temperatures from -40°C to 85°C. Compliant with industry standards including EN 60079 series and UL/cUL hazardous area certifications.

Manufactured in Germany ensuring high build quality and precision. Explore our wide selection of Jumo Temperature Transmitters and automation control gear at EnvMart for professional and industrial use.
