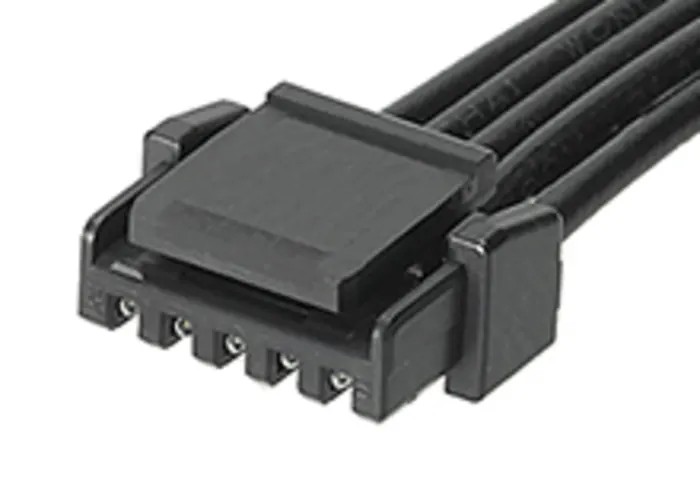

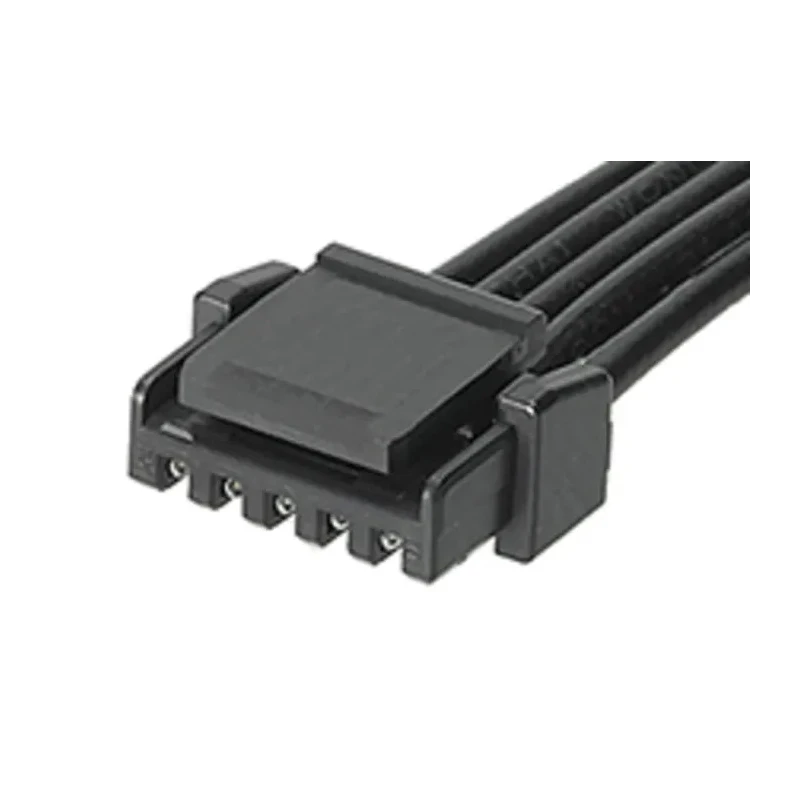

Molex 6 Way Female Micro-Lock Plus to 5 Way Female Micro-Lock Plus Wire to Board Cable 50mm 45111-0500
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Cable Length | 50mm |
| Series | 45111 |
| Jacket Material | Polybutylene Terephthalate |
| Standards/Approvals | 2011/65/EU RoHS, ISO/TS16949 |
| Connector Type A | Micro-Lock Plus |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 6 |
| Number of Contacts B | 5 |
| Number of Rows A | 1 |
| Pin-to-pin mapping from receptacle to PCB header | Provides ready-to-use, plug-and-play connections |
Key Features
- This cable features Micro-Lock Plus connectors with a 1.25mm pitch form factor and positive locking mechanism.
- Jacket made from durable Polybutylene Terephthalate in black color provides mechanical protection and insulation.
- Cable length is 50 mm suitable for compact electronic appliance connections.
- The cable supports 50V AC voltage rating compliant with RoHS and ISO/TS16949 standards.
- Designed for easy plug-and-play applications with pin-to-pin mapping from receptacle to PCB header.
- Ideal for consumer electronics including home entertainment and mobile devices.
- Suitable for industrial applications such as process controls and industrial motors.
- Compact design facilitates prototyping and global production needs.
Product Description
Molex 45111-0500 Wire to Board Cable is a high-quality cable assembly featuring a 6 Way Female Micro-Lock Plus connector interfacing to a 5 Way Female Micro-Lock Plus connector with a cable length of 50 mm. This cable assembly uses a 1.25 mm pitch form factor that ensures a secure positive lock connection while maintaining a compact profile suitable for dense electronic assemblies.
The jacket is made from Polybutylene Terephthalate in black color, providing excellent mechanical protection along with electrical insulation properties. The cable is rated for 50V AC, confirming suitability for typical low-voltage electronics applications.
This Micro-Lock Plus cable assembly complies with the 2011/65/EU RoHS directive and the ISO/TS16949 quality standards, making it appropriate for consumer, commercial, and industrial environments where reliability and regulatory compliance are essential.
Pin-to-pin mapping allows for direct plug-and-play connections from receptacle to printed circuit board (PCB) headers, simplifying assembly and reducing engineering time. The cable is equipped with UL 1061 discrete wires for micro cable assemblies and UL 1007 wires for other types, ensuring safety and durability in electronic appliance applications.
Applications include consumer electronics such as home entertainment systems, home appliances, gaming consoles, and mobile devices. Industrial uses involve process control systems, industrial motors, and commercial aviation, featuring drones and aircraft cabin connections. The cable's compact design also supports prototyping and mass production scenarios.
This cable assembly delivers reliable, ready-to-use connectivity with Mechanical and electrical durability. Positive lock connectors secure mating retention without compromising compactness. The 50mm cable length ensures suitability for space-constrained applications.
Compliant with international RoHS and quality standards for safety and environment. Widely applicable in consumer, industrial, and commercial electronic devices and systems. Explore more Wire to Board Cables and electronic connector solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 50 mm, making it suitable for compact electronic appliance connections.
It features a 6 Way Female Micro-Lock Plus connector on one end and a 5 Way Female Micro-Lock Plus connector on the other end.
The cable is rated for 50V AC, suitable for typical low-voltage electronics applications.
The jacket is made from Polybutylene Terephthalate, which provides mechanical protection and electrical insulation.
It complies with the 2011/65/EU RoHS directive and ISO/TS16949 quality standards.
It is suitable for consumer electronics such as home entertainment systems, mobile devices, and industrial applications like process control systems and industrial motors.
The cable provides pin-to-pin mapping from the receptacle to the PCB header, allowing for ready-to-use, plug-and-play connections.
The jacket is black in color, providing a standard appearance for electronic components.
The 6 Way Female Micro-Lock Plus connector has 6 contacts, while the 5 Way Female Micro-Lock Plus connector has 5 contacts.
The country of origin is India.
The series designation for this cable is 45111.
Yes, it is designed for easy installation with its plug-and-play capability, simplifying assembly and reducing engineering time.
