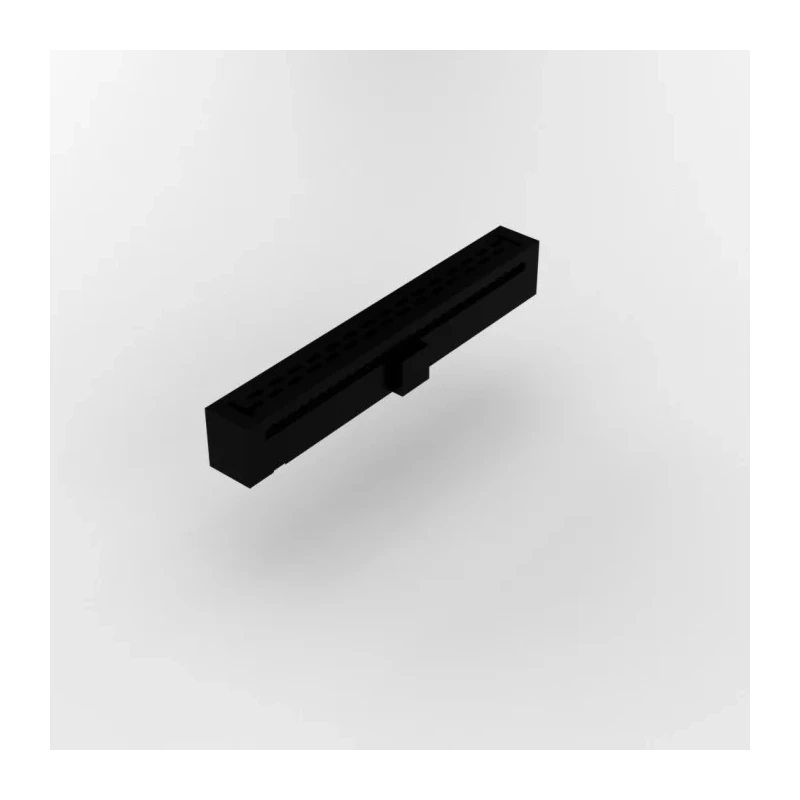

Samtec TCSD Series Flat Ribbon IDC Socket, Tiger Eye IDC to Tiger Eye IDC, 3.175 mm Length, Glass Filled TCSD-15-01-F-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Operating Temperature Range | -40°C to +105°C |
| Model | TCSD-15-01-F-N |
| Cable Length | 3.175mm |
| Current Rating | 2.8 A per pin |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Glass Filled Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Contact Gender A | Female |
Key Features
- Features Tiger Eye IDC connectors on both ends for enhanced durability.
- Flat ribbon cable design allows easy routing in tight spaces.
- Jacket material is glass filled polyester for increased strength and insulation.
- Cable length of 3.175 mm facilitates compact installations.
- Contact points made from Beryllium copper for improved conductivity.
- Supports a current rating up to 2.8A per pin, suitable for demanding applications.
- Operating temperature range from -40°C to +105°C ensures suitability in various environments.
Product Description
The Samtec TCSD-15-01-F-N is a high-quality flat ribbon IDC socket designed for robust wire-to-board connections in electronic systems. It is part of the TCSD series, featuring Tiger Eye IDC connectors at both ends and a cable length of 3.175 mm, which facilitates compact and organized installations.
This cable assembly utilises a glass filled polyester jacket, offering excellent mechanical strength and electrical insulation. The contact points are manufactured from Beryllium copper, ensuring superior conductivity and long-term reliability in demanding operational conditions. The flat ribbon construction enables easy and flexible routing within equipment and PCBs.
The Tiger Eye IDC connector design provides strong, stable contact and is well suited for secure mounting in harsh industrial environments, laboratory testing setups, and commercial electronics. Both ends have a female connector gender, making them compatible with standard Tiger Eye IDC sockets and headers.
With a current rating of up to 2.8A per pin, the TCSD-15-01-F-N is suitable for powering multiple electronic components and transmitting signals safely and efficiently. Its temperature operating range of -40°C to +105°C means it can be deployed in cold storage, high-temperature industrial, HVAC, and manufacturing applications without performance degradation.
The RoHS compliant construction assures it meets environmental standards, minimizing hazardous material content. The black glass filled polyester jacket also offers enhanced resistance to mechanical stress and chemical exposure.
Common industrial use cases include PCB wire-to-board interconnections, laboratory equipment wiring, instrumentation setups, and compact commercial electronics assemblies. Its design optimizes reliability for frequent connection/disconnection scenarios and in systems requiring precise electrical performance.
Explore more products in the Wire to Board Cable category and discover the full Samtec TCSD Series for reliable flat ribbon cable solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 2.8A per pin, making it suitable for powering multiple electronic components and transmitting signals safely.
The operating temperature range for the TCSD-15-01-F-N is from -40°C to +105°C, allowing it to function effectively in various environments.
The cable length of this model is 3.175 mm, which facilitates compact installations in electronic systems.
The jacket material is glass filled polyester, which provides increased strength and insulation for the cable.
This model features Tiger Eye IDC connectors on both ends, designed for robust wire-to-board connections.
Both ends of the TCSD-15-01-F-N have a female connector gender, making them compatible with standard Tiger Eye IDC sockets and headers.
Yes, this model is RoHS compliant, ensuring it meets environmental standards by minimizing hazardous material content.
Common applications include PCB wire-to-board interconnections, laboratory equipment wiring, and compact commercial electronics assemblies.
It is a flat ribbon cable, which allows for easy routing in tight spaces within electronic systems.
The contact points are made from Beryllium copper, which ensures improved conductivity and long-term reliability.
This model is primarily used for robust wire-to-board connections, optimizing reliability for frequent connection and disconnection scenarios.
The country of origin for this model is India.
