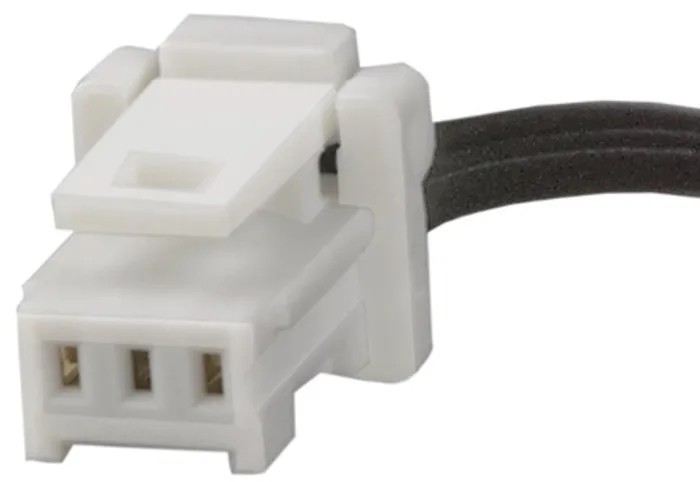

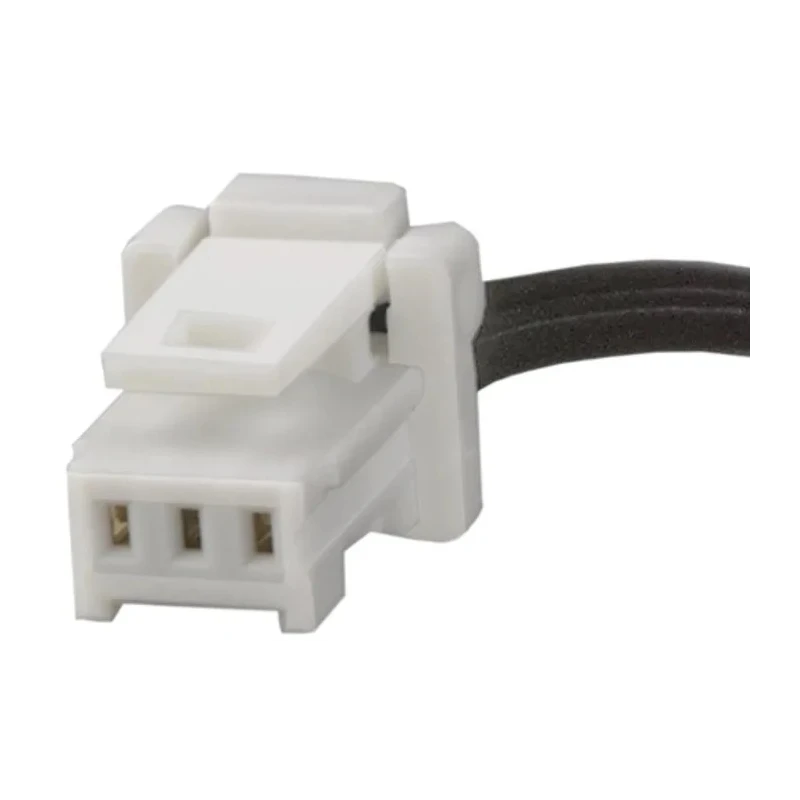

Molex 3 Way Female PicoClasp to 3 Way Female PicoClasp Wire to Board Cable 300 mm 15133-0303
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 300mm |
| Series | 15133 |
| Jacket Material | Nylon |
| Pitch | 1.0 mm |
| Standards/Approvals | REACH, RoHS |
| Connector Type A | PicoClasp |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 3 |
| Number of Rows A | 1 |
Key Features
- Three-way PicoClasp female-to-female cable ensures consistent wire-to-board connectivity.
- Features 1.0 mm pitch PicoClasp connectors on both ends for space-saving installations.
- Utilizes UL1061 discrete wires and black nylon jacket for durability and design flexibility.
- Offers secure positive locking system, low insertion and withdrawal force for easy mating.
- Supports up to 1A current, suitable for prototyping, consumer electronics, and industrial use.
- 300 mm cable length accommodates versatile installation requirements in confined spaces.
Product Description
The Molex 15133-0303 3 Way Female PicoClasp to Female PicoClasp Wire to Board Cable is engineered for robust, compact connections in a range of electronic applications. This cable assembly is equipped with three-way PicoClasp female connectors at both ends, ensuring direct wire-to-board connectivity that is ready for immediate integration. With its 300 mm length, the cable is suitable for projects that require compact routing in tight spaces.
This assembly utilizes PicoClasp 1.0 mm pitch connectors, offering high-density interconnection where space is at a premium. Unique features include a positive locking mechanism for secure mating, and a low insertion and withdrawal force for quick, reliable installation and removal. The discrete wires are constructed to UL1061 standards, and the cable is sheathed in a durable black nylon jacket for lasting performance in demanding environments.
The maximum supported voltage is 50 Vrms, and the cable can carry up to 1 A, making it a suitable choice for low-power circuits in consumer electronics, portable devices, industrial process controls, and even select automotive or medical equipment such as patient monitors. Pin-to-pin mapping ensures straightforward, plug-and-play use with compatible PCB headers, specifically designed for reliability with Molex 501331 and 501568 series headers.
Typical use cases include prototyping design boards, home appliances, electronic instruments, commercial vehicles, fitness equipment, mobile devices, and other high-reliability and high-density interconnection requirements. Thanks to the compact 1.0 mm pitch and secure housing, PicoClasp cable assemblies like this are commonly selected in global production environments where size, retention, and ease of mating are critical.
This product stands out for its positive lock on both connector housings, pin to pin mapping for easy integration, high-density support, and robust build. Its construction and certifications (REACH and RoHS) make it well-suited for industrial, consumer, medical, and commercial electronics sectors.
Explore additional Molex PicoClasp wire-to-board solutions and related cable assemblies in the Wires & Cables category on EnvMart to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 300 mm, making it suitable for compact routing in tight spaces.
It features three-way PicoClasp female connectors on both ends for direct wire-to-board connectivity.
This cable can carry up to 1 A of current, suitable for low-power circuits.
The cable is constructed to meet REACH and RoHS standards, ensuring compliance with environmental regulations.
The connectors have a pitch size of 1.0 mm, allowing for high-density interconnection.
The cable is sheathed in a durable black nylon jacket and utilizes UL1061 discrete wires.
The maximum supported voltage is 50 Vrms, making it suitable for various electronic applications.
It is suitable for prototyping, consumer electronics, industrial process controls, and select automotive or medical equipment.
The connectors feature a positive locking system that ensures secure mating and easy installation and removal.
The country of origin for this cable is China.
Each connector has 3 contacts, allowing for effective connectivity in electronic applications.
Yes, it can be used in select automotive applications, including patient monitors and commercial vehicles.
