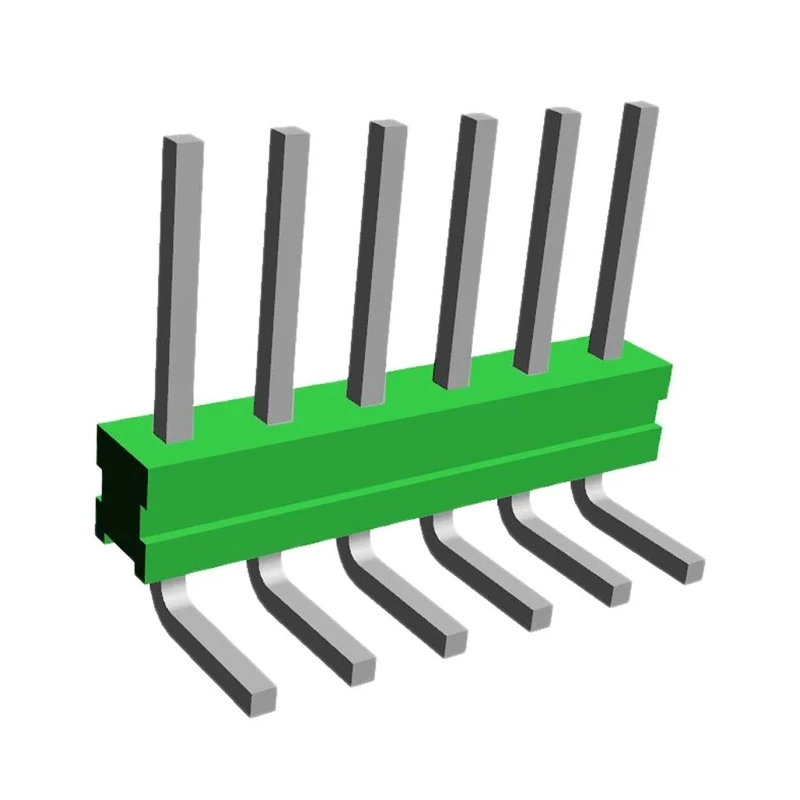

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row 825437-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | 825437-6 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features a right angle orientation suitable for compact PCB layouts.
- Unshrouded design for versatile board-to-board and wire-to-board connections.
- Constructed with phosphor bronze contacts plated with gold for reliable conductivity.
- Rated for 3A current and 750V voltage, supporting robust electrical performance.
- Housing made of durable polybutylene terephthalate for thermal and mechanical stability.
- Suitable for industrial automation, automotive controls, telecommunications, and medical instruments.
- Offers quick installation with breakaway segments for customizable lengths.
- Designed to operate reliably within −65°C to 105°C temperature range.
Product Description
TE Connectivity 825437-6 AMPMODU MOD II Series right angle through hole pin header is a high-quality connector designed for robust and reliable PCB interconnections. Featuring a single row with 6 male contacts spaced at a 2.54 mm pitch, it ensures precise signal transmission and mechanical stability.
This unshrouded pin header is made from polybutylene terephthalate housing, providing excellent thermal resistance and durability. The phosphor bronze contacts are gold-plated to maintain superior conductivity and corrosion resistance over extended use.
Operating within a current limit of 3A and voltage tolerance of up to 750V, this connector is engineered for various demanding industrial applications including automotive controls, industrial and test equipment, telecommunications, computers, and medical instruments.
The right angle orientation facilitates compact PCB designs where vertical space is limited. The breakaway design enables customization of connector lengths by easily separating pin segments to fit specific board configurations, thereby enhancing assembly efficiency and reducing labor costs.
Designed for through hole mounting and solder termination, it supports quick and reliable soldering processes. Operating temperature range from -65°C to 105°C ensures functional resilience under extreme environmental conditions.
Right angle through hole pin header with 6 contacts and 2.54 mm pitch. Phosphor bronze male contacts with gold plating for durability and conductivity. Polybutylene terephthalate housing for thermal and mechanical stability.
Rated for 3A current and 750V voltage. Breakaway segments allow length customization. Suitable for industrial, automotive, telecommunications, and medical applications. Operating temperature range: -65°C to 105°C. Designed for solder termination and through hole mounting.
This reliable connector is part of the AMPMODU Mod II series, a widely adopted interconnect system known for its modularity and versatility in automation and control applications. Discover more specialized connectors and electronic components suitable for your industrial and professional projects at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header is rated for a voltage of 750V.
It has a current rating of 3A.
The pitch size is 2.54 mm.
The housing is made of polybutylene terephthalate, and the contacts are made of phosphor bronze with gold plating.
It operates within a temperature range of -65°C to 105°C.
This model features 6 male contacts.
It is designed for through hole mounting.
The pin header has a right angle orientation, suitable for compact PCB layouts.
It uses solder termination.
Yes, it features breakaway segments that allow for length customization.
It is suitable for industrial automation, automotive controls, telecommunications, and medical instruments.
The contacts are unshrouded, allowing for versatile board-to-board and wire-to-board connections.
