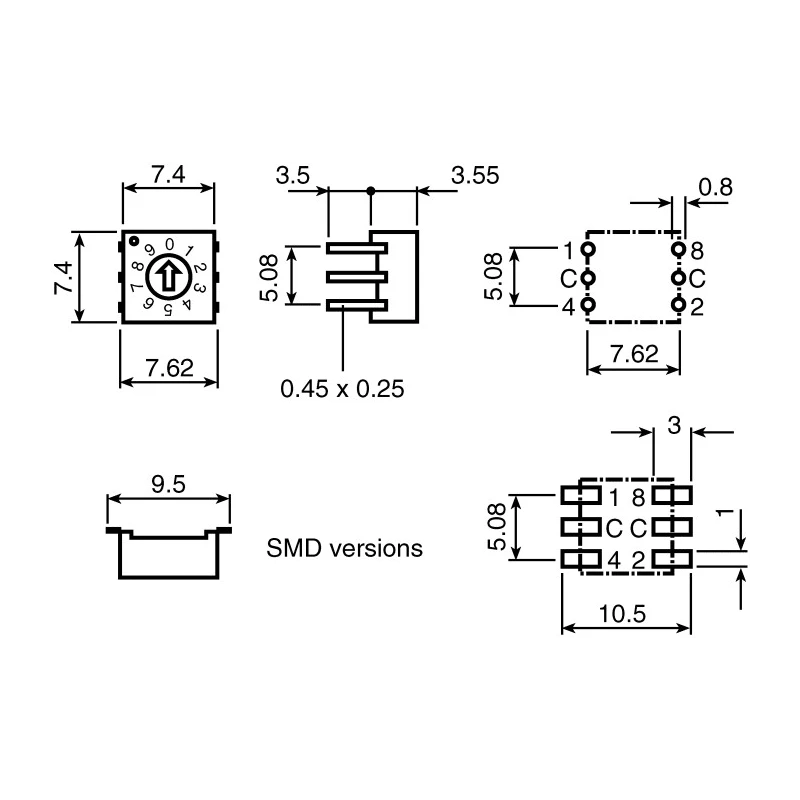

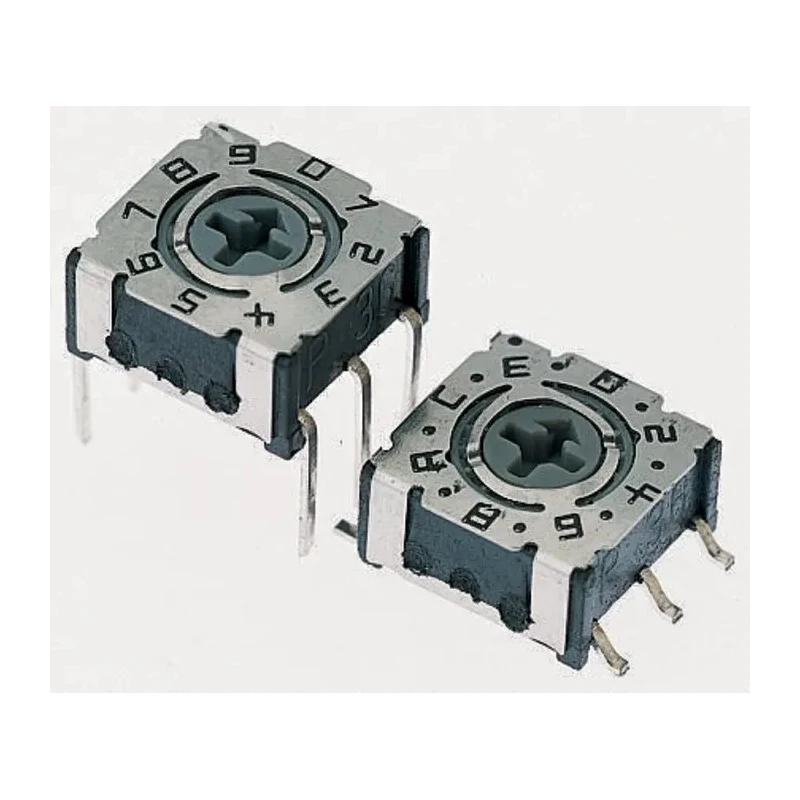

Hartmann Rotary Flush Rotary Coded DIP Switch Surface Mount P36S106
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Operating Temperature | -30 to +90°C |
| Model | P36S106 |
| Mount Type | Surface Mount |
| Actuator Type | Rotary Flush |
| Contact Rating | 150mA @ 24Vdc |
Key Features
- The switch is flux sealed and process washable for enhanced durability.
- Contact rating is 150mA at 24Vdc ensuring low power operation.
- Gold plated contacts provide optimal conductivity and corrosion resistance.
- Mechanical life exceeds 100,000 operations for extended usage.
- Operating temperature ranges from -30 to +90 degrees Celsius for versatile applications.
- Rated for positive detent for tactile feedback during operation.
- Resistant to max peak soldering temperatures of 340°C for 2 seconds or 260°C for 10 seconds.
- Designed with 5.08mm angular terminals in P36THR1 versions for easy PCB mounting.
Product Description
Hartmann P36S106 Rotary Flush Rotary Coded DIP Switch Surface Mount is a robust, rotary encoded low profile in-line switch specialized for precise digital encoding in electronic control systems.
Featuring a rotary flush actuator and surface mount design, this switch integrates seamlessly on printed circuit boards, supporting automated assembly processes. The unit is flux sealed and process washable, ensuring protection against contaminants and allowing high quality manufacturing workflows.
Its contact rating supports currents up to 150mA at 24V DC, with gold plated contacts to reduce oxidation and ensure reliable electrical connection over long operating cycles. Mechanical life is rated for more than 100,000 operations, suitable for industrial and laboratory applications requiring frequent switching.
Operating temperature ranges from -30 to +90 degrees Celsius, making it viable for use in industrial, automation, electrical, and HVAC systems under varying environmental conditions.
Positive detents provide tactile feedback for accurate position setting. The switch withstands peak soldering temperatures of up to 340°C for 2 seconds or 260°C for 10 seconds, conforming to standard SMT soldering profiles.
P36THR1 versions include 5.08mm left angular terminals for straightforward PCB mounting. The switch is flux sealed and process washable for enhanced durability. Contact rating is 150mA at 24Vdc ensuring low power operation.
Gold plated contacts provide optimal conductivity and corrosion resistance. Mechanical life exceeds 100,000 operations for extended usage. Operating temperature ranges from -30 to +90 degrees Celsius for versatile applications.
Rated for positive detent for tactile feedback during operation. Resistant to max peak soldering temperatures of 340°C for 2 seconds or 260°C for 10 seconds. Designed with 5.08mm angular terminals in P36THR1 versions for easy PCB mounting.
This switch is ideal for electronic industrial automation, electrical equipment, and control systems requiring precision rotary coding and robust surface-mount capabilities. Explore more products in Rotary Coded DIP Switch category on EnvMart for varied applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this switch is 150mA at 24V DC, ensuring low power operation.
It operates within a temperature range of -30 to +90 degrees Celsius, making it suitable for various applications.
The mechanical life of this switch exceeds 100,000 operations, suitable for frequent switching applications.
This model is designed with 5.08mm left angular terminals in P36THR1 versions for easy PCB mounting.
Yes, it can withstand peak soldering temperatures of up to 340°C for 2 seconds or 260°C for 10 seconds.
It features a rotary flush actuator, designed for precise digital encoding in electronic control systems.
This switch utilizes a surface mount design, allowing for seamless integration on printed circuit boards.
The contacts are gold plated, providing optimal conductivity and corrosion resistance.
It is ideal for electronic industrial automation, electrical equipment, and control systems requiring precision rotary coding.
Yes, it is flux sealed and process washable, enhancing its durability against contaminants.
The country of origin for this switch is Germany.
It is rated for positive detent, providing tactile feedback during operation for accurate position setting.
