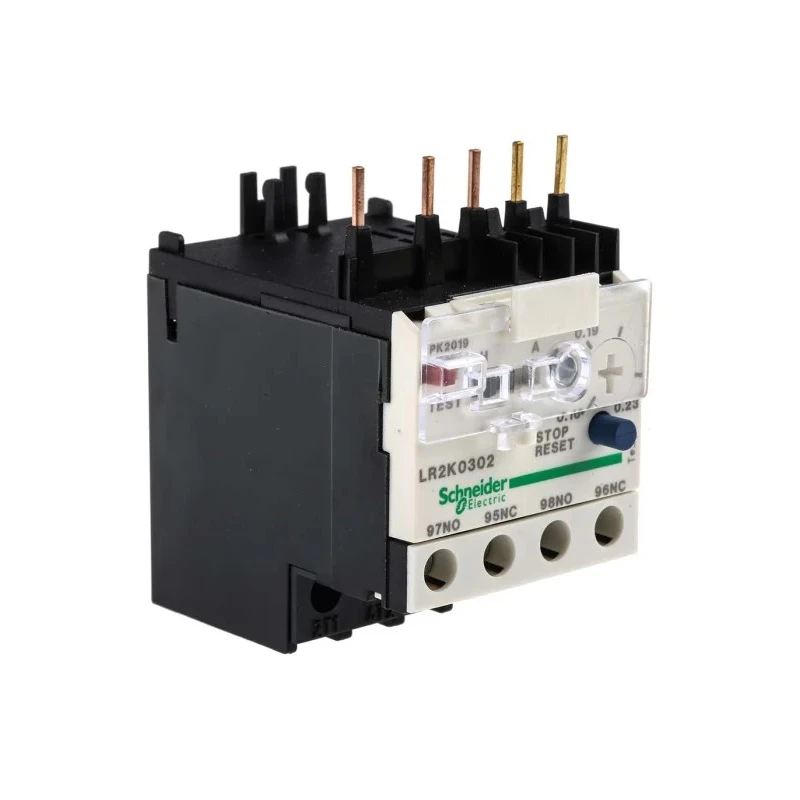

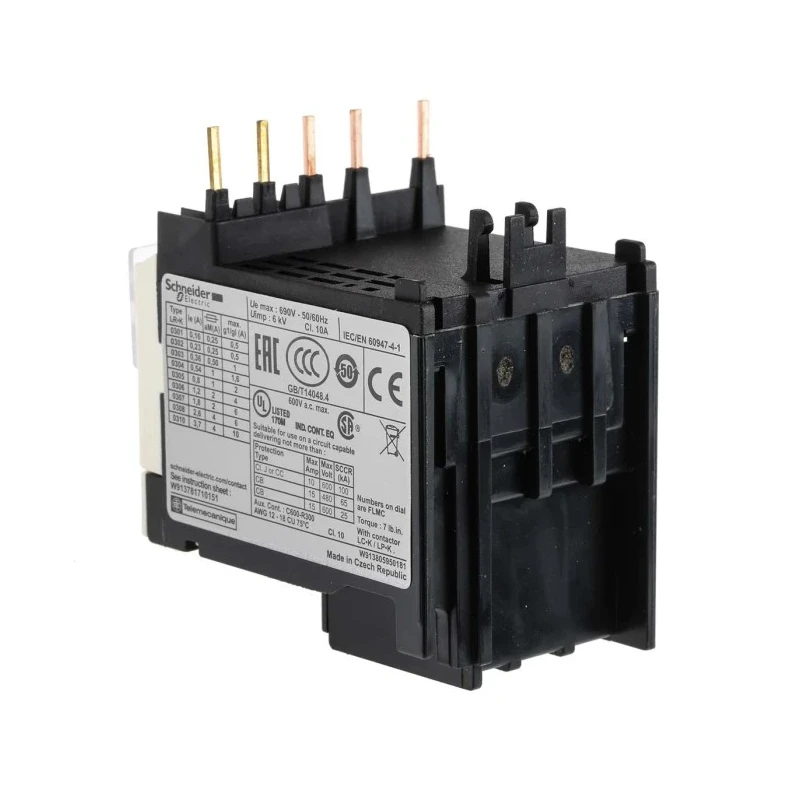

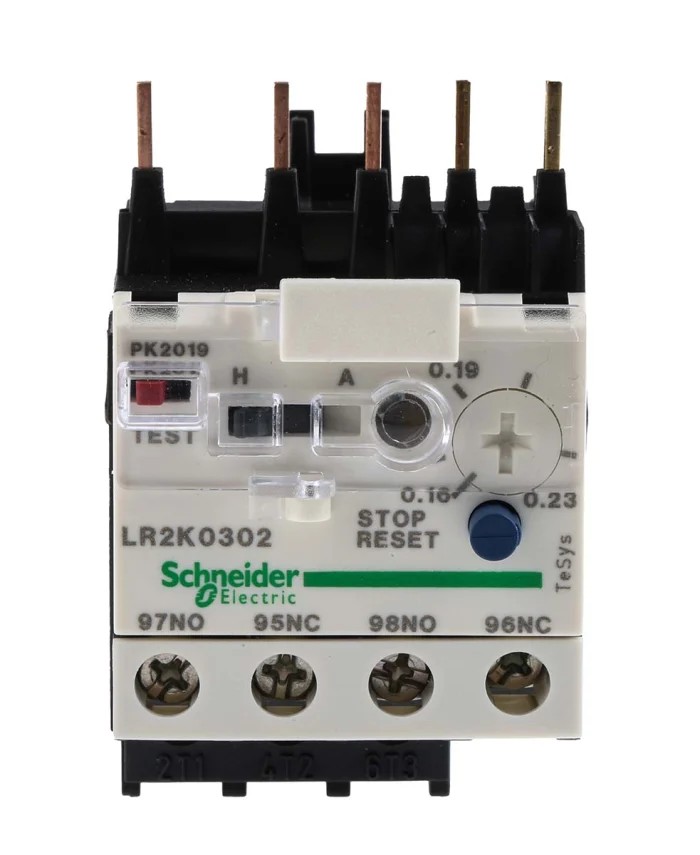

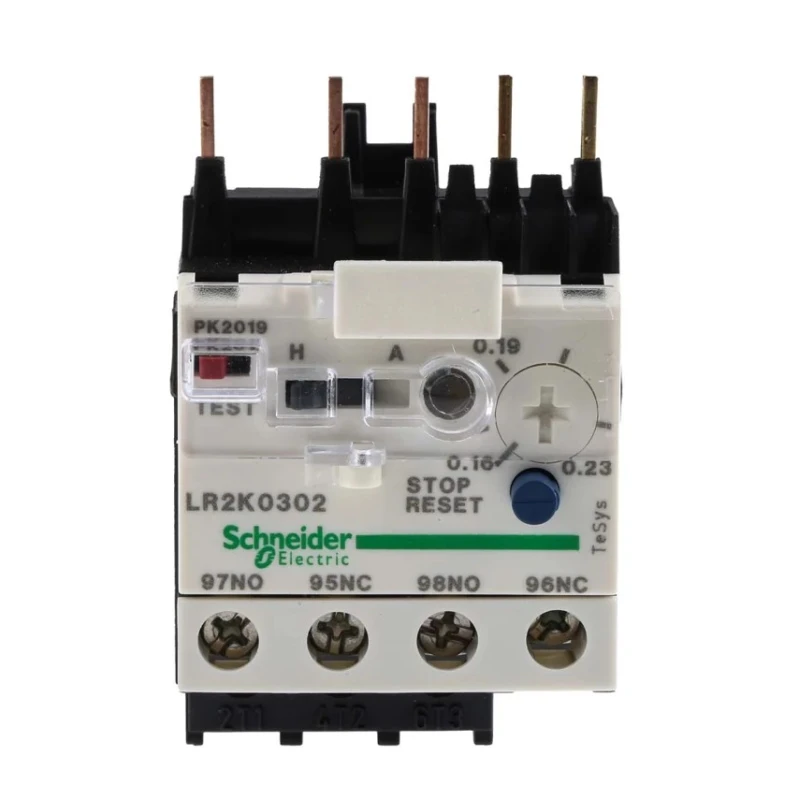

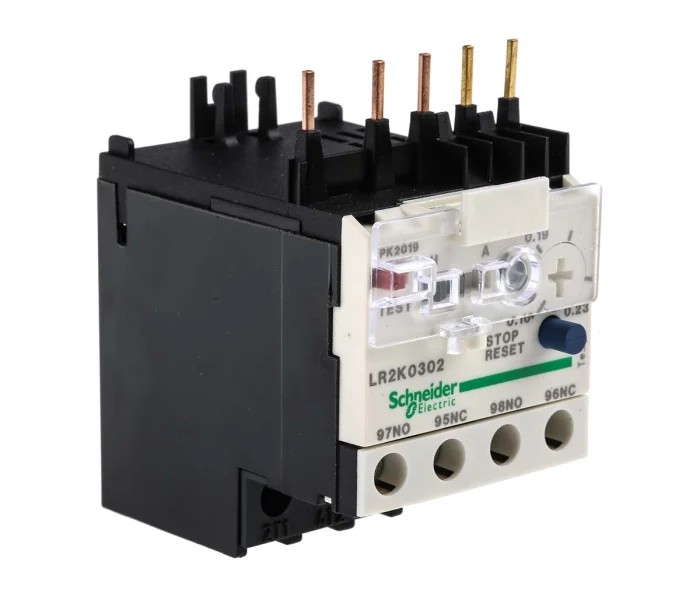

Schneider Electric LR2K Thermal Overload Relay 1 NO/1 NC 0.16A 0.23 A F.L.C 230mA Contact Rating 100 W 250 V DC LR2K0302

Name: Schneider Electric LR2K Thermal Overload Relay 1 NO/1 NC 0.16A 0.23 A F.L.C 230mA Contact Rating 100 W 250 V DC LR2K0302
Brand: Schneider Electric
SKU: 328830
Price: 78.62 USD
Availability: InStock



Category Thermal Overload Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	116mm
Model	LR2K0302
Depth	65mm
IP Rating	IP2X
Width	45mm
Mount Type	Direct
Series	LR2K
Power Rating	100W
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Supply Voltage	690V ac
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	230mA
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
Control Voltage	250, 690V dc
FLC Motor Rating	0.16, 0.23A
Adjustable Current Range	0.16 → 0.23 A

Key Features

Designed for motor overload protection with 1 NO and 1 NC relay contacts.
Adjustable current range from 0.16 to 0.23 A offers precise motor protection.
Equipped with automatic and manual reset functionality for operational flexibility.
IP2X rated for protection against solid objects and limited intrusion.
Compact 3-pole design with screw terminal connections ensures secure installation.
Rated for 100 W power and suitable for 250 V DC control voltage.
Wide temperature operation range from -20°C to 55°C for industrial environments.
Direct mount capability under contactors simplifies integration.

Product Description

Schneider Electric LR2K0302 thermal overload relay is a high-precision motor protection device designed for industrial automation and control applications. Featuring a 3-pole direct mount design with 1 normally open (NO) and 1 normally closed (NC) contact configuration, it provides reliable protection against motor overloads and faults.

The device supports an adjustable current range from 0.16 to 0.23 A with a full load current (F.L.C) rating of 0.23 A, and a contact rating of 230 mA. It operates at a rated power of 100 W and is compatible with control voltages of 250 and 690 V DC, while supply voltage supports up to 690 V AC.

This Thermal Overload Relay features automatic and manual reset methods, enabling flexible control and maintenance options. It has an IP2X ingress protection rating suitable for industrial environments and a temperature operating range from -20°C to 55°C, ensuring stable operation under varying conditions.

Installation is straightforward with screw terminal types, and the compact dimensions (Length: 116 mm, Width: 45 mm, Depth: 65 mm) facilitate easy integration in compact control panels. It conforms to international standards including IEC 60947, VDE 0660, BS 4941, and NFC 63-650 for assured quality and compliance.

Typical applications include motor protection in electrical automation setups, industrial machinery, HVAC systems, and manufacturing processes where safe and reliable overload detection is critical to equipment longevity and operational safety.

Designed for motor overload protection with 1 NO and 1 NC relay contacts. Adjustable current range from 0.16 to 0.23 A offers precise motor protection. Equipped with automatic and manual reset functionality for operational flexibility.

IP2X rated for protection against solid objects and limited intrusion. Compact 3-pole design with screw terminal connections ensures secure installation. Rated for 100 W power and suitable for 250 V DC control voltage. Wide temperature operation range from -20°C to 55°C for industrial environments.

Direct mount capability under contactors simplifies integration. Compliant with IEC 60947, VDE 0660, BS 4941, and NF C 63-650 standards. Explore more Schneider Electric relays and automation control devices on EnvMart for comprehensive industrial electrical solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The LR2K thermal overload relay has an adjustable current range from 0.16 to 0.23 A.

This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.

The power rating of the LR2K0302 is 100 W.

The maximum operating temperature for this relay is 55°C.

It supports both automatic and manual reset methods for operational flexibility.

The LR2K0302 has an IP2X ingress protection rating, suitable for protection against solid objects and limited intrusion.

The dimensions of the LR2K0302 are 116 mm in length, 45 mm in width, and 65 mm in depth.

This model is compatible with supply voltages up to 690 V AC and control voltages of 250 and 690 V DC.

It features a direct mount capability, simplifying integration under contactors.

The relay contact current rating for this model is 230 mA.

The LR2K0302 complies with international standards including IEC 60947, VDE 0660, BS 4941, and NFC 63-650.

This thermal overload relay is suitable for motor protection in electrical automation setups, industrial machinery, HVAC systems, and manufacturing processes.
