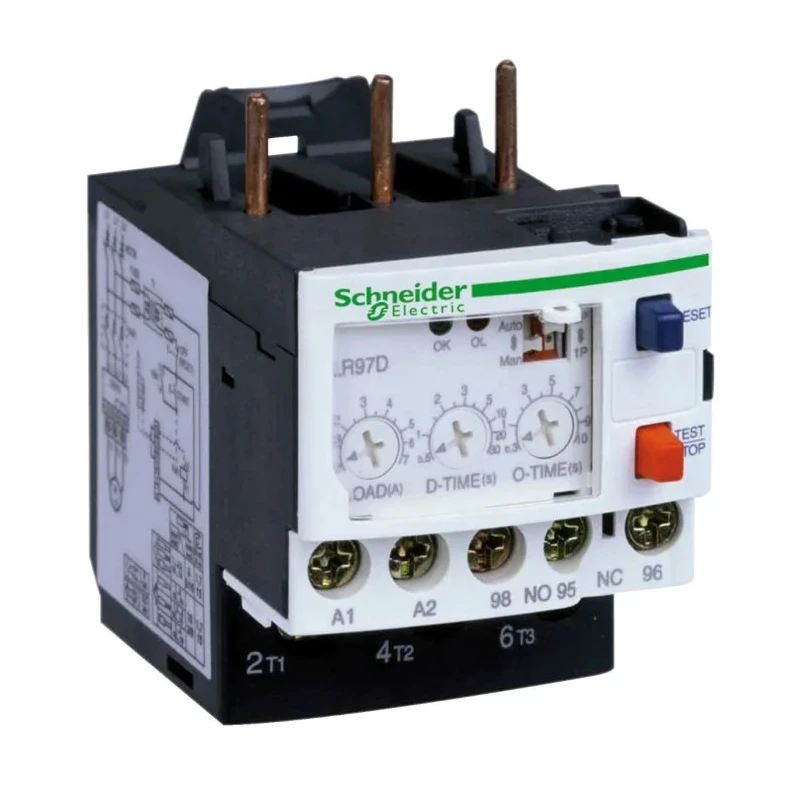

Schneider Electric LR97 D Overload Relay 1 NO/1 NC 0.3-1.5 A F.L.C, 1.5A Contact Rating, 55 W Power Rating LR97D015B

Schneider Electric LR97D015B Overload Relay is a high-quality electronic overload relay tailored for industrial and machine protection applications. It is engineered to protect motors from overload conditions where machinery may face difficult starts, jamming, or high resistive torque and mechanical failure.

This overload relay features 1 normally open and 1 normally closed contact, providing versatile control. The relay supports an adjustable current range from 0.3 to 1.5 A, including a full load current rating of 1.5 A and contact rating of 1.5 A, delivering reliable and precise overload protection with a power rating of 55 watts.

Operation is enhanced with automatic and manual reset capabilities along with LED indicators that display voltage status, starting, steady state operation, overload, and trip conditions. The device monitors critical trip statuses such as over-current, rotor lock, and phase failure across all three phases (L1, L2, L3).

The compact relay has dimensions of 64.5 mm in length, 45 mm in width, and 67.5 mm in depth, suitable for direct mounting. It operates effectively within a temperature range from -25°C to 60°C and is protected by an IP20 rating suitable for typical electrical panel environments.

The relay terminals utilize screw connections assuring secure electrical contacts. Conforming to international standards including CSA, GOST, IEC 60255-6, IEC 60947, and UL provides confidence in quality and compliance for demanding industrial applications.

Typical use cases include automation and control gear in electrical panels, contactor overload protection in manufacturing, motor control centers, and other industrial, automation, and commercial electrical systems requiring dependable motor protection.

Features a 1.5 A full load current (F.L.C) rating suitable for diverse motor controls. Includes 1 normally open (NO) and 1 normally closed (NC) contact configuration. Power rated at 55 W ensuring reliable overload protection.

Equipped with both automatic and manual reset methods for operational flexibility. Robust construction with IP20 protection rating for indoor electrical installations. LED status indication for voltage, starting, steady state, overload, and trip conditions.

Trip status monitors include over-current, rotor locked, and phase failure detection (L1, L2, L3). Compact dimensions: 64.5 mm length, 45 mm width, 67.5 mm depth. Designed to operate in temperature ranges from -25°C to 60°C.

Direct mount type with screw terminals for easy installation. Compliant with CSA, GOST, IEC 60255-6, IEC 60947, and UL standards.
