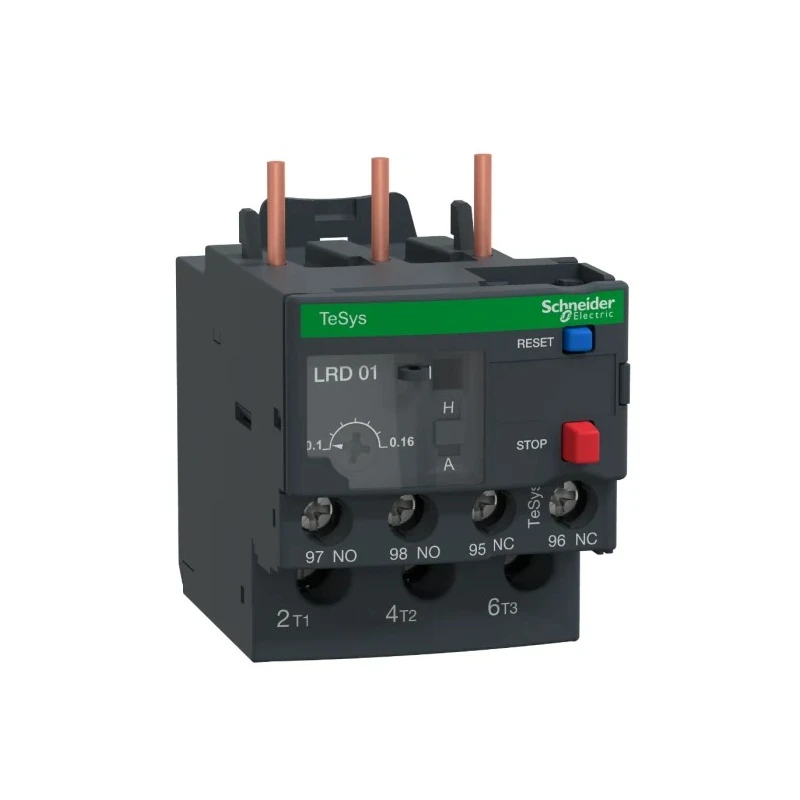

Schneider Electric Overload Relay 1 NO/1 NC, Adjustable Current 0.1 to 0.16 A, 160mA Contact Rating, 60 W Power, LRD01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 123mm |
| Model | LRD01 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 60W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 160mA |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 0.1, 0.16A |
| Adjustable Current Range | 0.1 → 0.16 A |
| Schneider Electric DOL Starter, DOL, 5.5 kW, 500 V ac, IP657Brand | Schneider Electric |
Key Features
- The relay features 1 NO and 1 NC contact configuration for versatile control.
- Power rating of 60 W supports efficient motor operation.
- Adjustable current range ensures precise motor overload protection.
- Equipped with manual and automatic reset methods for flexible usage.
- Designed with screw terminal type for secure and easy wiring.
- Compact dimensions (123 mm length, 45 mm width, 70 mm depth) enable space-saving installation.
- IP20 protection rating suits standard industrial environments.
- Operating temperature range of -20°C to 60°C supports diverse conditions.
Product Description
Schneider Electric LRD01 overload relay is a dependable three-pole thermal protection relay designed for motor protection applications. It features an adjustable current range from 0.1 A up to 0.16 A and a relay contact current rating of 160mA, ensuring accurate overload detection on motor circuits.
This relay is supplied with a power rating of 60 W and supports direct mounting types suitable for LC1 type contactors from the TeSys range. The device offers one normally open (1 NO) and one normally closed (1 NC) contact, facilitating versatile control circuit configurations.
LRD01 overload relay includes both manual and automatic reset methods, allowing operators to choose the most appropriate resetting approach during motor protection resets. The screw terminal design ensures robust electrical connections and ease of installation in industrial control panels.
Compact dimensions of 123 mm (length) × 45 mm (width) × 70 mm (depth) and an IP20 protection rating allow installation in standard industrial environments with moderate protection needs. The relay operates safely within temperature limits of -20°C to 60°C.
Schneider Electric’s LRD01 complies with several international standards including UL 60947-5-1, CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1 and EN/IEC 60947-5-1, ensuring high safety and performance reliability for demanding industrial and automation use cases.
The relay is ideal for motor thermal protection in industrial, automation, manufacturing, and control applications. Optional pre-wiring kits and assembly supports for DIN rail mounting improve installation flexibility. Its compensated thermal design reduces nuisance tripping and extends motor lifespan.
Choose this Schneider Electric Overload Relay LRD01 for precise, reliable, and certified motor overload protection. Browse additional Schneider Electric relays and contactors at EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of the LRD01 overload relay is from 0.1 A to 0.16 A.
This overload relay has a power rating of 60 W.
The LRD01 features a contact configuration of 1 normally open (1 NO) and 1 normally closed (1 NC).
The maximum operating temperature for the LRD01 is 60°C.
It is designed with screw terminals for secure and easy wiring.
The dimensions of the LRD01 are 123 mm in length, 45 mm in width, and 70 mm in depth.
The relay contact current rating for this model is 160 mA.
Yes, the LRD01 includes both manual and automatic reset methods.
The LRD01 has an IP20 protection rating, suitable for standard industrial environments.
The supply voltage for this overload relay is 690 V AC.
The minimum operating temperature for the LRD01 is -20°C.
The LRD01 is designed for direct mounting types suitable for LC1 type contactors.
