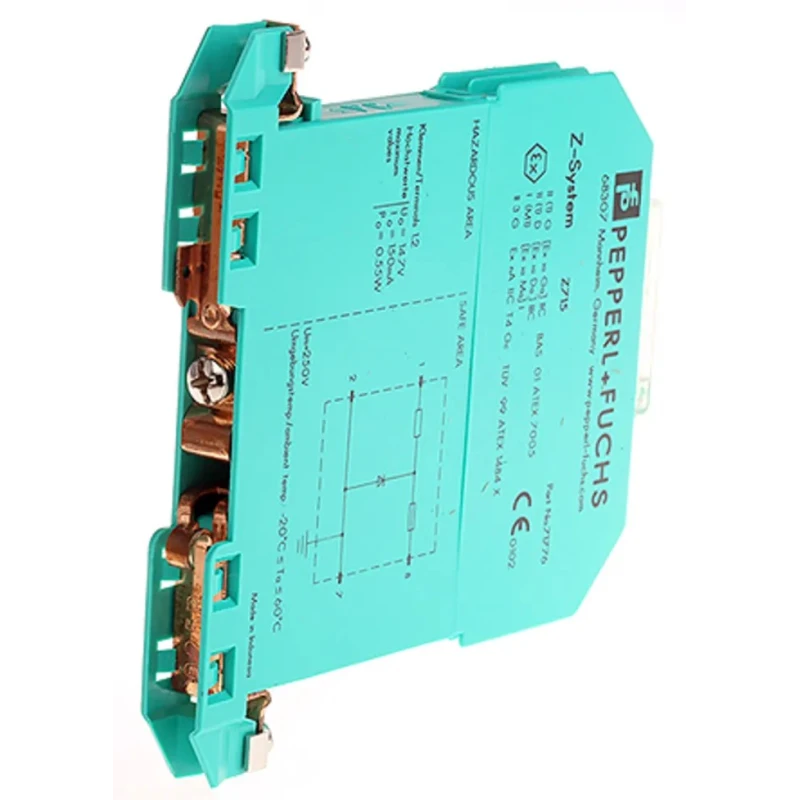

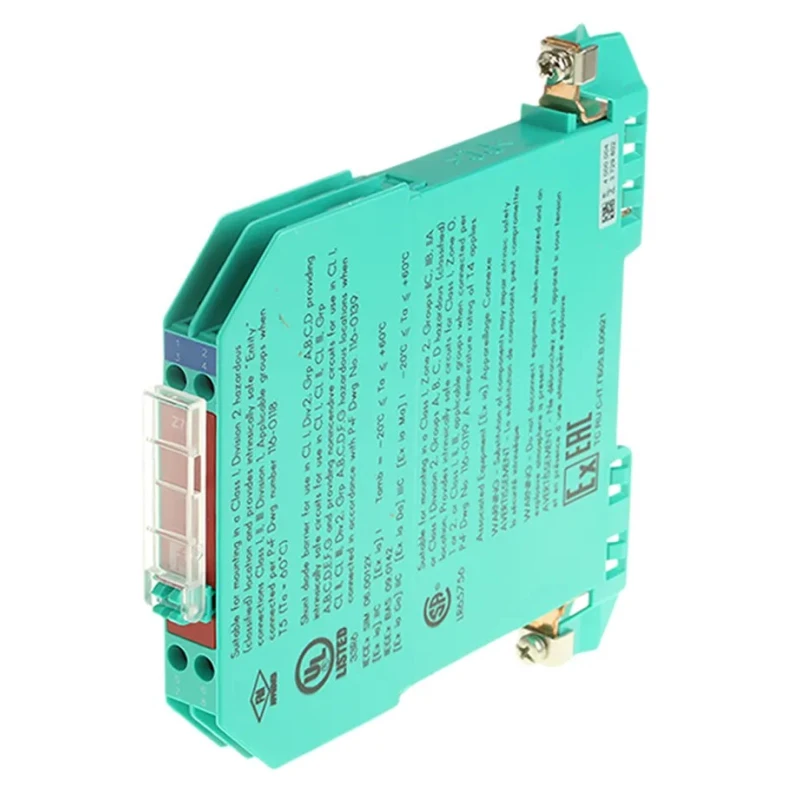

Pepperl + Fuchs Zener Barrier, ATEX Certified, Single Channel, 13.3 V DC, 150 mA, DIN Rail Mount Z715
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | Z715 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | Z715 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 13.3V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | TUV, IEC, EN, CE |
| Barrier Type | Zener Barrier |
| Safety Current Resistance | 107Ω |
| Maximum Safety Current | 150mA |
| Maximum Safety Voltage | 250V |
Key Features
- The barrier type is a Zener Barrier ensuring intrinsic safety in explosive atmospheres.
- Mounts easily on DIN rail for industrial automation setups.
- Equipped with screw terminal connections for secure wiring.
- Offers an IP20 rating protecting against solid objects larger than 12.5 mm.
- Certified for hazardous area use under ATEX standards and approved by TUV, IEC, EN, CE.
- Operates reliably between temperatures of -20°C to 60°C.
- Designed with a safety current resistance of 107Ω for fault tolerance.
- Limits maximum safety voltage to 250V ensuring safe energy transfer.
Product Description
Pepperl + Fuchs Z715 Zener Barrier is a high-quality single channel zener barrier designed for intrinsic safety in hazardous locations. Operating at 13.3 V DC with a maximum safety current of 150 mA, this DIN rail mount device is perfect for controlling energy levels between safe and hazardous areas. The barrier type ensures safe operation in explosive atmospheres and meets ATEX certification requirements.
Constructed from durable Makrolon®, it provides robust electrical isolation with a safety current resistance of 107Ω, limiting the energy transferred to hazardous zones to safe levels incapable of ignition. Its screw terminal type connections facilitate reliable wiring in industrial environments.
The Z715 supports an operating temperature range from -20°C to 60°C and features an IP20 rating, preventing ingress of larger solid objects while enabling ventilation. It complies with multiple international standards including TUV, IEC, EN, and CE, ensuring global compliance and safety assurance.
Typical applications include use as isolation barriers and signal conditioners in process automation systems, particularly for transmitters, solenoid valves, and relays in hazardous environments. The device effectively isolates intrinsically safe circuits from non-intrinsically safe circuits for safe signal transmission and protection.
ATEX-certified single channel zener diode barrier for intrinsic safety. DIN rail mount type facilitates easy installation in industrial control panels. Electrical isolation with 107Ω safety current resistance limits energy transfer.
IP20 rated enclosure providing protection against contact with solid objects. Wide operating temperature ensures stable operation in industrial environments. Meets international standards for hazardous area equipment. Ideal for use in process automation and control systems requiring explosion protection.
The product is manufactured in Indonesia, assuring quality and reliability. Install the Pepperl + Fuchs Z715 for safe and effective monitoring and control in hazardous locations. Explore more signal conditioners and isolators in the EnvMart catalog for comprehensive industrial automation solutions.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Z715 is 60°C.
This model operates at a supply voltage of 13.3 V DC.
The Z715 features a single channel design.
The safety current resistance is 107Ω, which helps in fault tolerance.
It is designed for DIN rail mounting, facilitating easy installation in industrial environments.
The Z715 has an IP20 rating, providing protection against solid objects larger than 12.5 mm.
This Zener barrier is ATEX certified for use in hazardous areas.
The maximum safety current is 150 mA.
It complies with TUV, IEC, EN, and CE standards.
The minimum operating temperature for the Z715 is -20°C.
It features screw terminal connections for secure wiring.
The Z715 is manufactured in Indonesia.
