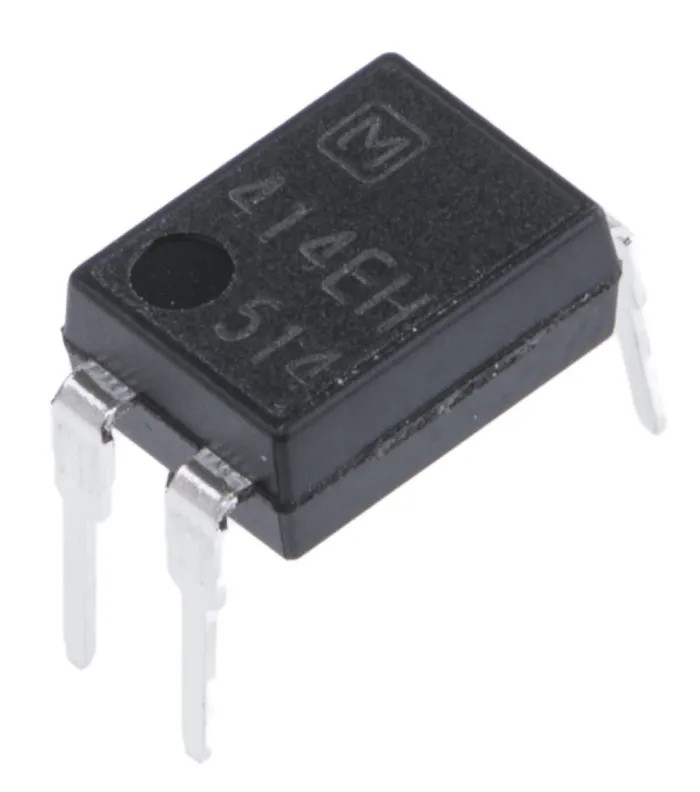

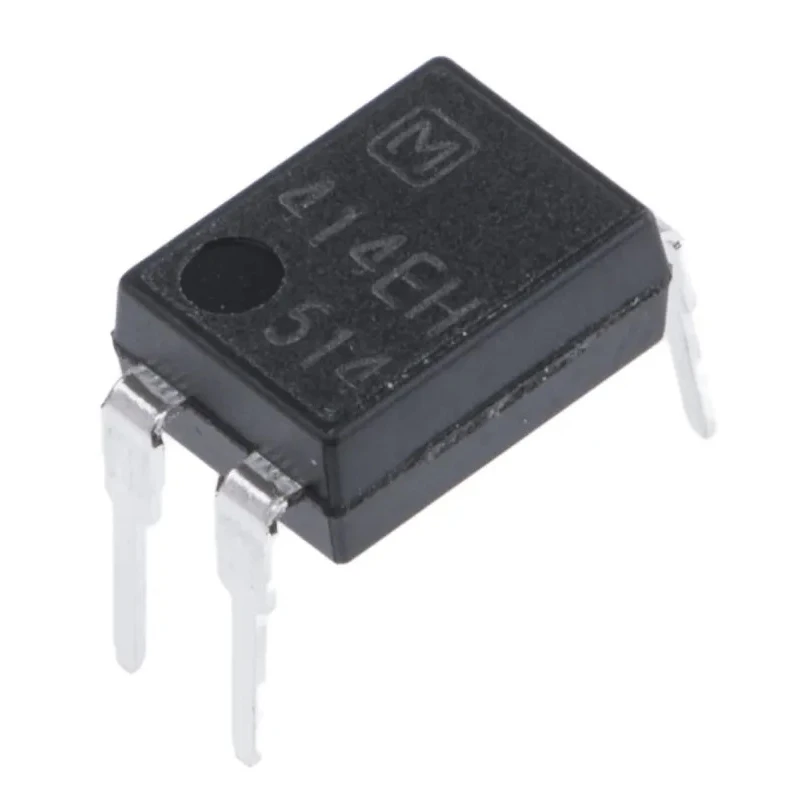

Panasonic DC Input MOSFET Output Optocoupler Through Hole 4-Pin DIP AQY414EH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Model | AQY414EH |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Output type | MOSFET |
| Series | GE 1 Form B |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | VDE approved, CSA (Certified), BSI Approved, UL (Recognised) |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 0.2ms |
| Typical Fall Time | 3.0ms |
| Panasonic AQY210EH DC Input Optocoupler, Through Hole, 4-Pin DIPBrand | Panasonic |
Key Features
- Features a DC input with MOSFET output type for effective signal isolation.
- Mount type is Through Hole with a 4-pin DIP package suitable for PCB mounting.
- Maximum forward voltage of 1.5V with a maximum input current of 50mA.
- Operating temperature range from -40°C to 85°C ensuring robust performance.
- Typical rise and fall times are 0.2ms and 3.0ms respectively for responsive switching.
- High isolation voltage rating of 5kVrms for safe operation in sensitive circuits.
- UL Recognised and approvals from VDE, CSA, BSI ensure quality and compliance.
- Ideal for controlling loads in test instruments, power supplies, sensors, and data communication equipment.
Product Description
Panasonic AQY414EH DC Input Optocoupler is a solid state relay with MOSFET output implemented in a Through Hole 4-pin DIP package measuring approximately 9.3 x 8.8 x 3.9 mm. This component features a DC input with a maximum forward voltage of 1.5V and input current up to 50mA, enabling sensitive control signals to manage various electrical loads efficiently.
The typical rise time of 0.2 milliseconds and fall time of 3.0 milliseconds ensure fast switching capabilities, making it suitable for precision control in industrial, laboratory, and electronics manufacturing applications. The component supports an operating temperature range from -40°C to 85°C, offering reliability under diverse environmental conditions.
With a high isolation voltage of 5kVrms, the AQY414EH provides strong electrical separation, reducing interference and protecting sensitive circuitry. The device holds multiple approvals including UL recognition for US and Canada markets, VDE, CSA, and BSI certifications, indicating its compliance with international safety standards.
This optocoupler is ideal for use in controlling various loads such as test and measurement equipment, data communication devices, power supply modules, and sensor arrays. The tape & reel packaging facilitates automated assembly and handling in production environments.
DC input with MOSFET output ensures effective electrical isolation and low on-resistance. 4-pin DIP Through Hole package measures 9.3x8.8x3.9 mm for easy PCB integration. High isolation voltage (5kVrms) supports safe and interference-free operation.
Wide operating temperature (-40°C to 85°C) for versatile application environments. Fast switching with 0.2 ms rise time and 3.0 ms fall time for precise control. UL Recognised and certified by VDE, CSA, BSI for trusted quality standards.
Suitable for industrial, laboratory, manufacturing, and communication device use cases. Explore the Electronics Components category at EnvMart for more reliable Optocouplers and related components to fit your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 50mA.
It operates within a temperature range of -40°C to 85°C.
The typical rise time is 0.2 milliseconds, and the fall time is 3.0 milliseconds.
This model features a MOSFET output type for effective signal isolation.
The AQY414EH has a high isolation voltage rating of 5kVrms.
It comes in a 4-pin DIP package and is designed for Through Hole mounting.
This optocoupler is UL Recognised and certified by VDE, CSA, and BSI.
The maximum forward voltage for this model is 1.5V.
It is packaged in tape & reel format, facilitating automated assembly and handling.
The dimensions of the 4-pin DIP package are approximately 9.3 x 8.8 x 3.9 mm.
This optocoupler has 1 channel.
