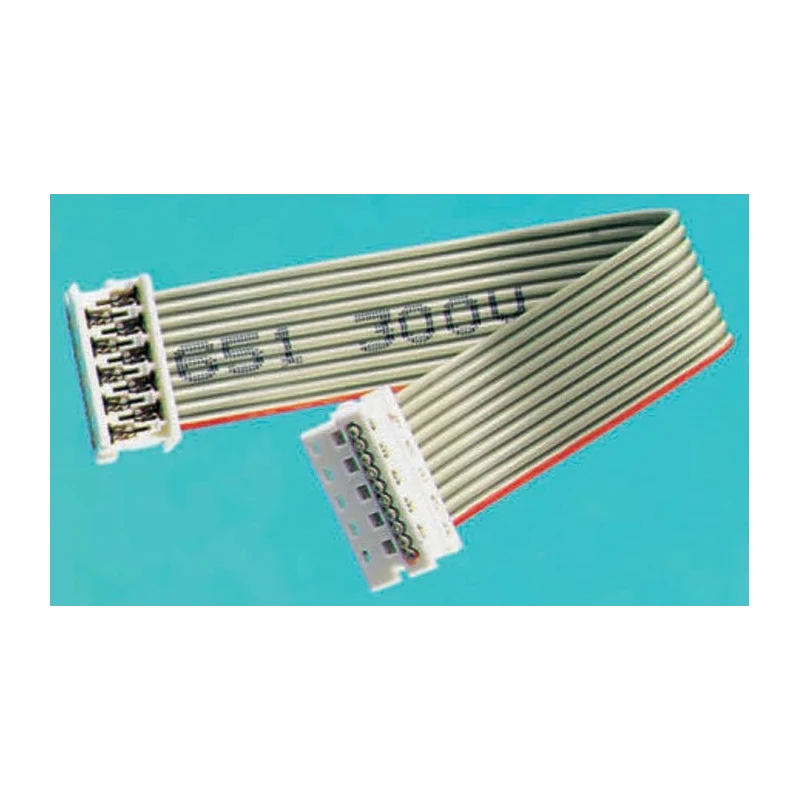

Molex Picoflex Series Flat Ribbon Cable, 200 mm Length, Picoflex IDC to Picoflex IDC 92315-1420
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Cable Length | 200mm |
| Contact Material | Phosphor Bronze alloy, tin plated |
| Cable insulation | Gray PVC |
| Series | Picoflex |
| Cable Type | Flat |
| Jacket Material | Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Picoflex IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
| IDT housing Material | Nylon 6/6, UL 94V-0 |
| 14 way jumper cable 1.27mm pitch 150mmBrand | TE Connectivity |
Key Features
- Constructed with 1.27 mm pitch Picoflex PF-50 cable assemblies ensuring precise connector fitment.
- Features two 90327 Series Picoflex IDT connectors with C-style on UL 2651, 28 AWG (7 strand) ribbon cable.
- Cable jacket made of grey polyester with gray PVC insulation for durability.
- Contact material uses phosphor bronze alloy plating with tin for excellent conductivity and corrosion resistance.
- IDT housing composed of Nylon 6/6 rated UL 94V-0 for flame retardant properties.
- RoHS compliant ensuring environmentally safe manufacture and use.
- Ideal for automotive and consumer electronics applications needing high vibration and shock resistance.
- 50% space savings compared to traditional pitches plus low mated height of 6.4 mm for compact design.
Product Description
Molex 92315-1420 Picoflex Series Flat Ribbon Cable is a high-quality 200 mm length wire to board cable assembly, designed for reliable connections in constrained spaces. It features Picoflex IDC connectors on both ends, making it suitable for high-density electronic applications.
This cable assembly uses 1.27 mm pitch Picoflex PF-50 cable assemblies with two 90327 Series Picoflex IDT connectors which are C-style and compliant with UL 2651 standards. The ribbon cable consists of 28 AWG conductors made of 7-strand wire, optimizing flexibility and conductivity.
The jacket is made from durable grey polyester with gray PVC insulation, providing mechanical protection and electrical insulation. Contacts are phosphor bronze alloy with tin plating, ensuring excellent connectivity and corrosion resistance. The IDT housing material is Nylon 6/6 with UL 94V-0 flame retardant rating, ensuring safety in demanding environments.
This product is RoHS compliant, confirming adherence to environmental safety standards. Its compact profile results in a lower mated height of just 6.4 mm, offering a 50% saving in space over traditional pitches. Integral strain relief and excellent polarization features enhance performance and durability.
The Molex Picoflex Series cable assemblies are well suited for industries including automotive and consumer electronics where resistance to vibration and shock is critical. Their pre-terminated design saves time and investment in tooling during assembly.
1.27 mm pitch Picoflex PF-50 cable assembly with two 90327 Series Picoflex IDT connectors. C-style connectors on UL 2651 rated 28 AWG, 7 strand ribbon cable. Gray polyester jacket with PVC insulation for durability. Phosphor bronze alloy contacts with tin plating.
Nylon 6/6 UL 94V-0 rated IDT housing. RoHS compliant for environmental safety. Low profile with 6.4 mm mated height and 50% space saving. Suitable for automotive and consumer electronics requiring vibration resistance. Explore the Electronics & Electricals category on EnvMart for more reliable Ribbon Cable assemblies and Wires & Cables solutions for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex Picoflex Series Flat Ribbon Cable has a length of 200 mm.
It features two Picoflex IDC connectors, specifically the 90327 Series, on both ends.
The cable assembly uses a 1.27 mm pitch, which allows for high-density connections.
The ribbon cable consists of 28 AWG conductors made of 7-strand wire.
The cable jacket is made of grey polyester, while the insulation is gray PVC.
The mated height of this model is 6.4 mm, providing a compact design.
Yes, this flat ribbon cable is RoHS compliant, ensuring it meets environmental safety standards.
The contacts are made of phosphor bronze alloy with tin plating for improved conductivity and corrosion resistance.
It is ideal for automotive and consumer electronics applications that require high vibration and shock resistance.
The IDT housing is made of Nylon 6/6 and is rated UL 94V-0 for flame retardant properties.
The Molex Picoflex Series Flat Ribbon Cable is manufactured in India.
It provides 50% space savings compared to traditional pitches, allowing for more compact designs in electronic applications.
