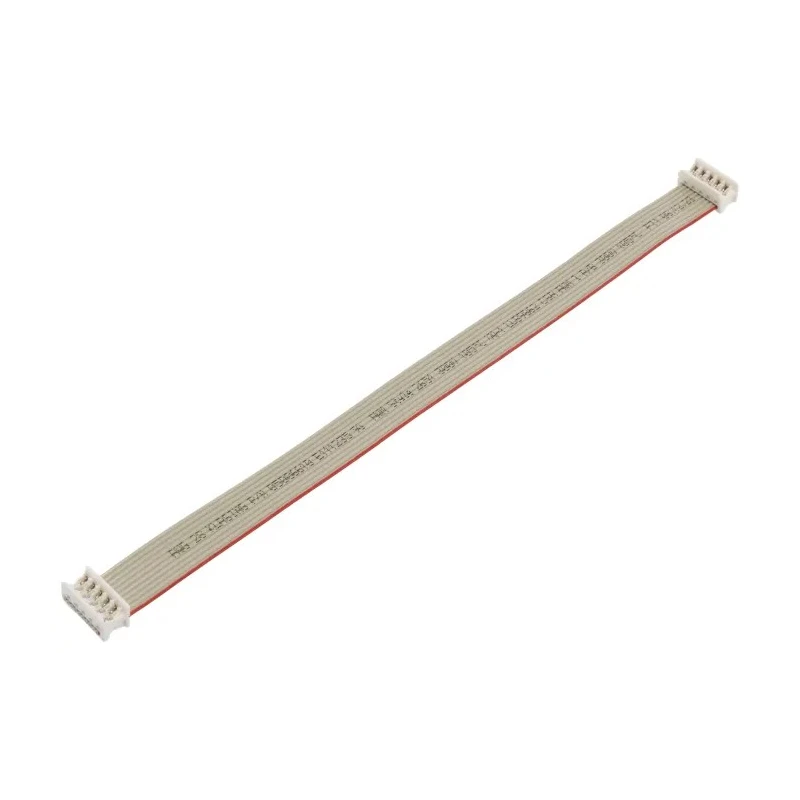

Molex Picoflex Series Flat Ribbon Cable 200 mm Length, Picoflex IDC to Picoflex IDC 92315-1020

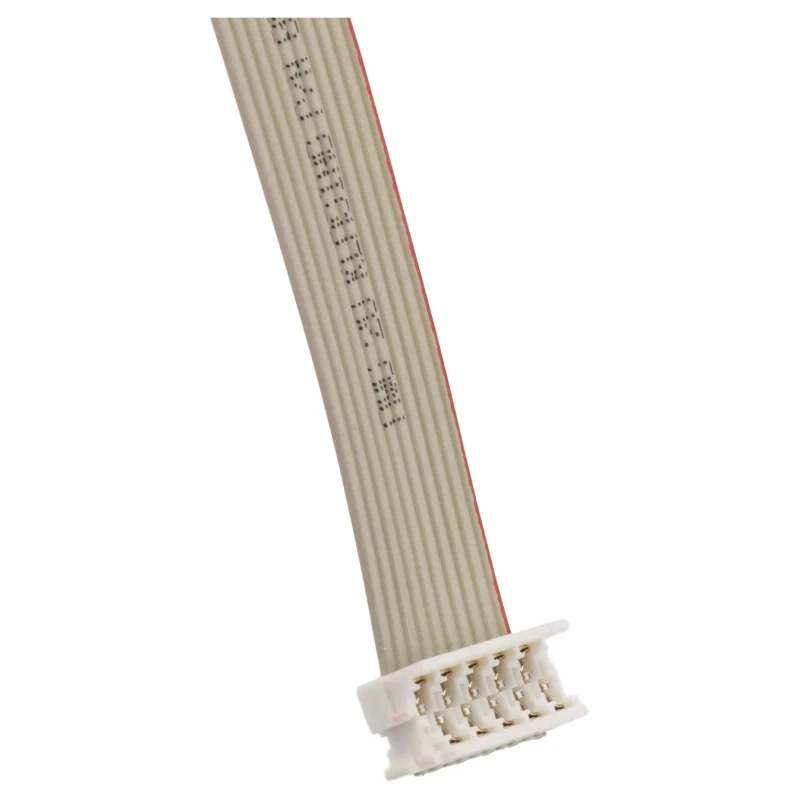

Molex 92315-1020 Picoflex Series Flat Ribbon Cable is designed for precise electrical and automation applications that require compact and reliable wiring solutions. This ribbon cable features a 1.27 mm pitch and a length of 200 mm. It is terminated with female Picoflex IDC connectors on both ends, facilitating straightforward installation and versatile connectivity.

The cable consists of 10 circuits arranged in a flat 28 AWG configuration with a grey polyester jacket, providing robust mechanical protection and flexibility. Its unscreened nature makes it ideal for internal connections where electromagnetic interference is not significant. The cable meets RoHS compliance standards, ensuring it is environmentally safe for use in various industries.

This ribbon cable supports a maximum voltage of 250 V and is compatible with Molex Picoflex PF-50 header series connectors, ensuring seamless integration in PCB connections and electronic devices. Its phosphor bronze alloy, tin-plated contacts and nylon 6/6 UL 94V-0 rated IDT housing further enhance durability and reliable signal transfer.

Applications for this cable include automation system wiring, machinery signal connection, customized multi-point wiring assemblies, and other electronic interconnect solutions requiring a compact and precise pitch. The 1.27 mm pitch size optimizes space efficiency and compatibility with a range of connectors and devices.

Equipped with dual-ended female Picoflex IDC connectors for versatile connections. Features 10 circuits in a compact 1.27 mm pitch layout. Constructed with a flat 28 AWG cable and grey polyester jacket for durability. Unscreened design suitable for applications where electromagnetic interference is minimal.

RoHS compliant ensuring adherence to environmental and safety standards. Maximum operating voltage rating of 250V for reliable performance. Compatible with Molex Picoflex PF-50 headers for seamless integration. Ideal for PCB connections, automation systems, and customized multi-connection assemblies.

Jacket material is polyester with gray PVC cable insulation for enhanced protection. Connector contacts are made of phosphor bronze alloy with tin plating for conductivity.

This product is suitable for industrial, automation, electronics manufacturing, laboratory, and commercial applications where efficient and compact wiring is essential. Available exclusively under the Molex brand, this Picoflex series cable ensures quality, reliability, and compliance with international standards. Browse our full selection of Ribbon Cables and connectors for all your wiring needs at EnvMart.
