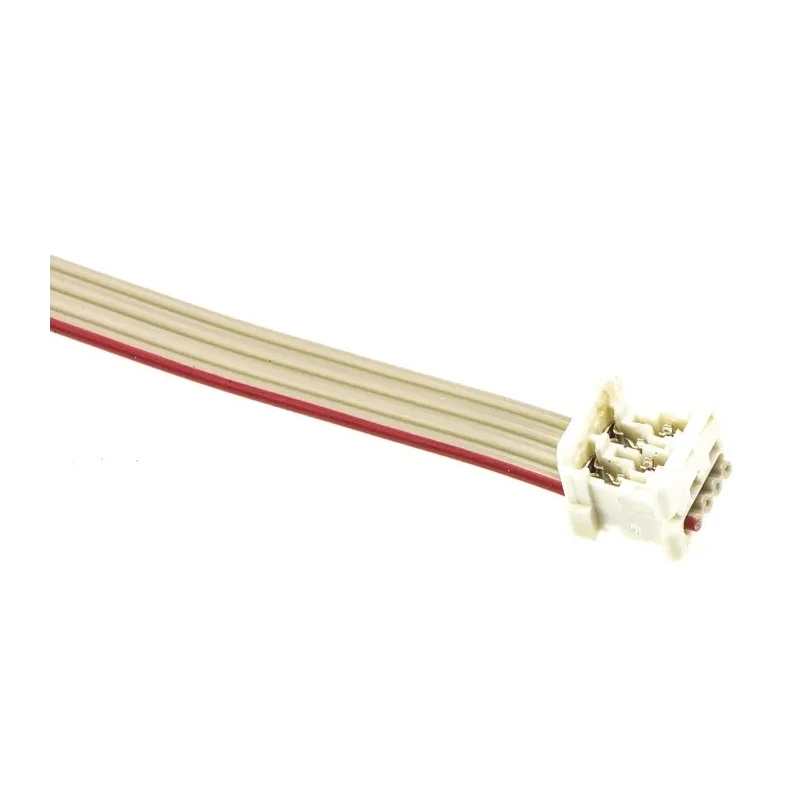

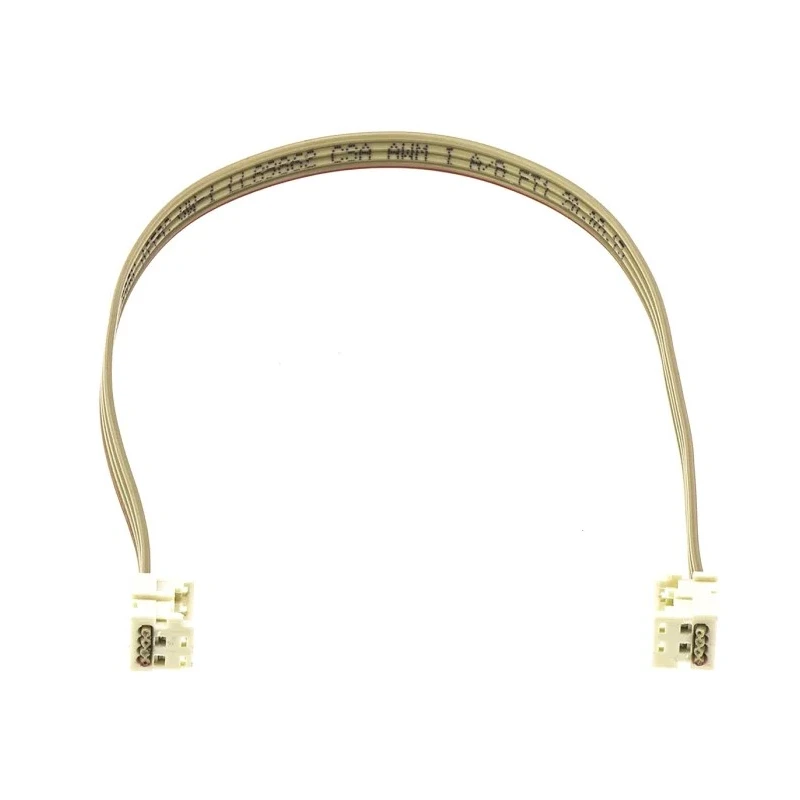

Molex Picoflex Series Flat Ribbon Cable 200 mm Length Picoflex IDC to Picoflex IDC 92315-0420

The Molex 92315-0420 Picoflex Series flat Ribbon Cable is a premium 200 mm length wire-to-board cable assembly designed for use with Picoflex IDC connectors. Featuring a 1.27 mm pitch, this cable assembly provides a reliable and compact solution for high-density electronic applications.

The cable incorporates a flat 28 AWG (7 strand) ribbon design with cable insulation made from gray PVC and a durable polyester jacket in grey color. The contacts utilize a phosphor bronze alloy with tin plating to ensure excellent electrical conductivity and corrosion resistance. The IDT housing is manufactured from nylon 6/6 with an UL 94V-0 rating, making it flame retardant and safe for industrial use.

This cable assembly mates perfectly with Molex Picoflex PF-50 headers including series 90325, 90800, 90779, 90715, and 90814, providing designers flexibility for automotive, consumer electronics, and industrial environments. The design achieves up to 50% space saving compared to traditional connector pitches.

The 1.27 mm pitch cable assembly includes cable insulation of gray PVC and a polyester jacket in grey color. Contact material is phosphor bronze alloy with tin plating ensuring good electrical conductivity and corrosion resistance.

IDT housing material is nylon 6/6 with UL 94V-0 flame retardant rating for safety. The cable features a flat construction and length of 200 mm for compact, high-density wiring applications. Designed to mate with series 90325, 90800, 90779, 90715, and 90814 Picoflex PF-50 headers.

RoHS compliant, meeting environmental regulations for hazardous substances. Suitable for automotive, consumer electronics, and industrial applications requiring miniature wire-to-board connectors. Offers 50% space savings compared to traditional pitches and includes integral strain relief.

High resistance to vibration and shock ensures durability in demanding conditions.

These cable assemblies provide excellent polarization features and integral strain relief, contributing to reliability under conditions involving vibration and shock. The product meets safety and environmental standards including RoHS compliance, UL (E29179), and CSA (LR19980-181) approvals.

This cable is ideal for engineers and designers looking for a compact and dependable connection solution in various industrial, automotive, and consumer electronics projects. It enables efficient use of PCB space and simplifies wiring harness design.
