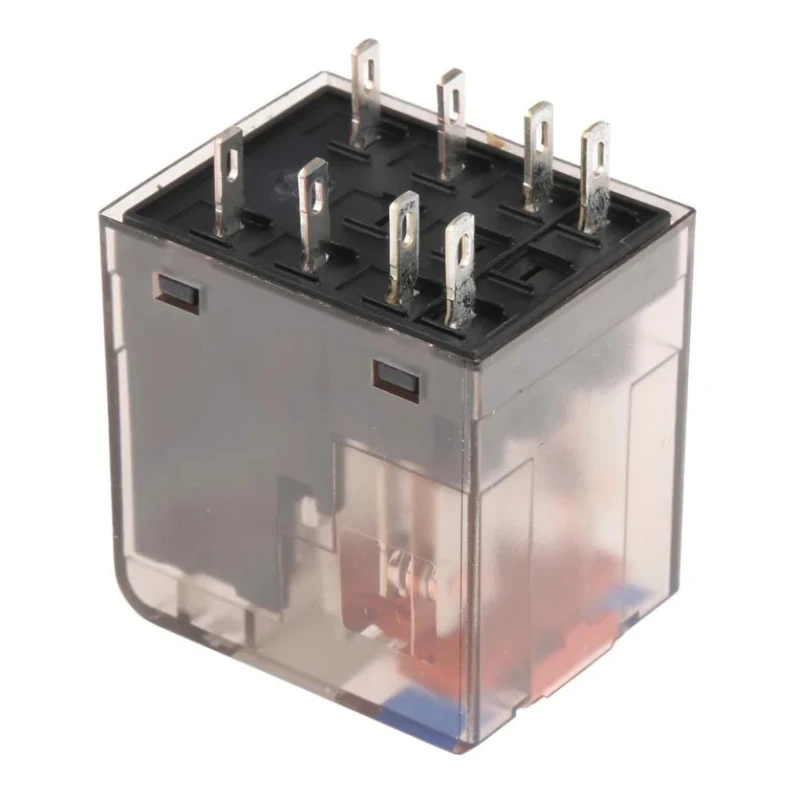

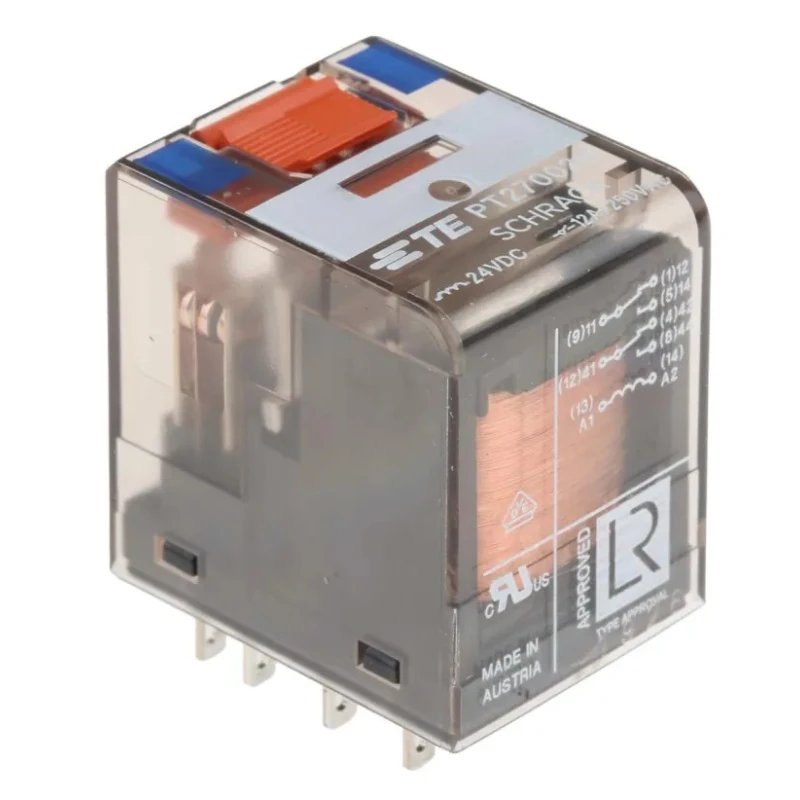

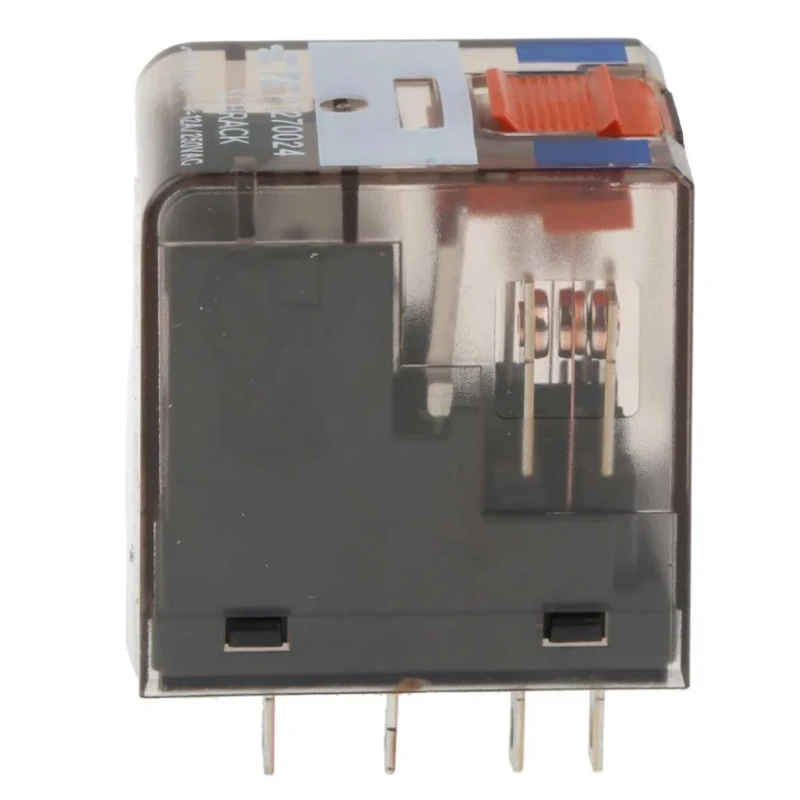

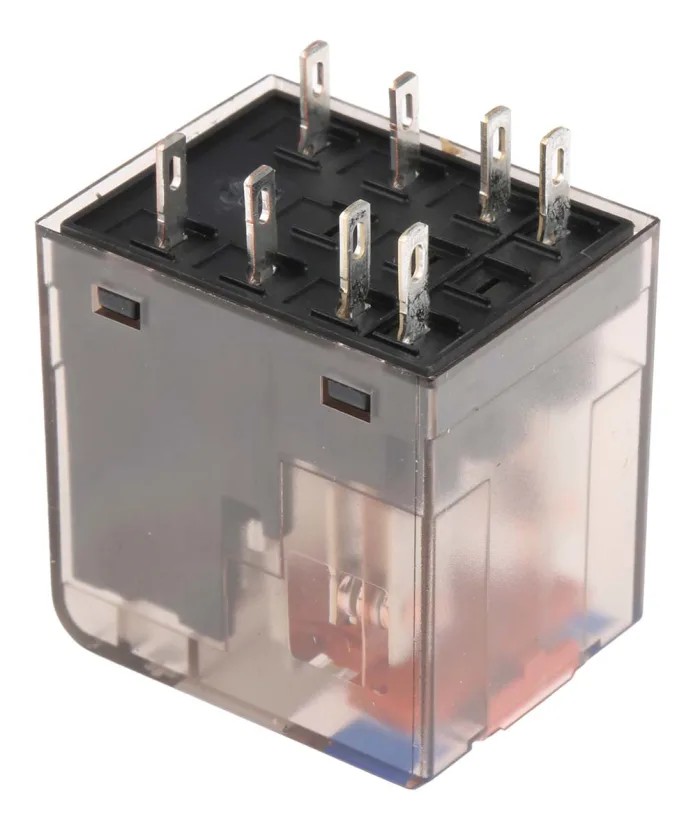

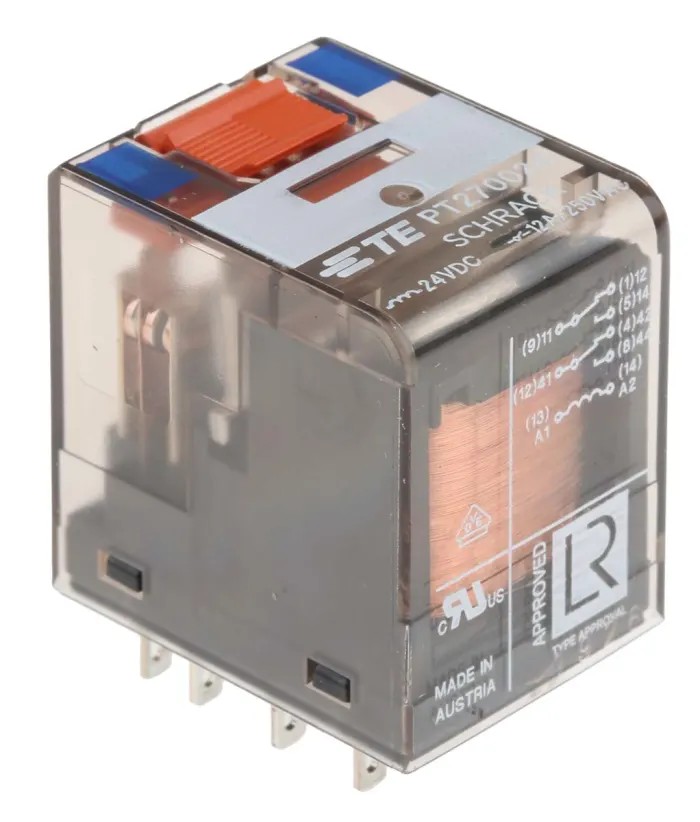

TE Connectivity PCB Power Relay 24V DC Coil 12A Switching Current DPDT PT270024 4-1419111-2
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT270024 4-1419111-2 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Quick Connect |
| Standards/Approvals | IEC, RoHS, VDE, UL |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Isolation Coil To Contact | 2.5kV(ac) |
Key Features
- This power relay is designed for PCB mounting with quick connect terminals.
- It supports a switching AC voltage up to 400V AC for versatile electrical applications.
- The relay operates reliably within a temperature range from -40°C to 70°C.
- Coil resistance is specified at 777 ohms ensuring stable operation.
- Made with silver nickel alloy contacts for durability and low contact resistance.
- Features mechanical and LED indicators for easy status monitoring.
- This relay complies with IEC, RoHS, VDE, and UL standards.
- Designed for industrial automation, electrical control, and signal conditioning uses.
Product Description
TE Connectivity PT270024 4-1419111-2 is a PCB Power Relay with a 24V DC coil voltage and capable of switching 12A current. It features a DPDT (Double Pole Double Throw) contact configuration, making it suitable for diverse control and automation needs in electrical and industrial applications.
The relay supports a maximum switching AC voltage of 400V AC and operates efficiently within the temperature range of -40°C to 70°C. Coil resistance of 777 ohms offers stable coil operation. Its silver nickel alloy contacts provide excellent conductivity and long-lasting performance.
The PT series relay includes mechanical and LED indicators for immediate visual status feedback. It is designed for PCB mounting with quick connect terminals facilitating easy installation. The device offers 2.5kV AC isolation between coil and contacts, ensuring safe operation in demanding environments.

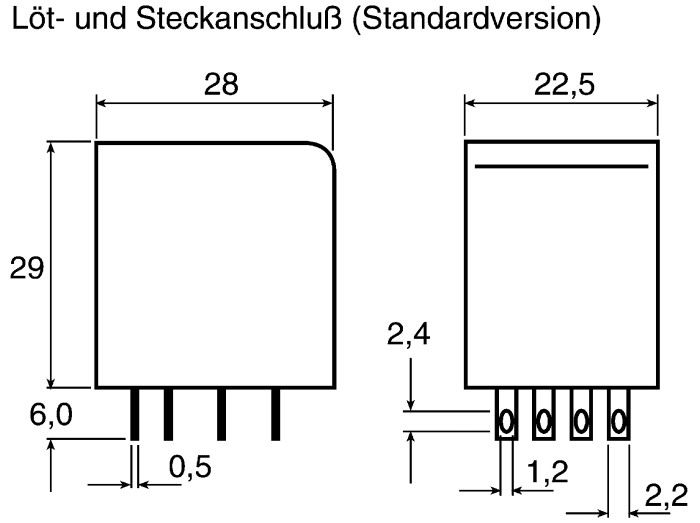

With approvals from IEC, RoHS, VDE, and UL, this relay adheres to international quality and safety standards. Its compact dimensions measure 22.5mm width, 28mm length, and 35mm height, suitable for various PCB designs.
Ideal for applications in industrial machines, automation systems, electrical panels, HVAC controls, and manufacturing equipment, the TE Connectivity PT270024 4-1419111-2 relay enhances reliability and control precision.
This power relay is designed for PCB mounting with quick connect terminals. It supports a switching AC voltage up to 400V AC for versatile electrical applications. The relay operates reliably within a temperature range from -40°C to 70°C.
Coil resistance is specified at 777 ohms ensuring stable operation. Made with silver nickel alloy contacts for durability and low contact resistance. Features mechanical and LED indicators for easy status monitoring. This relay complies with IEC, RoHS, VDE, and UL standards.
Designed for industrial automation, electrical control, and signal conditioning uses. Explore more Power Relay solutions and related electrical components on EnvMart's Electronics & Electricals category for advanced industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 12A, making it suitable for various electrical applications.
This model operates with a coil voltage of 24V DC.
The maximum switching AC voltage supported by this relay is 400V AC.
The dimensions of the relay are 22.5mm in width, 28mm in length, and 35mm in height.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is specified at 777 ohms, ensuring stable operation.
The contacts are made of silver nickel alloy, which provides low contact resistance and durability.
The relay operates reliably within a temperature range from -40°C to 70°C.
Yes, it features mechanical and LED indicators for easy status monitoring.
This relay complies with IEC, RoHS, VDE, and UL standards.
It is designed for PCB mounting and features quick connect terminals for easy installation.
The relay provides 2.5kV AC isolation between the coil and contacts, ensuring safe operation.
