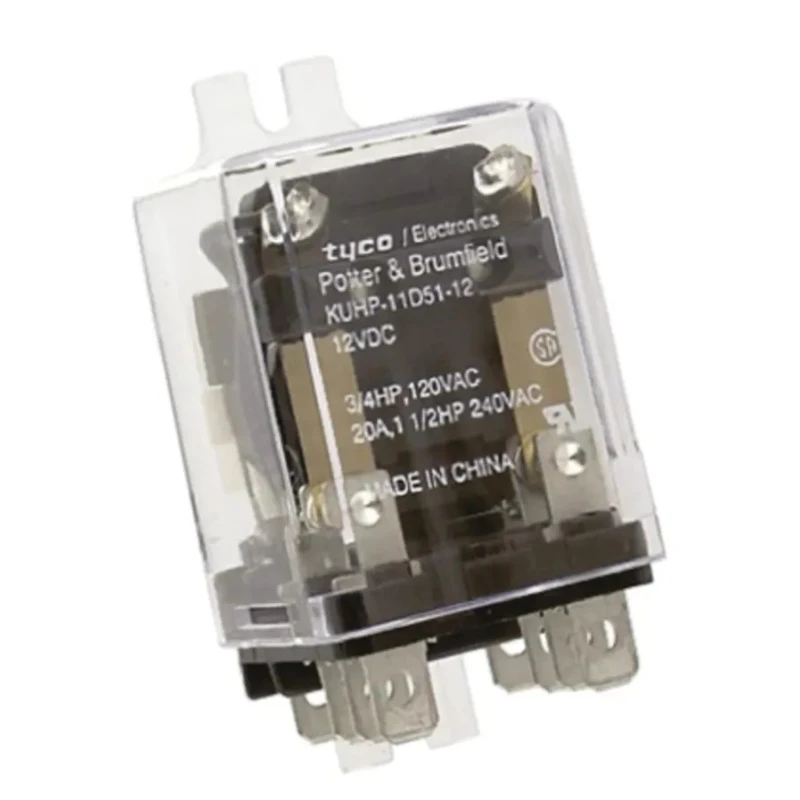

TE Connectivity Panel Power Relay 12V DC Coil 20A Switching Current DPDT KUHP-11D51-12 7-1393114-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 38.9mm |
| Length | 73.7mm |
| Model | KUHP-11D51-12 7-1393114-7 |
| Width | 35.7mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | KUHP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 20A |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, UR, UL |
| Coil Resistance | 120Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
| Switching Power | 1.2W |
Key Features
- The relay is designed for panel mounting applications.
- It has quick connect terminal type for easy installation.
- Operation temperature ranges from -45°C to 70°C.
- Contains silver alloy contacts with 1.2W coil power.
- Measures 73.7 mm in length, 38.9 mm in height, and 35.7 mm in width.
- It meets CSA, UR, and UL standards and approvals.
- Coil resistance is 120 ohms, ensuring reliable electrical performance.
Product Description
TE Connectivity KUHP-11D51-12 7-1393114-7 is a panel power relay designed for robust electrical switching applications. It operates with a 12V DC coil voltage and supports a switching current of 20 amps, making it suitable for various industrial and automation control systems.
Its DPDT (Double Pole Double Throw) contact configuration allows flexible control of multiple circuits. The relay is engineered for panel mounting, featuring quick connect terminals and slotted flanges for easy bracket installation to a chassis.
This relay series is enclosed and supports a 30A switching capability with Class B coil insulation, meeting VDE space requirements. It is constructed with silver alloy contacts to ensure efficient conductivity and long operational life.
The operating temperature range is from -45°C to 70°C, allowing use in diverse environmental conditions. The relay dimensions are compact with a length of 73.7 mm, height of 38.9 mm, and width of 35.7 mm, suitable for space-constrained applications.
Certified by CSA, UR, and UL standards, this relay complies with international safety and quality requirements, ideal for industrial automation, electrical panel systems, and control applications.
The relay is designed for panel mounting applications. It has quick connect terminal type for easy installation. Operation temperature ranges from -45°C to 70°C. Contains silver alloy contacts with 1.2W coil power. Measures 73.7 mm in length, 38.9 mm in height, and 35.7 mm in width.
It meets CSA, UR, and UL standards and approvals. Coil resistance is 120 ohms, ensuring reliable electrical performance.
This TE Connectivity panel Power Relay is ideal for industrial, automation, construction, and manufacturing electrical applications requiring reliable switching performance and compliance with recognized standards. Explore more specialized relays and electrical components in the EnvMart catalog for your technical and industrial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 20 amps, making it suitable for various industrial and automation control systems.
The relay operates with a coil voltage of 12V DC.
It measures 73.7 mm in length, 38.9 mm in height, and 35.7 mm in width, making it compact for space-constrained applications.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing flexible control of multiple circuits.
The operating temperature range is from -45°C to 70°C, allowing use in diverse environmental conditions.
The contacts are made of silver alloy, which ensures efficient conductivity and long operational life.
It has quick connect terminals, facilitating easy installation.
This model complies with CSA, UR, and UL standards, ensuring it meets recognized safety and quality requirements.
The coil resistance is 120 ohms, which contributes to its reliable electrical performance.
Both the coil power and switching power are rated at 1.2W.
Yes, this relay is specifically designed for panel mounting applications, featuring slotted flanges for easy bracket installation.
The relay is manufactured in India.
