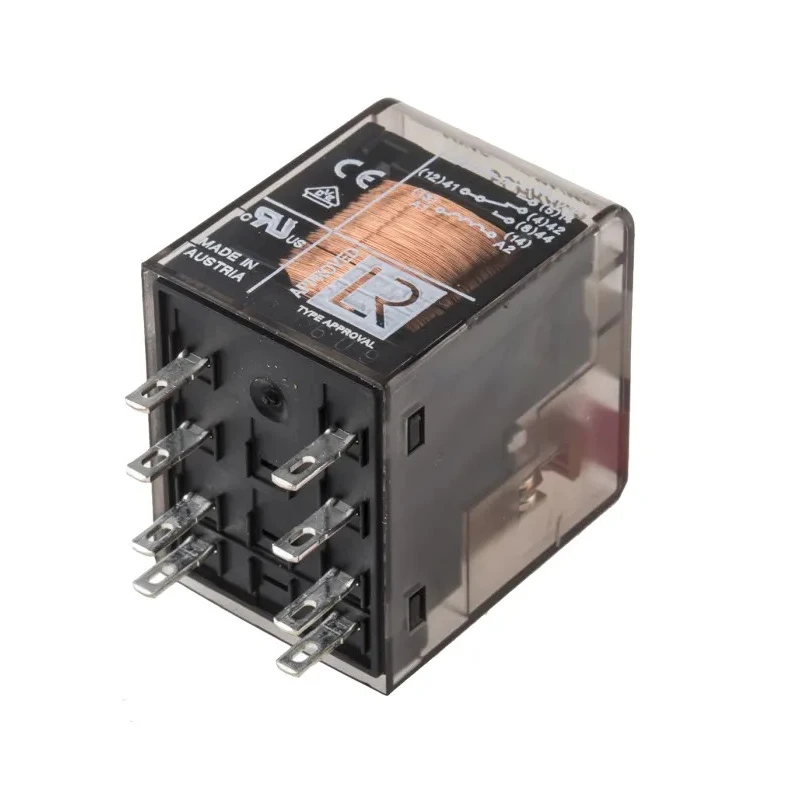

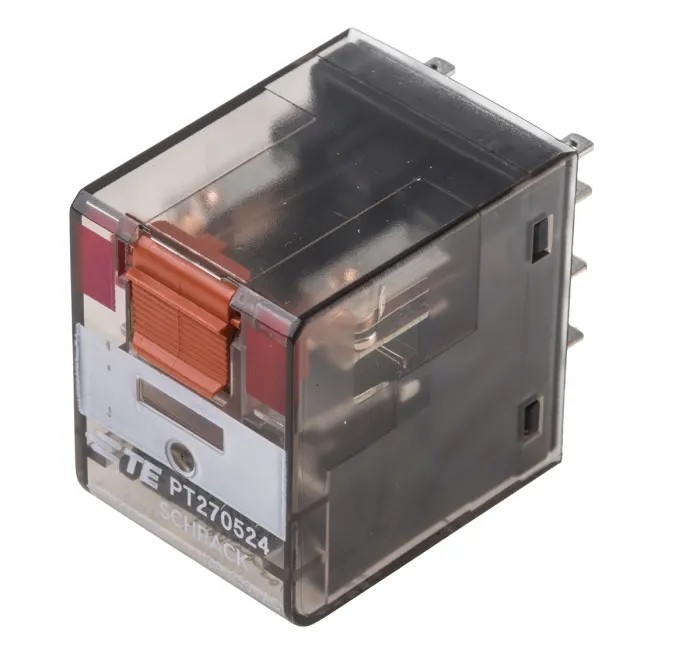

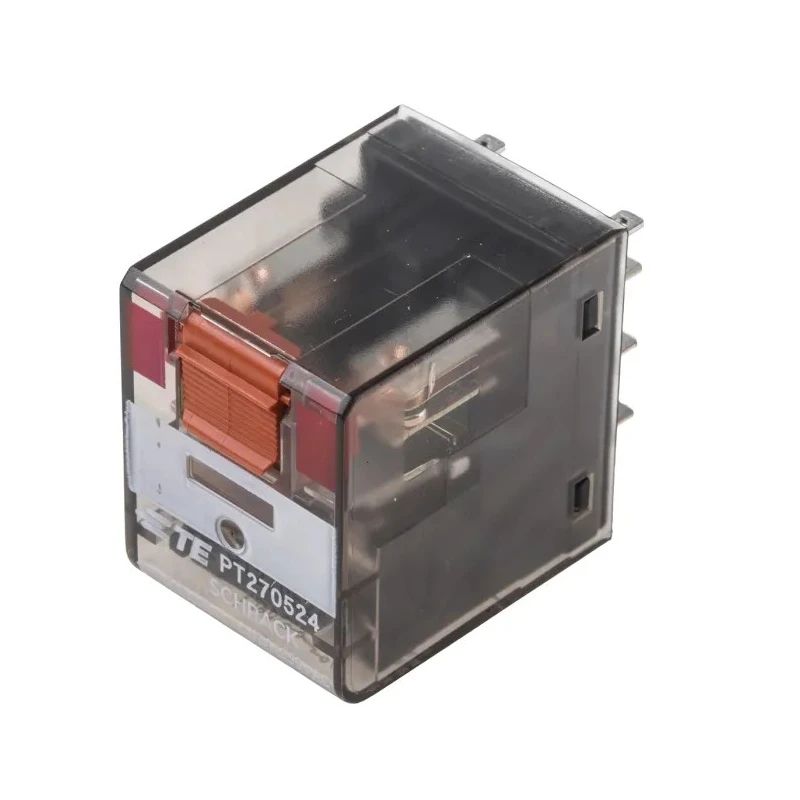

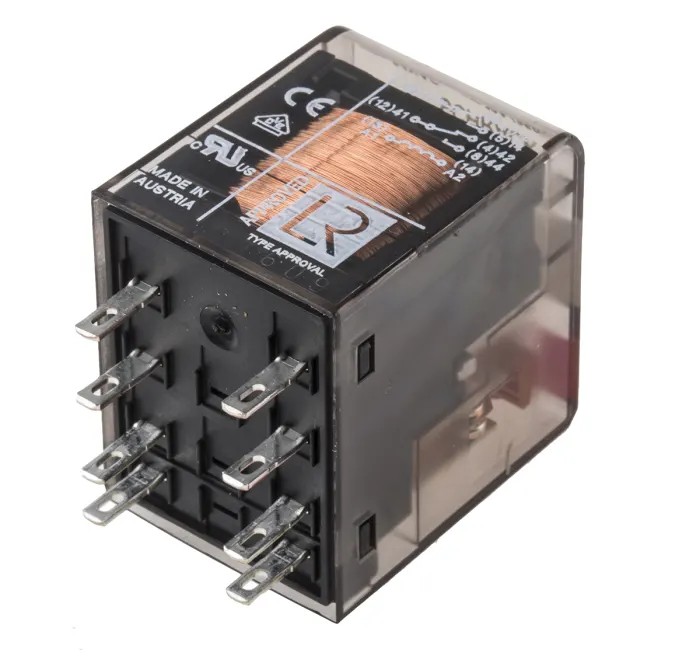

TE Connectivity PCB Power Relay 24V AC Coil 12A Switching Current DPDT PT270524 4-1419111-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT270524 4-1419111-8 |
| Width | 28mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS, UL, IEC, VDE |
| Coil Resistance | 192Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 400V ac |
| Isolation Coil To Contact | 2.5kV(ac) |
Key Features
- Operates with a coil voltage of 24V AC for efficient switching.
- Double Pole Double Throw (DPDT) contact configuration ensures versatile control.
- Switching current capability of 12A supports medium power loads.
- Compact dimensions of 28mm length, 28mm width, and 35mm height.
- Constructed with silver nickel alloy contacts for durability and performance.
- Coil resistance of 192 ohms provides stable electrical characteristics.
- Supports switching AC voltage up to 400V AC for industrial applications.
- Wide operating temperature range from -40°C to 70°C ensures reliability in harsh environments.
Product Description
TE Connectivity PT270524 4-1419111-8 PCB Power Relay is engineered for precise electrical switching in industrial and commercial applications. The relay features a coil voltage of 24V AC and supports a switching current of 12A with a DPDT (Double Pole Double Throw) contact configuration, making it suitable for controlling multiple circuits.
This relay is designed specifically for PCB mounting, enabling compact integration in printed circuit boards with quick connect terminals to simplify installation and maintenance. Its silver nickel alloy contacts ensure long-term durability and stable electrical performance.
The relay operates reliably across a wide temperature range from -40°C to 70°C, accommodating harsh environmental conditions common in automation, control systems, and manufacturing equipment.
The coil resistance of 192 ohms facilitates efficient coil operation, while the relay supports switching AC voltages up to 400V AC and switching power of 3kVA. It includes isolation between the coil and contacts rated at 2.5kV AC, ensuring strong electrical separation and safety.

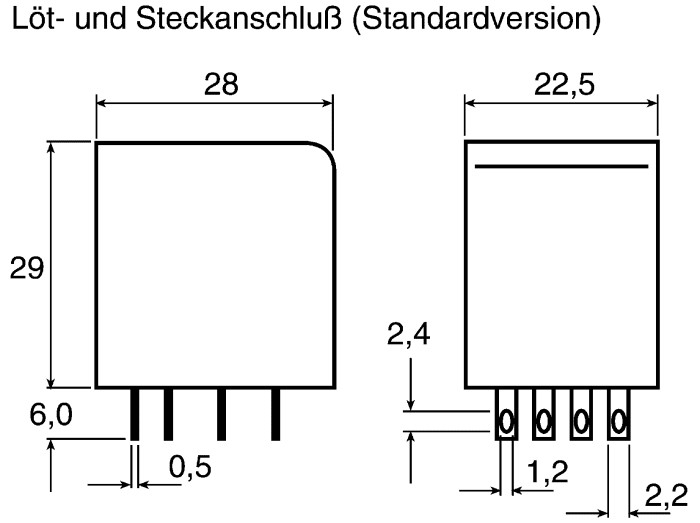

Compliant with industry standards including RoHS, UL, IEC, and VDE, this Power Relay meets rigorous quality and environmental requirements. Its compact dimensions (28mm length, 28mm width, 35mm height) allow for effective space utilization in control panels and electronic assemblies.
The PT series includes mechanical indicators and optional LED indicators to provide visual status on relay operation. This model also supports manual lockable test facilities, enhancing testing and troubleshooting procedures.
Ideal for applications in electrical automation, signal conditioning, HVAC systems, industrial machinery control, and power management, the TE Connectivity PT270524 4-1419111-8 relay delivers robust electrical switching performance and reliable operation over a broad range of industrial environments.
Explore EnvMart's extensive selection of relays and power control devices to find compatible components for your industrial and automation needs. Operates with a coil voltage of 24V AC for efficient switching. Double Pole Double Throw (DPDT) contact configuration ensures versatile control.
Switching current capability of 12A supports medium power loads. Compact dimensions of 28mm length, 28mm width, and 35mm height. Constructed with silver nickel alloy contacts for durability and performance. Coil resistance of 192 ohms provides stable electrical characteristics.
Supports switching AC voltage up to 400V AC for industrial applications. Wide operating temperature range from -40°C to 70°C ensures reliability in harsh environments. Features quick connect terminals for easy and fast installation.
Meets RoHS, UL, IEC, and VDE standards for quality and safety compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this power relay is 24V AC, allowing for efficient switching in various applications.
This model can handle a maximum switching current of 12A, making it suitable for medium power loads.
The relay features a Double Pole Double Throw (DPDT) contact configuration, enabling versatile control over multiple circuits.
The relay has compact dimensions of 28mm in length, 28mm in width, and 35mm in height, facilitating easy integration into control panels.
This relay supports switching AC voltages up to 400V AC, suitable for various industrial applications.
The coil resistance of this model is 192 ohms, which provides stable electrical characteristics during operation.
The relay operates reliably across a wide temperature range from -40°C to 70°C, accommodating harsh environmental conditions.
The contacts of this relay are constructed from silver nickel alloy, ensuring durability and stable performance.
This power relay is designed for PCB mounting, which allows for compact integration in printed circuit boards.
The relay complies with several industry standards, including RoHS, UL, IEC, and VDE, ensuring quality and safety compliance.
Yes, the relay features isolation between the coil and contacts rated at 2.5kV AC, ensuring strong electrical separation and safety.
This model uses quick connect terminals, which simplify installation and maintenance processes.
