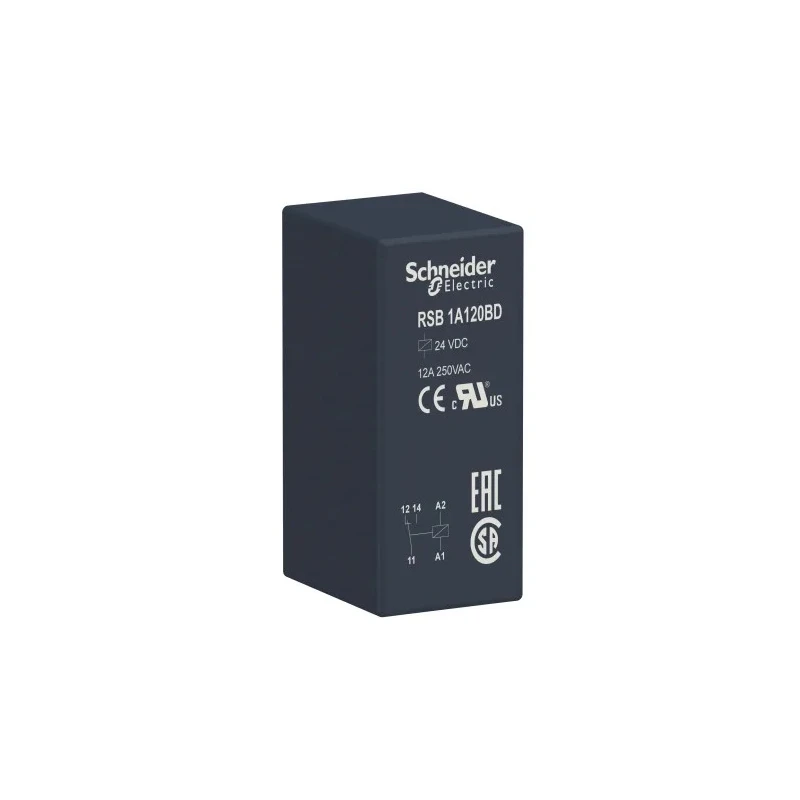

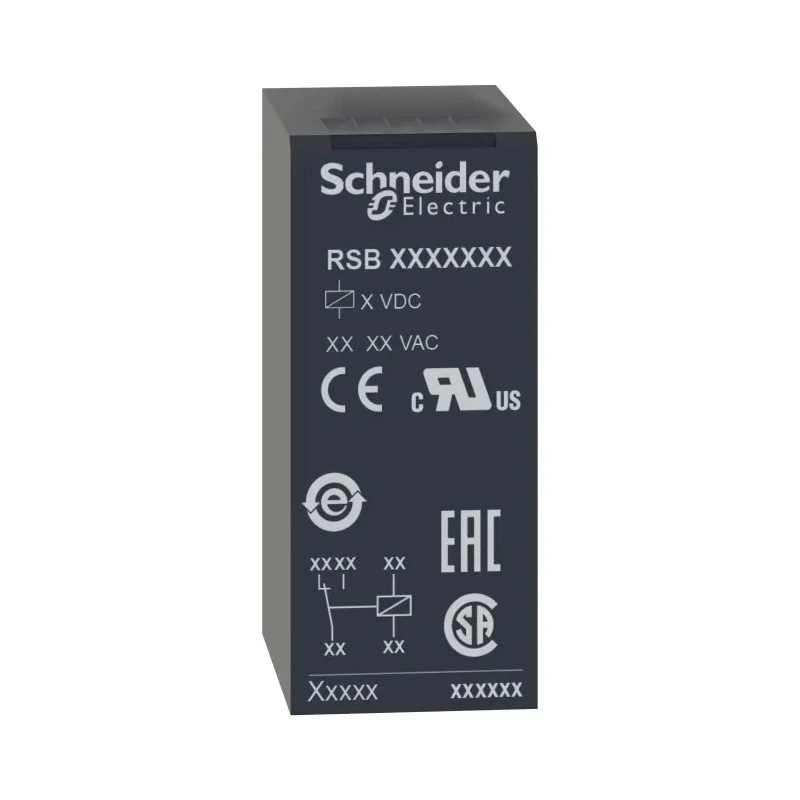

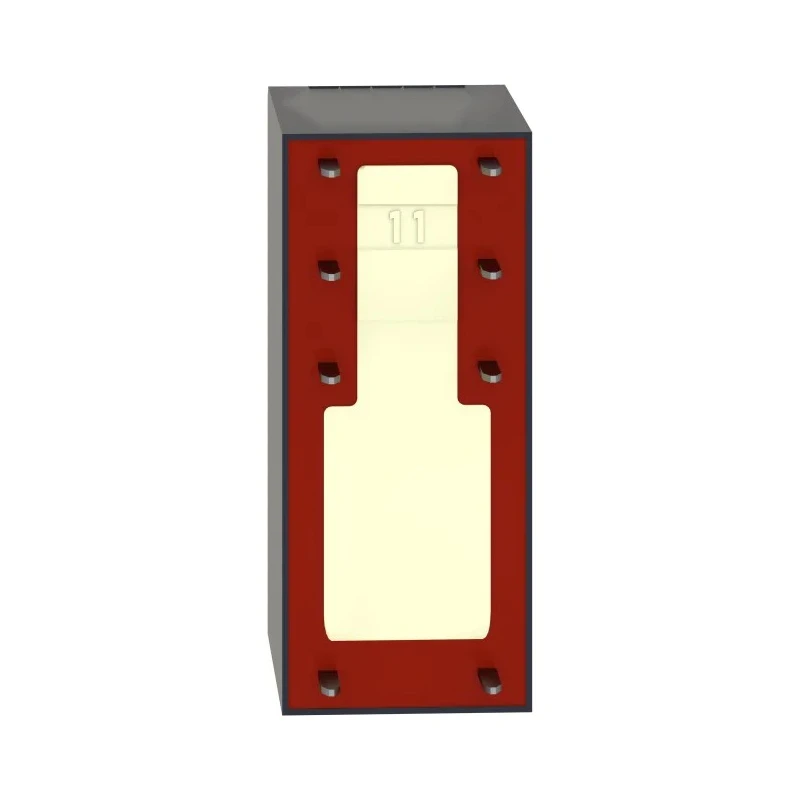

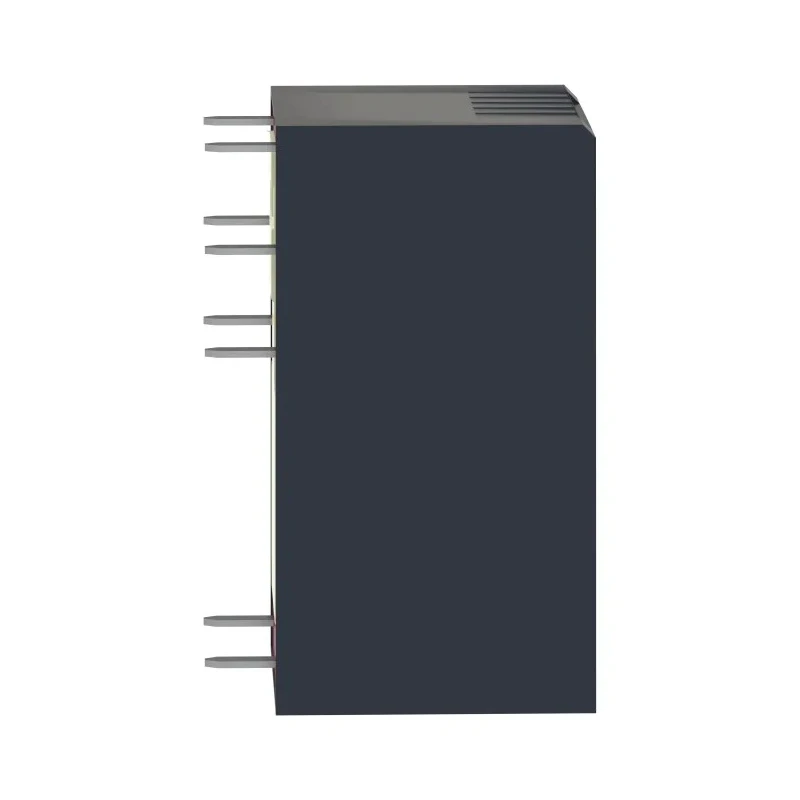

Schneider Electric Power Relay PCB Mount 24V DC Coil 12A Switching Current 1 CO RSB1A120BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 15.7mm |
| Length | 29mm |
| Model | RSB1A120BD |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | Harmony Relay RSB |
| Contact Configuration | 1 CO |
| Switching Current | 12A |
| Terminal type | Through Hole |
| Standards/Approvals | UL, EN, CSA |
| Coil Voltage | 24V dc |
| Better World Claim | Designed for Disassembly |
Key Features
- This power relay supports a maximum switching current of 12 A for reliable performance.
- It features a compact design with dimensions of 29mm length, 15.7mm height, and 12.5mm width.
- The relay uses silver alloy contacts to ensure durable and efficient conductivity.
- Designed for through hole PCB mounting for secure and easy integration.
- Operates effectively within the temperature range of -40 °C to +70 °C.
- Meets industry standards including UL, EN, and CSA approvals.
- Suitable for relay control in automation, electrical, and mechanical equipment.
- Commonly used in high current circuit protection and DC motor controlling applications.
Product Description
Schneider Electric RSB1A120BD Power Relay is a high-performance PCB mount relay featuring a 24V DC coil voltage and capable of switching currents up to 12A with a single contact configuration (1CO). Its compact dimensions of 29mm length, 15.7mm height, and 12.5mm width make it ideal for space-constrained PCB installations. This relay incorporates silver alloy contact material to enhance conductivity, reduce oxidation, and improve durability over extended use.
Designed to operate reliably in harsh environments, it supports a temperature range from -40 °C to +70 °C, ensuring stable performance even under varied ambient conditions. The through hole terminal type ensures secure connectivity on printed circuit boards, simplifying installation and replacement.
Complying with international standards such as IEC/EN 61810-1, UL 508, and CSA C22-2 No. 14, the RSB1A120BD model offers certified reliability for critical applications. Its robust 12A switching capacity makes it suitable for automation system relay controls, electrical and mechanical equipment, circuit protection systems, and DC motor controls.
This relay is also recognized as a Better World product, designed for disassembly to support sustainability and environmentally responsible manufacturing. This power relay supports a maximum switching current of 12 A for reliable performance.
It features a compact design with precise PCB mounting through hole terminals. Silver alloy contacts provide enhanced durability and conductivity. Operating temperature range from -40 °C to +70 °C ensures broad application suitability.
Compliance with UL, EN, and CSA ensures safety and quality standards. Ideal for automation system relay controls and circuit protection applications. Designed for disassembly to support sustainable product lifecycle management.
This Schneider Electric power relay is an essential component for industrial, electrical, automation, manufacturing, and HVAC systems requiring durable and reliable PCB mounted relays.
Explore more Power Relays and related electrical components at EnvMart to enhance your project’s performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this power relay is 12 A.
This relay has dimensions of 29mm in length, 15.7mm in height, and 12.5mm in width.
The coil voltage for this model is 24V DC.
It is designed for PCB mounting with through hole terminals.
The relay operates effectively within a temperature range of -40 °C to +70 °C.
This relay meets industry standards including UL, EN, and CSA approvals.
The contact configuration of this relay is 1 CO (single contact).
The relay incorporates silver alloy contacts to enhance conductivity and reduce oxidation.
It is commonly used in automation system relay controls, electrical and mechanical equipment, circuit protection systems, and DC motor controls.
The series name of this power relay is Harmony Relay RSB.
Yes, it is designed for disassembly to support sustainability and environmentally responsible manufacturing.
This relay features a through hole terminal type for secure connectivity on printed circuit boards.
