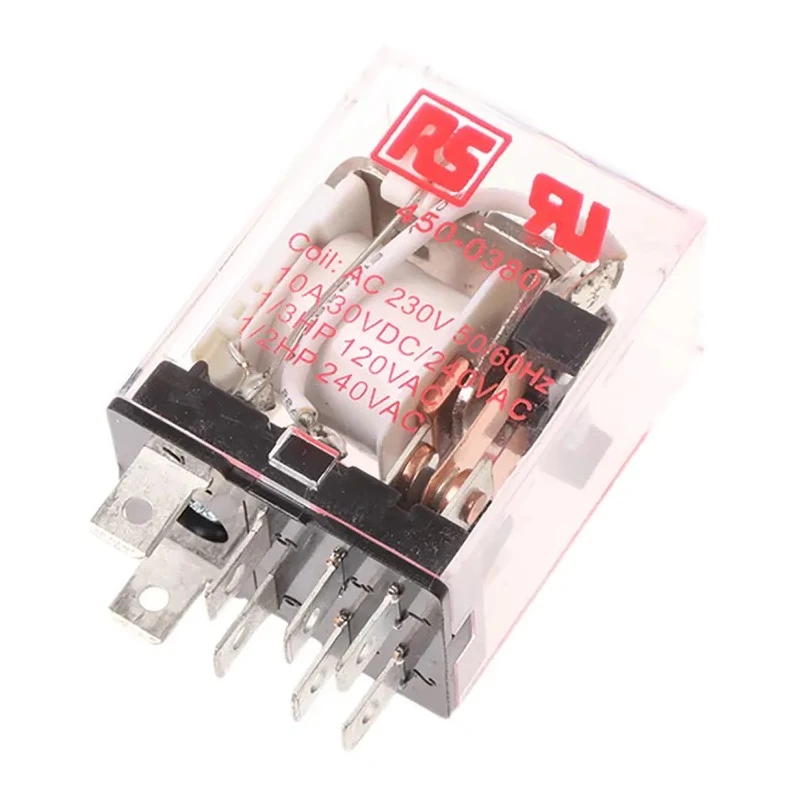

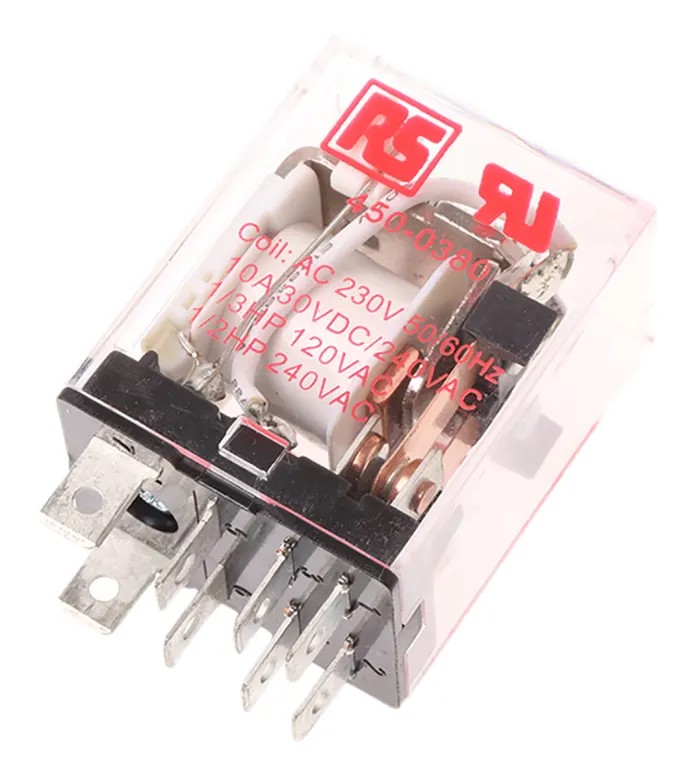

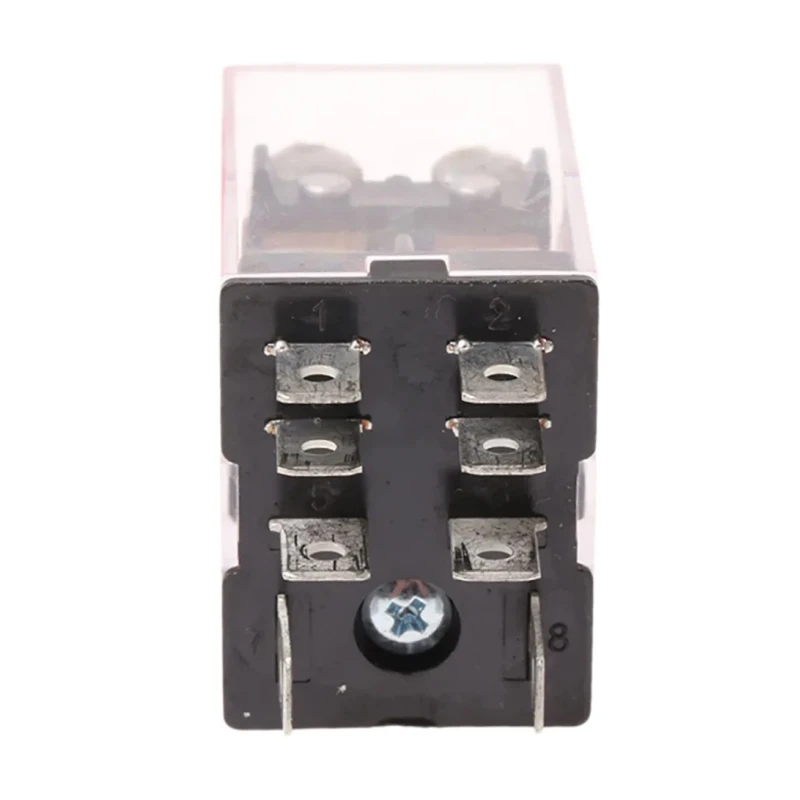

RS PRO Plug-in Power Relay 230V AC Coil 10A Switching Current DPDT 450-0380
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 36mm |
| Length | 28mm |
| Model | 450-0380 |
| Width | 21.5mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | CE, UL, EN |
| Mechanical Life | 10 million operations |
| Coil Resistance | 12.5kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
| Electrical Life | 100000 operations |
| DPCO LED indicator relay,10A 230Vac coilBrand | NEUTRAL |
Key Features
- Coil voltage is rated at 230V AC ensuring compatibility with standard electrical systems.
- Switching current capacity of 10A supports heavy-duty electrical loads.
- Plug-in mount type with PCB pin terminals provides easy installation on printed circuit boards.
- Durable silver alloy contacts with low maximum contact resistance of 50mΩ ensure reliable electrical performance.
- Operational temperature range from -45°C to 55°C allows use in varied environmental conditions.
- Mechanical life expectancy of up to 10 million operations and electrical life of 100,000 operations guarantees long-term reliability.
- Compact dimensions with length 28mm, width 21.5mm, and height 36mm fit standard relay spaces.
- Coil resistance of 12.5kΩ and coil power consumption of 1.2W deliver efficient energy usage.
Product Description
RS PRO 450-0380 Plug-in Power Relay is engineered for reliable switching performance in industrial, electrical automation, and control applications. Featuring a 230V AC coil, this DPDT relay supports a switching current of 10A and switching power up to 2.4kVA, suitable for controlling moderate power loads.
The relay's plug-in mounting and PCB pin terminal type enable straightforward integration into printed circuit board assemblies, enhancing serviceability and installation convenience. Contact materials utilize silver alloy, ensuring excellent conductivity and durability, with a maximum contact resistance of 50mΩ to minimize signal loss.
Designed to withstand harsh operating environments, the relay functions efficiently across a broad temperature spectrum from -45°C to 55°C. Its robust construction supports a mechanical lifespan of up to 10 million operations and an electrical lifespan of 100,000 operations, making it a dependable component for long-term industrial deployment.
Compact in size, with precise dimensions of 28mm length, 21.5mm width, and 36mm height, the relay fits within standard spaces and design layouts. The coil characteristics include a resistance of 12.5kΩ and a power consumption of 1.2W, providing energy-efficient operation.
This RS PRO relay meets stringent international standards including CE, UL, and EN certifications, ensuring compliance with global safety and quality benchmarks. Its manufacturing origin is Taiwan, Province Of China, denoting adherence to high-quality manufacturing processes.
The product is ideal for use in industrial controls, automation systems, electrical panels, HVAC equipment, and other commercial electrical installations requiring reliable relay switching solutions.
Explore EnvMart’s comprehensive range of power relays and contactors to find compatible components for your application needs. Coil voltage rated at 230V AC. 10A switching current with DPDT configuration. Plug-in mount and PCB pin terminals for easy installation.
Silver alloy contacts with low 50mΩ max contact resistance. Wide operating temperature: -45°C to 55°C. Purchase genuine RS PRO Power Relays on EnvMart for assured quality and performance in technical and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is rated at 230V AC, ensuring compatibility with standard electrical systems.
This model supports a maximum switching current of 10A, suitable for heavy-duty electrical loads.
It features a plug-in mount type with PCB pin terminals, allowing for easy installation on printed circuit boards.
The contacts are made from silver alloy, which ensures reliable electrical performance with low maximum contact resistance.
The relay can operate efficiently within a temperature range of -45°C to 55°C, making it suitable for varied environmental conditions.
It has a mechanical life expectancy of up to 10 million operations, ensuring long-term reliability in applications.
The dimensions of this relay are 28mm in length, 21.5mm in width, and 36mm in height, allowing it to fit within standard relay spaces.
The coil resistance is 12.5kΩ and the coil power consumption is 1.2W, providing efficient energy usage.
This relay meets several international standards including CE, UL, and EN certifications, ensuring compliance with global safety and quality benchmarks.
The electrical life expectancy of this relay is rated at 100,000 operations, indicating its reliability for switching applications.
It is suitable for use in industrial controls, automation systems, electrical panels, HVAC equipment, and other commercial electrical installations.
The maximum switching AC voltage for this relay is 240V AC, allowing it to control moderate power loads effectively.
