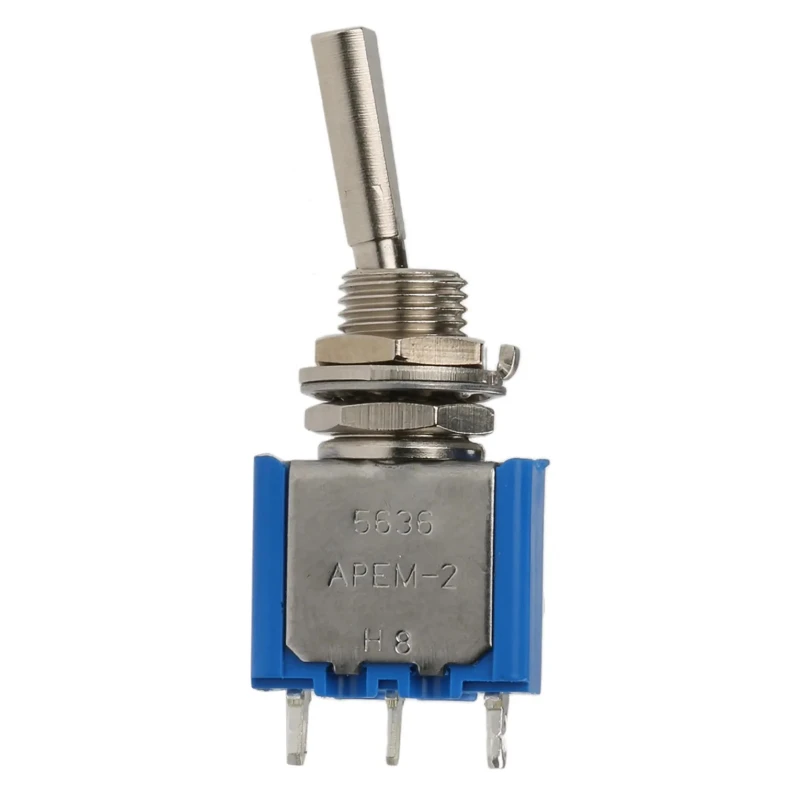

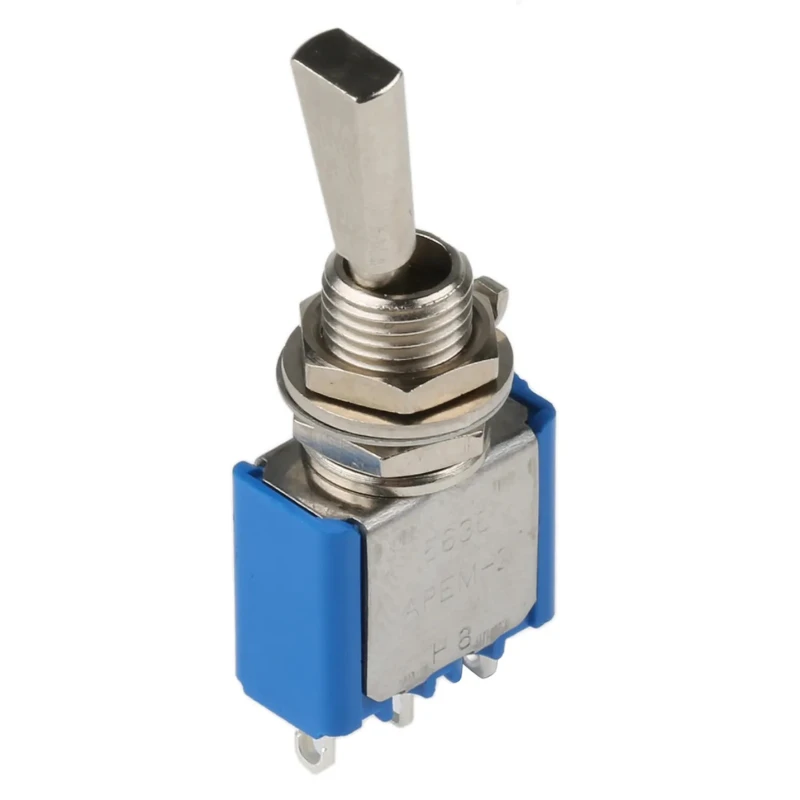

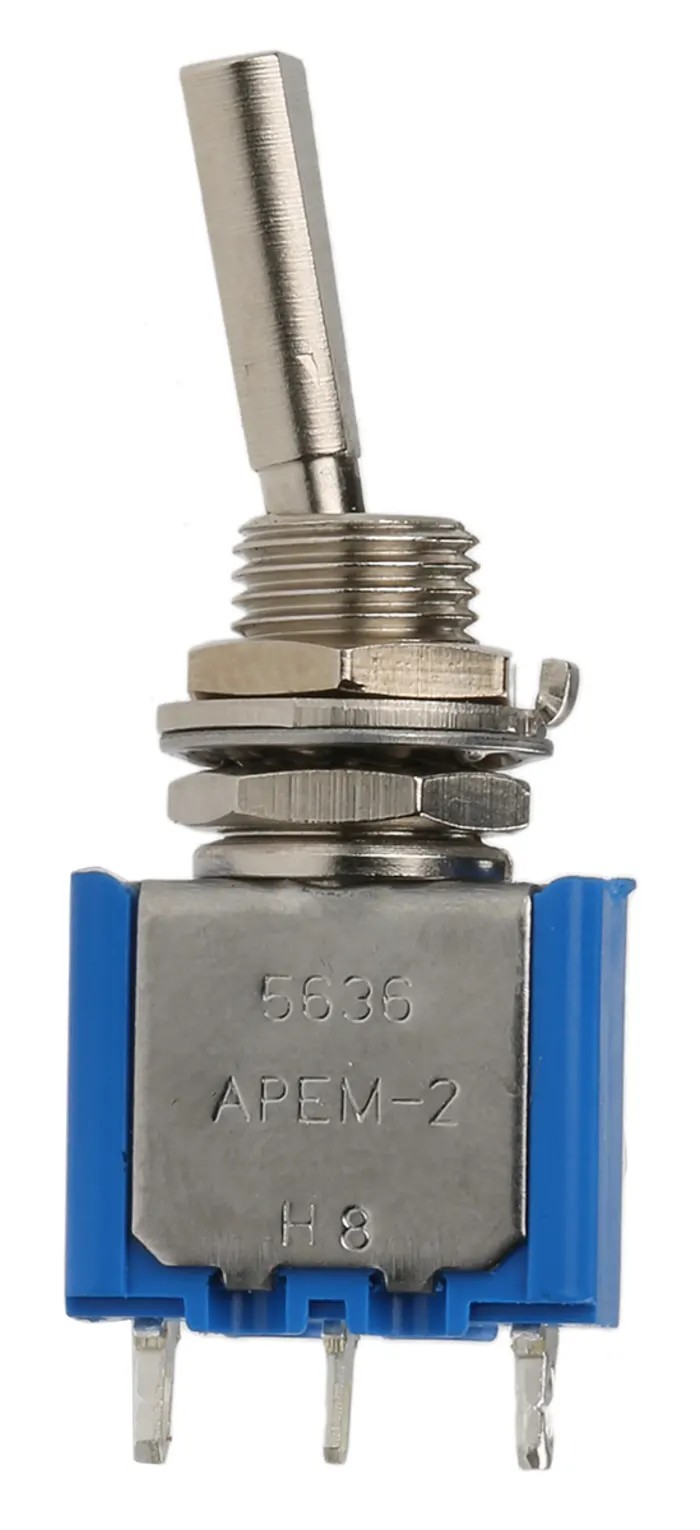

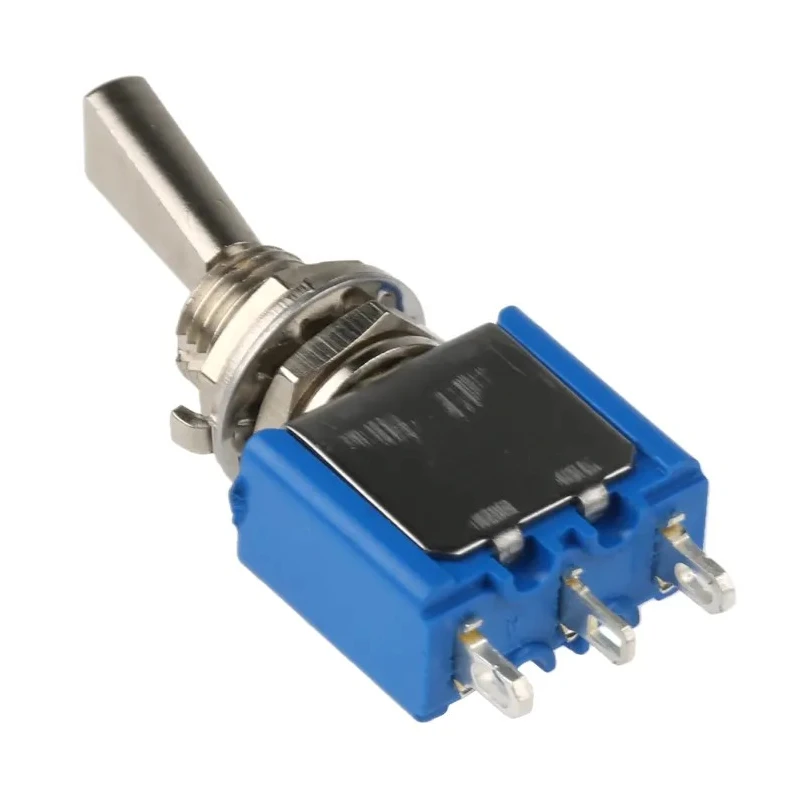

APEM Toggle Switch Panel Mount On-On SPDT Solder Terminal 30V dc 250V ac 5636A9

APEM 5636A9 Toggle Switch is a high-quality panel mount toggle switch designed for precise control in electrical and automation systems. Featuring a single-pole double-throw (SPDT) On-On operation, it allows users to switch between two circuits easily. The switch utilizes solder terminals for secure electrical connections and supports a contact current of 4A, making it suitable for medium power applications.

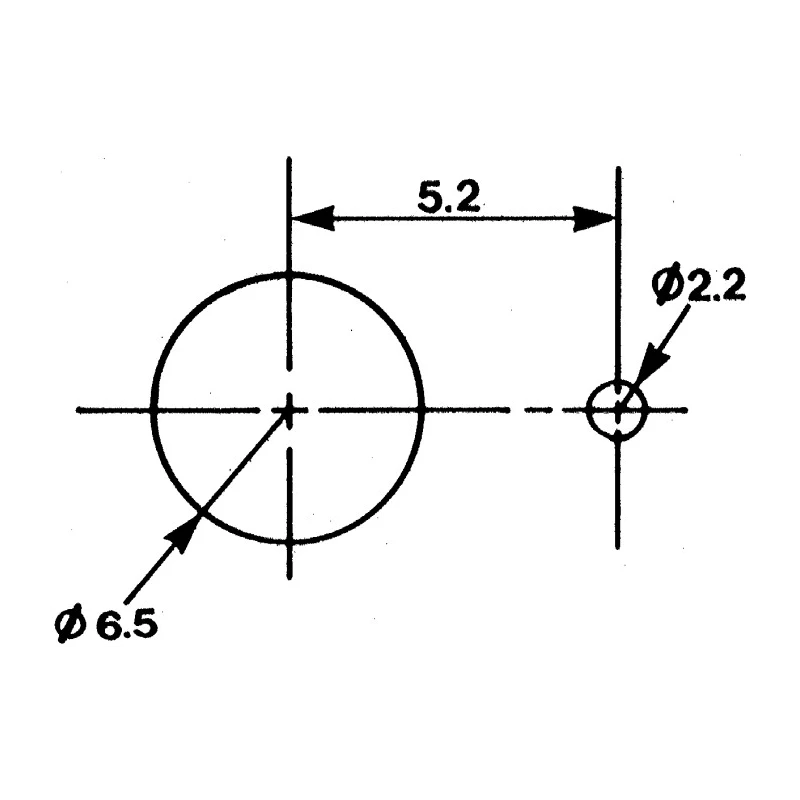

The toggle actuator is made of brass, providing durability and good tactile feel, while the switch body is constructed with Diallyl Phthalate for electrical insulation. The compact size with dimensions of 34.2 mm height, 13.2 mm length, and 7 mm width allows installation in limited spaces with a panel cutout size of 6.5 mm. It is designed for panel mounting using a 1/4 - 40UNS bush thread, ensuring stable installation.

This switch is engineered to operate reliably in temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial environments. The silver contacts provide excellent conductivity and corrosion resistance ensuring long-term electrical performance. Rated for 30 V dc and 250 V ac, it supports a variety of electrical signaling and switching tasks.

With a mechanical life expectancy of 100,000 operations, this toggle switch offers durability for demanding industrial and automation applications. It is compliant with UL, RoHS, CSA, and CECC standards, ensuring safety and quality. The switch is non-illuminated and designed to provide tactile feedback for operational certainty.

Common applications include use in industrial electrical panels, automation control systems, instrumentation, and other switching needs where reliable manual operation is required. The robust construction and approved certifications make this switch suitable for integration into manufacturing machinery, HVAC controls, and laboratory equipment.

This toggle switch supports a contact current of 4A. The switch operates with an On-On configuration and features a brass actuator. Panel cutout size is 6.5 mm, with actuator length of 11.4 mm. It operates reliably between -40°C and 85°C.

The switch offers a mechanical life rating of 100,000 operations. The compact dimensions are 34.2 mm height, 13.2 mm length, and 7 mm width. Silver contacts ensure reliable electrical performance. Designed for panel mounting with a bush thread of 1/4 - 40UNS (6.35 - 4UNS).

Non-illuminated toggle switch suitable for various electrical and automation applications. Explore a wide range of industrial electrical components and Toggle Switches at EnvMart for precision and reliability in your electrical and automation projects.
