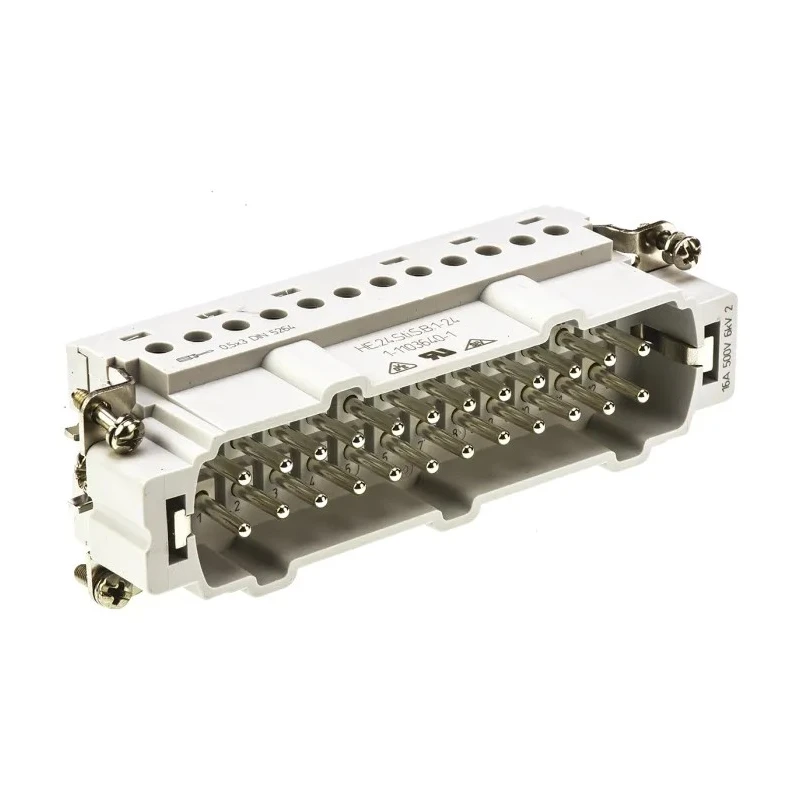

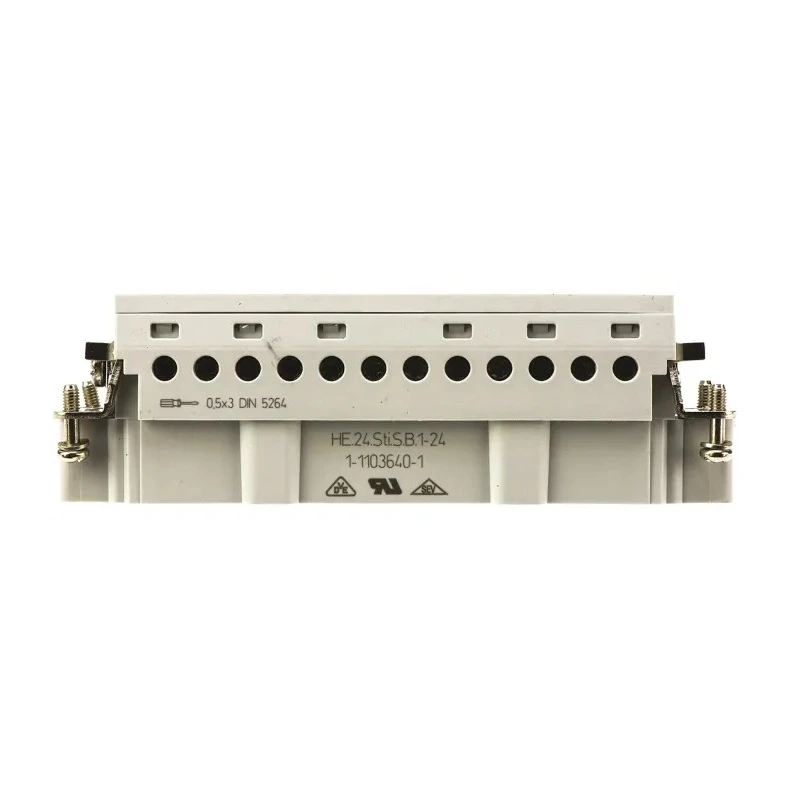

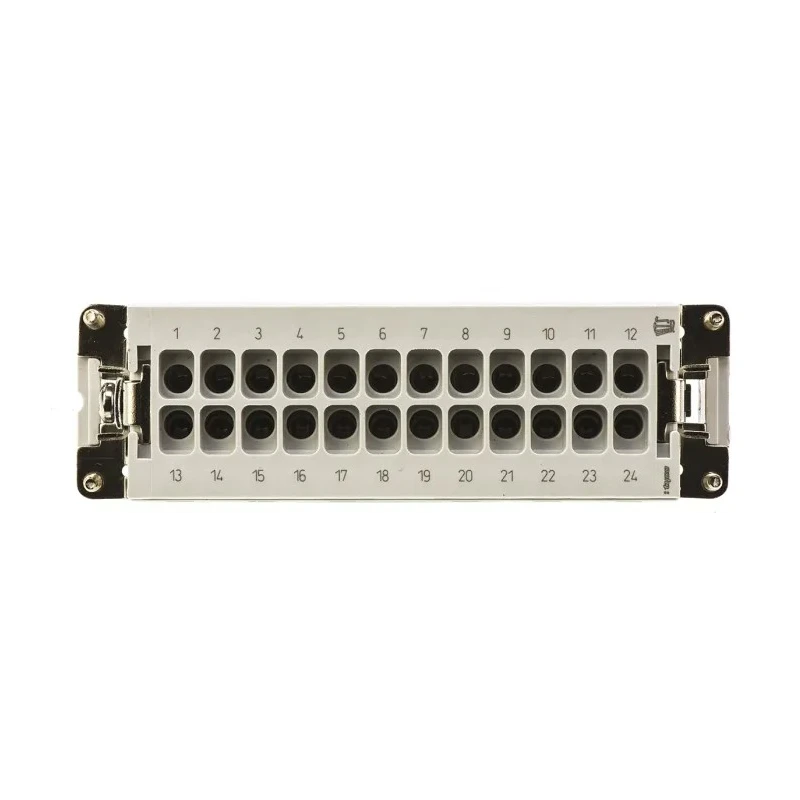

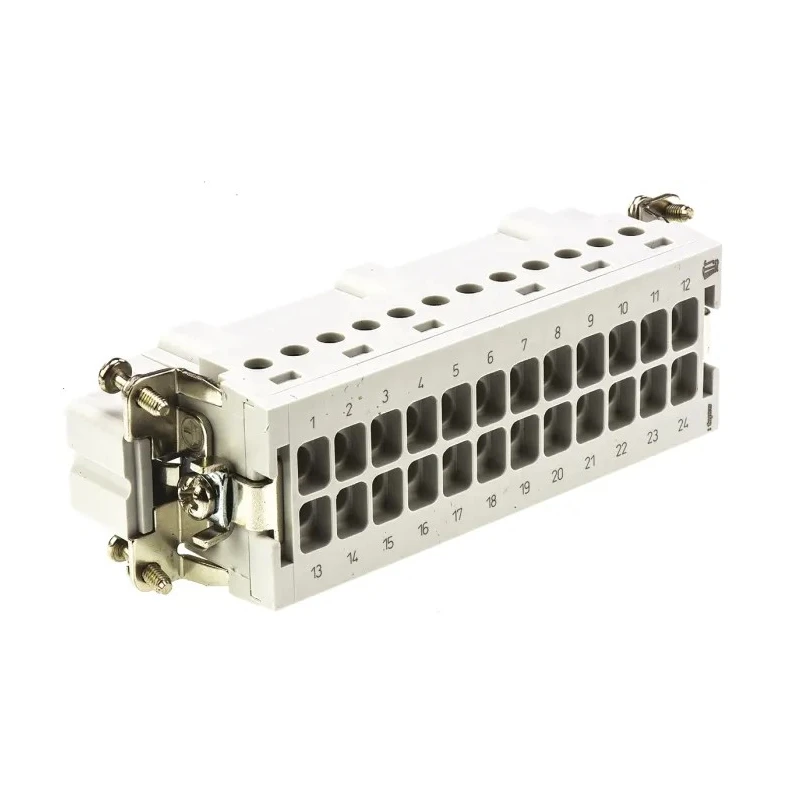

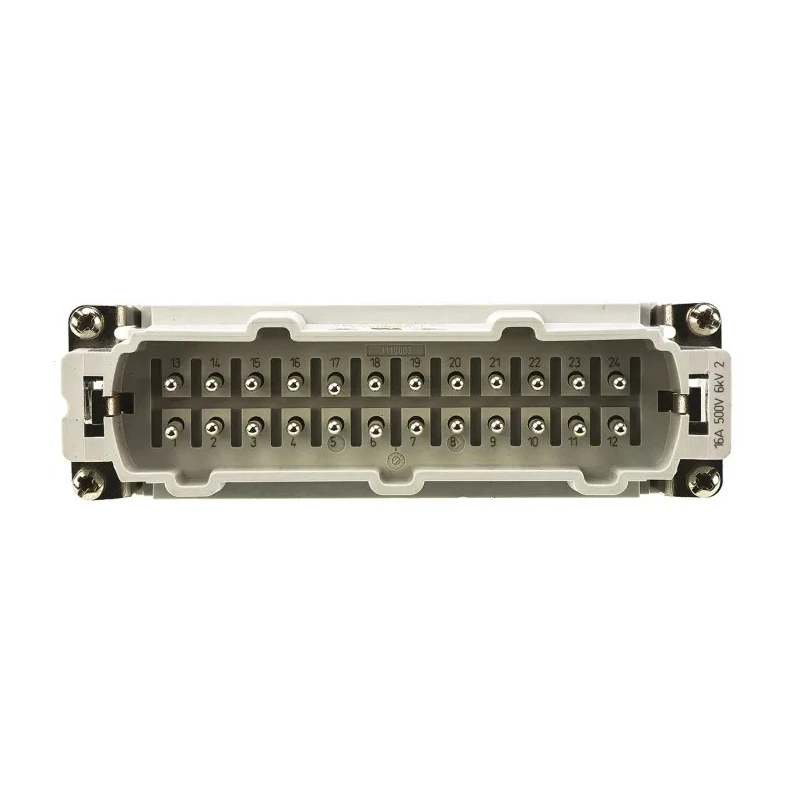

TE Connectivity Heavy Duty Power Connector Insert HE Series Male 24 Contacts 1-1103640-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Connector Insert |
| Contact Material | Polycarbonate |
| Series | HE |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24+E |
| Contact Plating | Silver, Gold |
| Number of Contacts | 24 |
| Connector Gender | Male |
Key Features
- Designed for use as a male connector insert in heavy duty power connectors.
- Part of the HE Series with a 24+E pole format and two rows of contacts.
- Contacts are not supplied; each insert includes a separate earth contact.
- Constructed with polycarbonate contact material plated in silver and gold for reliable conductivity.
- Fits cable hood or base housings in size 10 HE connectors.
- Suitable for industrial, electronic, and power connector applications requiring durable, high-quality inserts.
- Connector insert mounts straight with 24 contacts to provide secure connections.
- UL listed and CSA certified for safety and quality compliance.
Product Description
TE Connectivity 1-1103640-1 Heavy Duty Power Connector Insert is a male connector insert designed for use with heavy duty power connectors in industrial and electronic environments. This specific insert is part of the HE Series and features a 24 contact configuration plus an earth contact, arranged in two rows with a straight orientation. It is constructed from durable polycarbonate material with silver and gold contact plating, ensuring excellent electrical conductivity and resistance to wear.
The insert is designed to fit cable hood housings or base housings of size 10 HE connectors and is supplied without contacts to allow customization for specific wiring needs. For applications requiring 32 contacts, both the 1-16 pole and 17-32 pole inserts should be purchased to fit alongside each other in the connector housing.
This connector insert complies with safety standards, being UL listed and CSA certified, providing reliable performance in heavy-duty power applications. It is a preferred solution for manufacturing automation systems, power distribution units, and industrial electrical equipment.
Male connector insert for heavy duty power connectors. 24 contact points plus separate earth contact in a two-row layout. Polycarbonate contact material with silver and gold plating for conductivity. Compatible with cable hood and base housings of size 10 HE connectors.
Supplied without contacts; requires separate contacts for wiring. UL listed and CSA certified for industrial compliance. Suitable for heavy-duty electrical, electronic, and manufacturing applications. Fits alongside 1-16 and 17-32 pole inserts for 32-contact assemblies.
Explore additional TE Connectivity Heavy Duty Power Connector Inserts and modules for comprehensive industrial connectivity solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert features a 24 contact configuration plus an earth contact, arranged in two rows with a straight orientation.
It is constructed from polycarbonate material and features silver and gold plating for the contacts to ensure reliable conductivity.
Yes, it is UL listed and CSA certified, ensuring compliance with safety and quality standards for industrial applications.
It is suitable for heavy-duty electrical, electronic, and manufacturing applications, including use in power distribution units and manufacturing automation systems.
It is designed to fit cable hood or base housings of size 10 HE connectors and can be used alongside 1-16 and 17-32 pole inserts for 32-contact assemblies.
The orientation of this connector insert is straight, allowing for secure and straightforward connections.
This connector insert is a male connector insert, designed to be used in heavy duty power connectors.
No, the insert is supplied without contacts, allowing for customization based on specific wiring needs.
The pole format of this connector insert is 24+E, which includes 24 contacts plus a separate earth contact.
This connector insert has 2 rows for the arrangement of contacts.
The country of origin for this connector insert is India.
This connector insert utilizes a connector insert mount type, designed specifically for heavy duty power connectors.
