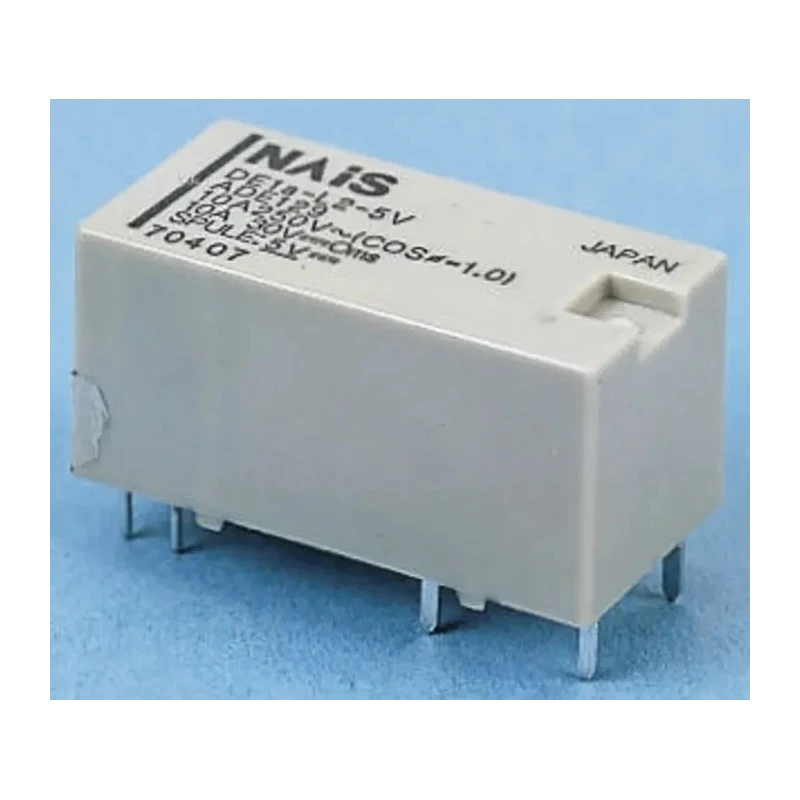

Panasonic PCB Power Relay 12V DC Coil 8A Switching Current SPST DE1AL212D

Panasonic DE1AL212D PCB Power Relay is a bistable 2-coil compact relay specifically designed for direct control of lighting strips and air conditioning systems. Operating with a 12V DC coil voltage and capable of switching currents up to 8A, this relay provides efficient and reliable power switching with SPST (single-pole single-throw) configuration.

The relay is optimized for PCB mounting with through-hole terminal types to facilitate robust connections in electronic circuits. Its compact size (25mm x 12.5mm x 12.5mm) and lightweight design make it suitable for dense electronic assemblies. The coil resistance of 720Ω ensures stable coil operation with a power rating of 4kW.

This relay guarantees galvanic separation between input and output, featuring an 8 mm leakage path and aerial distance that ensures safe cut-off, enhancing electrical isolation and safety in circuit designs. The linked contact mechanism prevents malfunctions, adding to the operational safety and reliability of the product.

With a wide operating temperature range from -40°C to 70°C, the Panasonic DE1AL212D is suitable for industrial, automation, HVAC, and electrical manufacturing applications. The silver alloy contacts ensure high conductivity and long life, making it ideal for switching AC voltages up to 440V and DC voltages up to 230V effectively.

Certified to multiple international standards including RoHS, IEC, CE, VDE, UL, and TUV, this relay meets rigorous quality and environmental compliance, making it a dependable choice for OEMs and system integrators requiring durable power relays.

Package contents include one Panasonic DE1AL212D PCB Power Relay ready for immediate integration into electronic and electrical control systems. Features a single-pole single-throw (SPST) contact configuration for straightforward on/off switching.

Equipped with a 12V DC coil voltage enabling compatibility with common low voltage power supply systems. Supports a switching current of up to 8 amperes suitable for medium-power electrical applications. PCB mount type with through-hole terminals ensures secure mechanical and electrical connections on circuit boards.

Compact dimensions of 25mm length, 12.5mm width, and 12.5mm height optimize space usage on PCB layouts. Explore more Power Relays and components for electronics and electrical applications at EnvMart.
