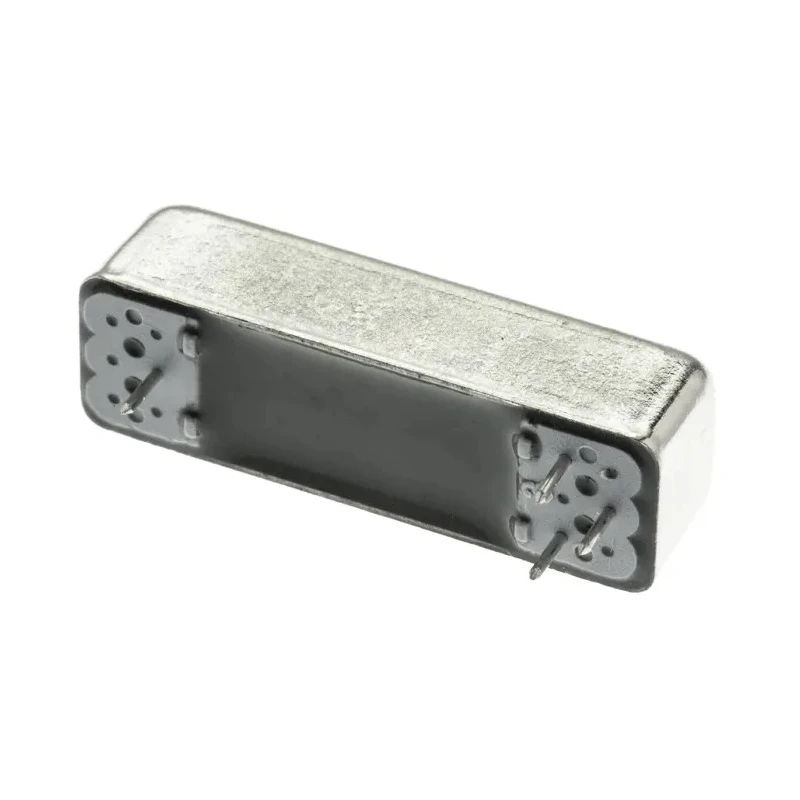

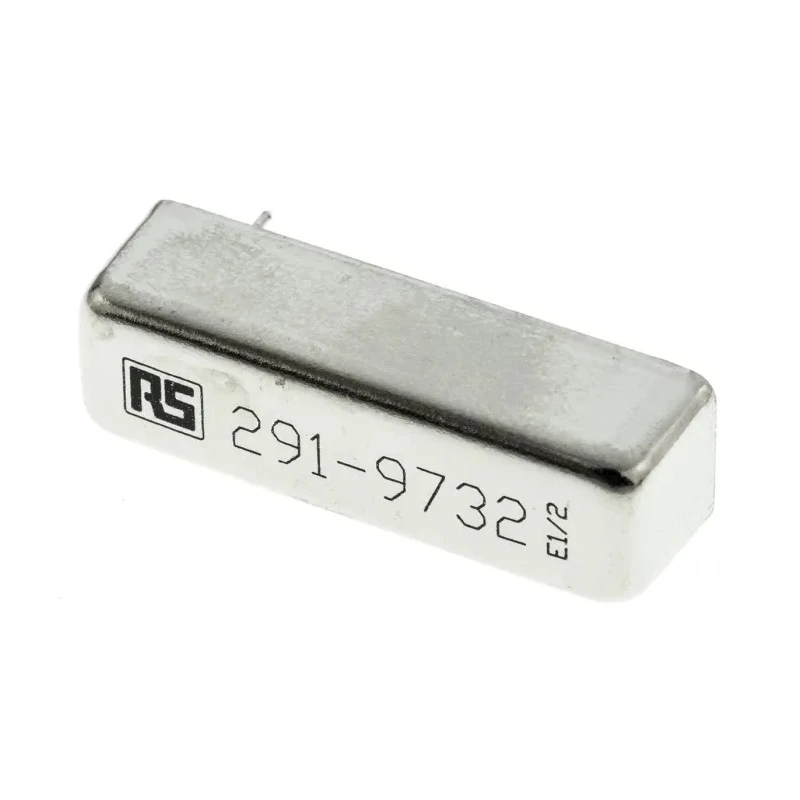

RS PRO PCB Reed Relay 24 V DC Coil SPST 200 V DC Max 1 A Max 7845 Ω 291-9732
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Height | 8.9mm |
| Length | 31.8mm |
| Model | 291-9732 |
| Operating Time | 0.5ms |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Contact Resistance | 150mΩ |
| Coil Resistance | 7845Ω |
| Coil Power | 73mW |
| Switching Power | 15W |
| Isolation Coil To Contact | 2kV dc |
| Meder Reed RelayBrand | Meder |
| METAL CASE REED RELAY 24VBrand | NEUTRAL |
| RS PRO PCB Reed Relay, 48V dc Coil, SPST, 200V dc Max, 1A Max, 12000 ΩBrand | RS PRO |
| Cynergy3 PCB Reed Relay, 24V dc Coil, SPST, 20V dc Max, 0.5A Max, 1000 ΩBrand | Sensata / Cynergy3 |
Key Features
- Coil power consumption is 73 mW for efficient operation.
- Coil resistance is precisely 7.845 kΩ ensuring consistent performance.
- SPST single pole normally open contact configuration suitable for switching applications.
- Maximum switching current rating is 1 ampere in both AC and DC.
- Hermetically sealed switch area prevents contamination and extends life.
- Operating temperature ranges from -20°C to 70°C for versatile use.
- Fast switching time with 0.5 ms operating time including bounce.
- Isolation voltage between coil and contact is 2 kV DC for safety.
Product Description
RS PRO 291-9732 PCB Reed Relay offers reliable and fast switching performance with a 24 V DC coil and SPST contact configuration. This device supports a maximum switching voltage of 200 V DC and maximum current of 1 A, making it suitable for various control and signal switching applications.
The relay coil consumes only 73 mW power and has a coil resistance of 7.845 kΩ, allowing for efficient electromagnetic operation. The electrode contacts are made from tin-plated copper alloy, ensuring minimal contact resistance of 150 mΩ and long reliability with a lifespan rated for up to 100 million cycles.
The relay features a hermetically sealed switch area that prevents dust and debris interference, enhancing longevity and consistent performance over time. Its isolation voltage of 2 kV DC between coil and contacts ensures safety against electrical shocks or interference.
This PCB mount relay is equipped with through-hole solder terminals for durable mechanical and electrical connection on printed circuit boards. It is designed to operate in environments from -20°C up to +70°C, with an operating time of just 0.5 ms including contact bounce, enabling rapid switching in control circuits.
Coil power 73 mW for energy efficient control. Contact configuration SPST normally open for standard control applications. Maximum switching power of 15 W DC allows moderate load switching. Compact dimensions: length 31.8 mm, height 8.9 mm, depth 9.4 mm fit standard PCB layouts.
Non-latching relay design ensures automatic reset after activation. Complies with RoHS standards for environmental safety and manufacture quality. Contact resistance of 150 mΩ provides low loss switching. Operating temperature from -20 to 70 degrees Celsius accommodates a variety of installations.
This RS PRO Reed Relay is ideal for industrial, automotive, HVAC, instrumentation, and electronic control panel applications where reliable and fast switching of circuits is essential. It provides excellent electrical isolation and long operational life for demanding environments.
Explore EnvMart categories for further industrial relays and precision control components for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage for this relay is 200 V DC.
The coil resistance of this model is precisely 7.845 kΩ.
It has a maximum current rating of 1 ampere for both AC and DC applications.
The coil power consumption is 73 mW, allowing for efficient operation.
This relay features an SPST (Single Pole Single Throw) normally open contact configuration.
The operating temperature range is from -20°C to 70°C.
The isolation voltage between the coil and contact is 2 kV DC.
The operating time for switching is 0.5 ms, including contact bounce.
The dimensions are 31.8 mm in length, 8.9 mm in height, and 9.4 mm in depth.
It is equipped with through-hole solder terminals for mounting on printed circuit boards.
The contact resistance is 150 mΩ, which ensures low loss switching.
This relay is suitable for industrial, automotive, HVAC, instrumentation, and electronic control panel applications.
