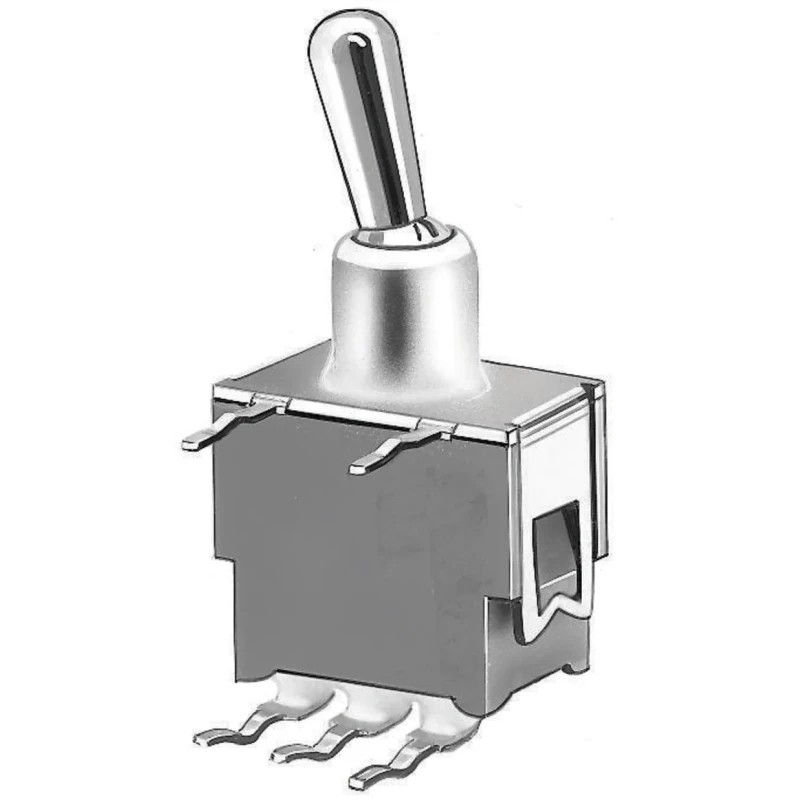

KNITTER-SWITCH Toggle Switch PCB Mount On-On SPDT 48 V dc 48 V ac Nickel Plated Brass Actuator ATE 1 F-RA
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 18mm |
| Length | 9mm |
| Model | ATE 1 F-RA |
| Width | 9mm |
| Mount Type | PCB |
| Series | ATE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT, DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 6mm |
| Contact DC Voltage | 48V dc |
| Switch Contact Current | 50mA |
| Mechanical Life | 60000Operations |
| Contact AC Voltage | 48V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- Single Pole Double Throw contact configuration with On-On switch operation.
- Designed for PCB mounting with through hole terminals for secure connections.
- Nickel plated brass actuator material ensures durability and corrosion resistance.
- Supports switching up to 50mA contact current at 48 V AC/DC.
- Compact size with 9mm length, 9mm width, and 18mm height.
- Mechanical life rated for 60000 operations providing long-term reliability.
- Operates reliably within temperature range of -20°C to 80°C.
- Complies with RoHS environmental standards.
Product Description
KNITTER-SWITCH ATE 1 F-RA Toggle Switch is a high-quality PCB mount switch designed for industrial and electrical automation applications. It features an On-On switch operation with a Single Pole Double Throw (SPDT) contact configuration, allowing reliable switching of circuits rated up to 48 V dc and 48 V ac.
The actuator is made from nickel plated brass, offering excellent durability and corrosion resistance. The switch is designed for through hole terminal mounting on printed circuit boards, enhancing ease of integration in automated systems and control panels.
Compact in size with dimensions 9mm (L) x 9mm (W) x 18mm (H), this Toggle Switch suits applications requiring small form factors. It supports a contact current of 50mA and can withstand mechanical operation cycles up to 60,000, ensuring long-term stability and performance in demanding environments.
This switch operates efficiently in a wide temperature range of -20°C to 80°C, making it versatile for various industrial, electrical, and automation scenarios. RoHS compliance ensures the product meets environmental and safety regulations.
Manufactured in China with attention to quality standards, the KNITTER-SWITCH ATE 1 F-RA is suitable for use in electronic devices, control systems, instrumentation, and industrial machinery requiring reliable manual switch operation.
Single Pole Double Throw (SPDT) contact configuration with On-On switch operation. PCB mount with through hole terminal type for secure placement. Nickel plated brass actuator material offers corrosion resistance. Contact voltage rating of 48 V AC/DC with 50mA current capacity.
Compact dimensions suitable for space-constrained applications. Mechanical life of 60,000 operations ensures durability. Wide operating temperature from -20°C to 80°C. RoHS certified for compliance and safety. Manufactured in China with quality control.
Explore the Electronics & Electricals category at EnvMart for a wide selection of switches and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration with On-On switch operation.
The dimensions of this toggle switch are 9mm in length, 9mm in width, and 18mm in height.
It operates efficiently within a maximum temperature of 80°C.
The switch supports a contact current of 50mA.
This unit is designed for PCB mounting with through hole terminals for secure connections.
The actuator is made from nickel plated brass, which provides corrosion resistance.
It has a mechanical life rated for 60,000 operations, ensuring long-term reliability.
The minimum operating temperature is -20°C.
Yes, it complies with RoHS environmental standards.
It supports contact voltage ratings of 48 V AC and 48 V DC.
This toggle switch is suitable for use in electronic devices, control systems, instrumentation, and industrial machinery requiring reliable manual switch operation.
This model is part of the ATE series of toggle switches.
