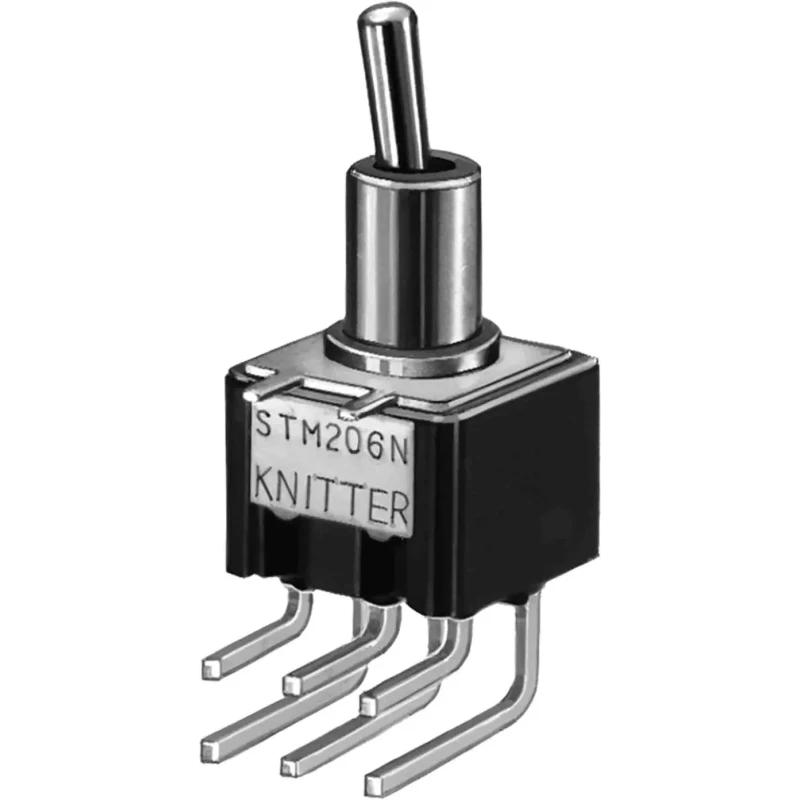

KNITTER-SWITCH Toggle Switch PCB Mount On-Off-On DPDT 4A 250V ac Chrome Plated Brass Actuator STM 206 P-RA
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 17mm |
| Model | STM 206 P-RA |
| Width | 15mm |
| Mount Type | PCB |
| Series | STM |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT, SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 6.8mm |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit control.
- On-Off-On switch operation provides three stable positions.
- Rated for a maximum contact current of 4A at 250V ac.
- Chrome plated brass actuator ensures durability and corrosion resistance.
- Through hole terminal type for secure PCB mounting.
- Actuator length of 6.8 mm suitable for compact design.
- Minimum operating temperature -20°C and maximum 80°C for wide environmental usability.
- Mechanical life rated at 100,000 operations for extended durability.
Product Description
KNITTER-SWITCH STM 206 P-RA is a miniature toggle switch designed for PCB mounting with On-Off-On operation and DPDT contact configuration rated at 4A and 250V AC. This switch features a chrome plated brass actuator and through hole terminals ensuring robust mechanical and electrical connection reliability.
The switch operates reliably within a temperature range of -20°C to 80°C, making it suitable for diverse electronic and electrical control applications. Its compact size with 15 mm width and 17 mm height fits easily into confined circuit board spaces.
The STM series toggle switches meet RoHS compliance, confirming environmentally safe construction without hazardous materials. The actuator length of 6.8 mm provides tactile feedback during operation, contributing to precise manual control.
The switch supports up to 100,000 mechanical operations, offering long service life in industrial, laboratory, HVAC, and general electrical equipment. Its double pole double throw mechanism allows simultaneous control of two circuits, beneficial for switching multiple loads or signal paths.
Typical applications include industrial control panels, automation systems, electronic instruments, and electrical equipment requiring reliable manual switching solutions. The high-quality build with chrome plated brass aids corrosion resistance and mechanical robustness.
DPDT contact configuration enabling flexible control. On-Off-On switch operation with three stable states. 4A contact current rating at 250V AC enabling medium power switching. PCB mounting with through hole terminals for secure installation.
Chrome plated brass actuator for durability and corrosion resistance. Wide operating temperature range: -20°C to 80°C. Compact size with dimensions 15 mm (width) x 17 mm (height). Mechanical lifespan of 100,000 operations ensuring extended reliability.
RoHS compliant for environmentally friendly construction. Ideal for industrial, automation, electrical, and laboratory use. Explore more Toggle Switches and electrical components in the Electronics & Electricals category on EnvMart for your industrial and technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
It is rated for a maximum contact current of 4A at 250V AC, suitable for medium power switching applications.
The switch has a width of 15 mm and a height of 17 mm, making it compact for PCB mounting.
It uses through hole terminals for secure PCB mounting, ensuring reliable mechanical and electrical connections.
The switch operates reliably within a temperature range of -20°C to 80°C, making it suitable for various environments.
It has a mechanical life rated for up to 100,000 operations, providing extended reliability in use.
The actuator is made of chrome plated brass, which enhances its durability and corrosion resistance.
Yes, the switch meets RoHS compliance, confirming it is constructed without hazardous materials.
The actuator length is 6.8 mm, providing tactile feedback during operation for precise manual control.
This toggle switch is suitable for applications in industrial control panels, automation systems, electronic instruments, and general electrical equipment.
It features an On-Off-On switch operation, providing three stable positions for circuit control.
This model belongs to the STM series of toggle switches, designed for PCB mounting and versatile applications.
